2.7.8. S/PDIF digital audio input and output

Some interface modules have standard RCA receptacles for digital coaxial audio inputs
and outputs.
Info: Plugs and sockets on consumer equipment are conventionally color-coded by CEA/CEDIA-
863-B (ANSI) to aid correct connections. According to the standard Lightware devices are
supplied with orange colored RCA connectors for S/PDIF signals.

2.7.9. IR connectors

IR Receiver and Transmitter are connected with TRS (Tip, Ring, and Sleeve) connectors.
They are also known as (3,5 mm or approx. 1/8") audio jack, phone jack, phone plug or
mini-jack plug.
1 Tip
2 Ring
3 Sleeve
Info: Transmitter's Ring pole is optional. If your IR Transmitter has three pole TRS plug, then the
Ring and the Sleeve are the same signal (Output - ).
2.7.10. RS-232 / RS-422 port
MODEX can be ordered with interface containing industry standard RS-232 and RS-422
9-pole D-SUB male connector.
Pin nr.
Section 2. Controls and connections
3
2
0
1
0
RCA receptacle

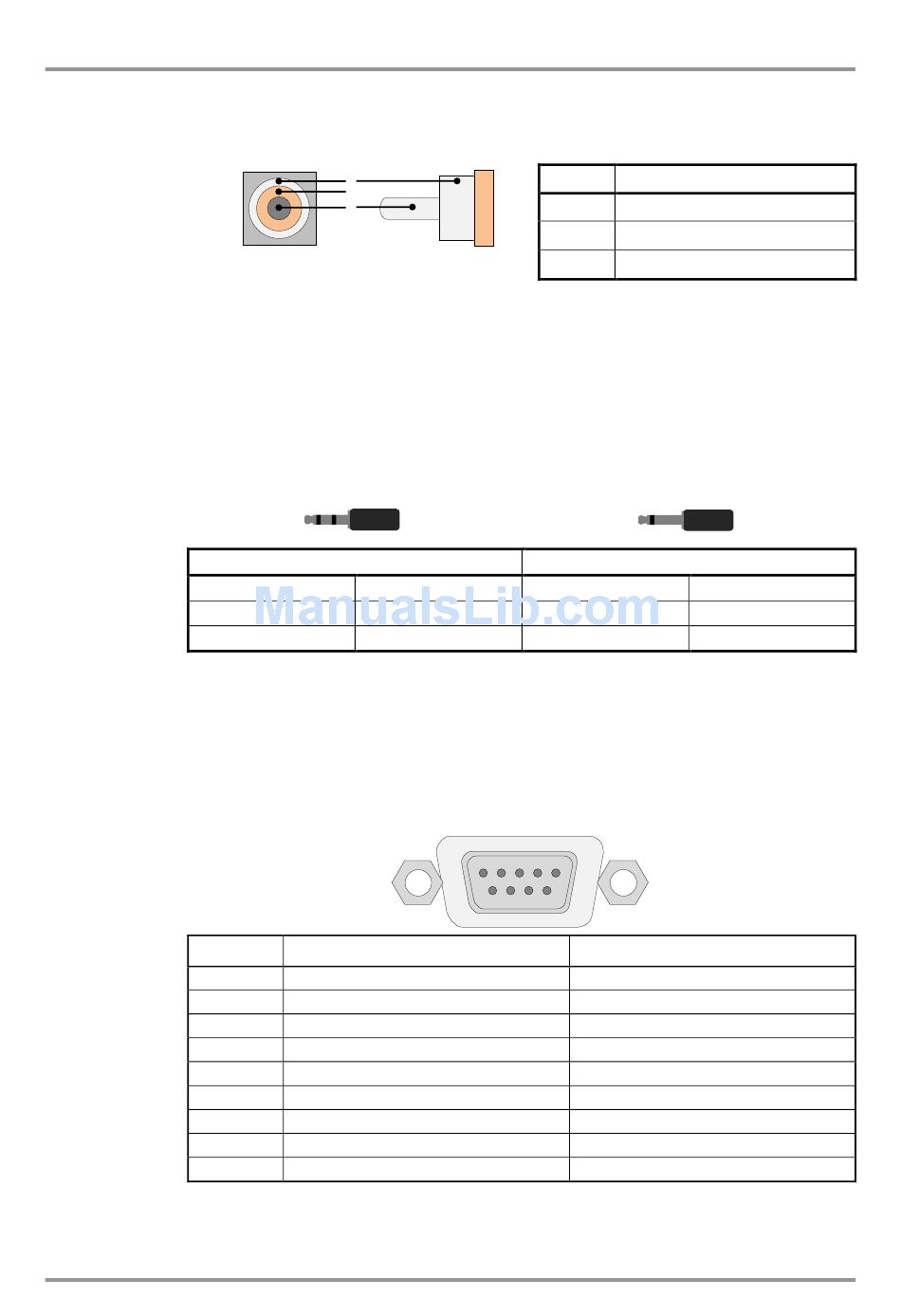

Figure 2-4. S/PDIF connector and pin assignments
1 2 3
Receiver – 3-pole-TRS
IR Input -
GND
IR Input +
Table 2-5. TRS connector pin assignment for supplied IR accessories
1 NC - not connected
2 RX data receive (input)
3 TX data transmit (output)
4 DTR (Internally connected to Pin 6)
5 GND signal ground (shield)
6 DSR (Internally connected to Pin 4)
7 RTS
8 CTS
9 NC - not connected
Table 2-6. D-SUB 9-pole-connector and pin assignments
Nr.
RCA plug
1 Tip
2 Ring
3 Sleeve
1 5
6 9
RS-232
MODEX-OPTS, MODEX-OPTM
User's Manual
Name
1 S/PDIF input or output
2 Plastic insulator
3 GND
1 3
Transmitter – 2-pole-TRS
IR Output +
IR Output -
IR Output -
RS-422
RX- data receive complement
RX+ data receive true
TX+ data transmit true
TX- data transmit complement
GND signal ground (shield)
DSR (Internally connected to Pin 4)
RTS
CTS
NC - not connected
Page 21 / 113
