Summary of Contents for Lightware DVI-TP-TX200DL

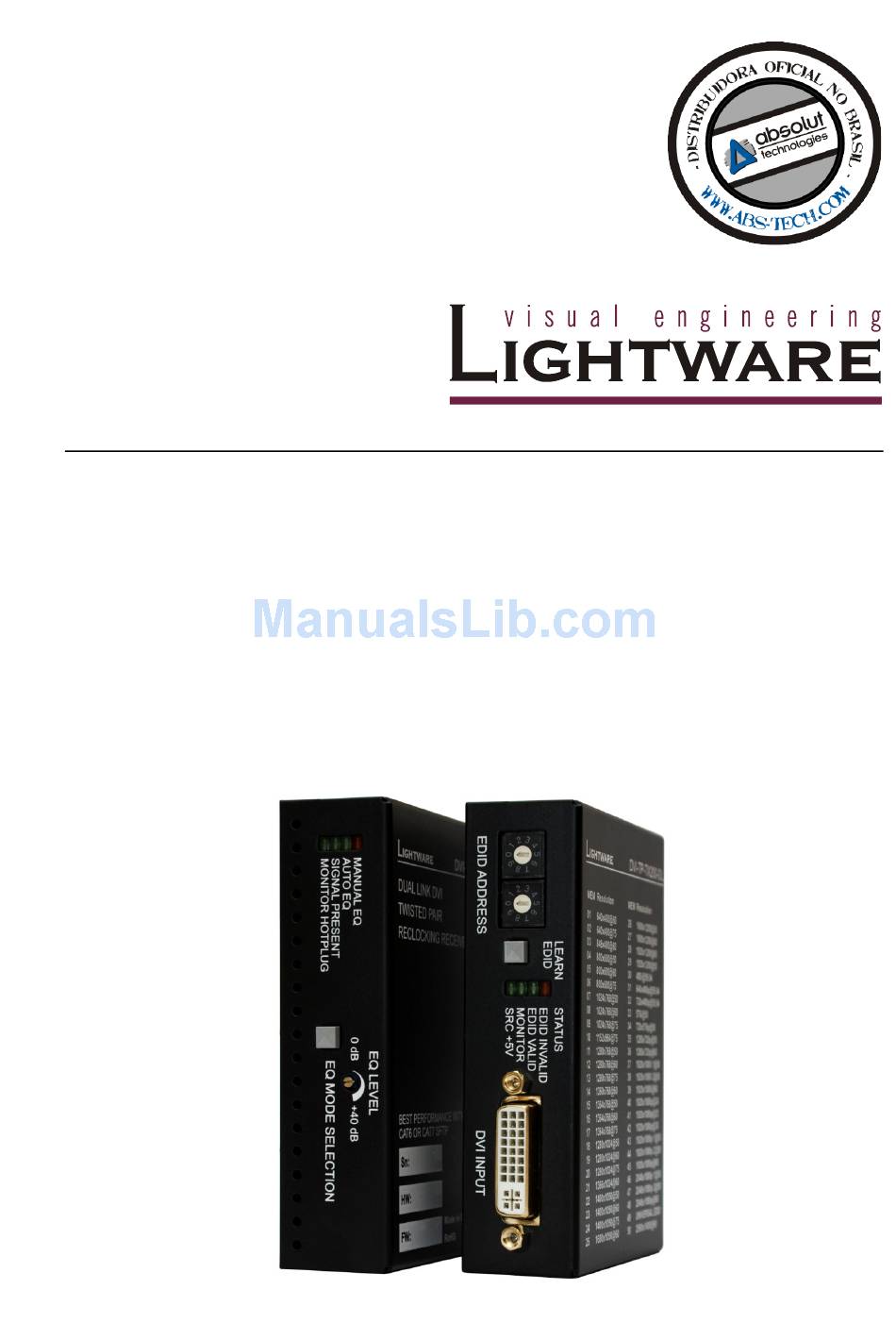

- Page 1 DVI-TP-TX200DL DVI-TP-RX100DL User's Manual...
- Page 2 Page 2 / 29...
-
Page 3: Safety Instructions
DVI-TP-TX200DL/RX100DL User’s Manual Rev. 1.0 SAFETY INSTRUCTIONS Class II apparatus construction. This equipment should be operated only from the power source indicated on the product. To disconnect the equipment safely from power, remove the power cord from the rear of the equipment, or from the power source. -
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY Lightware Kft. 1071 Budapest Peterdy str. 15 HUNGARY as manufacturer declare, that the products DVI-TP-TX200DL DVI-TP-RX100DL ( Computer Monitor Extender ) in accordance with the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EEC is in conformity with the following standards: EMI/EMC ........ -
Page 5: Table Of Contents
2.9......................... 12 PPLICATIONS 2.10......................13 RONT AND REAR VIEW 2.10.1. Front view of DVI-TP-TX200DL .................. 13 2.10.2. Rear view of DVI-TP-TX200DL ................... 14 2.10.3. Front view of DVI-TP-RX100DL .................. 15 2.10.4. Rear view of DVI-TP-RX100DL ................... 16 2.11. -
Page 6: Introduction
DVI-TP-TX200DL supports +5V/500 mA constant current output on MONITOR OUTPUT to power long distance fiber optical transmitters. Universal power adaptor – DVI-TP-TX200DL is equipped with a universal +5V power adaptor, which accepts AC voltages from 100 to 240 Volts with 50 or 60 Hz line frequency. -
Page 7: Receiver Features (Dvi-Tp-Rx100Dl)
DVI-TP-TX200DL/RX100DL User’s Manual Rev. 1.0 2.3. Receiver features (DVI-TP-RX100DL) Input Equalization – Both CATx inputs are compensated for up to 40 dB high frequency cable loss. Automatic and user adjustable modes are available to allow for precise setting of equalization. -
Page 8: Understanding Edid
2.4.2. Common problems related to EDID Problem: „My system consists of the following: a PC, then a Lightware DVI-TP- TX200DL, a WQXGA (2560x1600) LCD as local monitor, then a DVI- TP-RX100DL connected to a QXGA (2048x1536) projector. I would like to see the same image on the monitor and the projector. -
Page 9: Advanced Edid Management (Dvi-Tp-Tx200Dl)
The EDID emulated on the input can be copied from the DVI-TP-TX200DL's memory (static EDID emulation) or from the attached monitor (dynamic emulation). For example, the DVI-TP-TX200DL can be set up to emulate the device, which is connected to MONITOR OUTPUT, and the EDID automatically changes if the monitor is replaced with another display device (as long as it has a valid EDID). -
Page 10: Dual Link Dvi Signal
The TMDS Reclocking circuit eliminates the following errors: Intra-pair skew: skew between the + and - wires within a differential wire pair (e.g. Data2- and Data2+). It’s caused by different wire lengths or slightly different wire construction (impedance mismatch) in DVI cable. -
Page 11: Fiber Cable Powering
2.8. Fiber Cable powering As a special feature, both DVI-TP-TX200DL (MONITOR OUTPUT) and DVI-TP- RX100DL (DVI OUTPUT) are able to supply 500 mA current to power fiber optical transmitters like Lightware DVI-OPT-TX100 (Pin 14 on DVI OUT connector). -
Page 12: Applications
2.9. Applications Typical stand-alone application Using with Lightware MX32x32 FR32R frame (the frame is equipped with single and dual link DVI cards and dual link TP cards) Page 12 / 29... -
Page 13: Front And Rear View
Hot Plug Signal on Pin 16 through the DVI cable. SRC +5V LED Indicates if a DVI source is connected to the DVI-TP-TX200DL, it is powered on and sends +5V signal to Pin 14 of the input DVI connector. -
Page 14: Rear View Of Dvi-Tp-Tx200Dl
The DVI-TP-TX200DL does not have networking capabilities. Do not connect the RJ45 output of the DVI-TP-TX200DL to a Local Area Network device or a PC. Doing so may damage the unit! +5V DC connector Connect the output of the supplied +5V power adaptor. -
Page 15: Front View Of Dvi-Tp-Rx100Dl
DVI-TP-TX200DL/RX100DL User’s Manual Rev. 1.0 2.10.3. Front view of DVI-TP-RX100DL Status LEDs EQ level adjust knob EQ mode selector button EQ mode status LEDs Two LEDs indicate whether the DVI-TP-RX100DL is in auto or manual equalization mode. Automatic mode usually gives a good result, but at long distances, manual equalization may be necessary. -
Page 16: Rear View Of Dvi-Tp-Rx100Dl
CAT-A input. Accidental connection of the CAT-A input of the DVI-TP- RX100DL to the CAT-B output of a Lightware dual link twisted pair transmitter (and vice versa) does not result in damage to the unit but it may result in faulty behavior. Please turn off the devices, disconnect the cables and connect the cables to the appropriate connectors. -
Page 17: Electrical Connections
User’s Manual Rev. 1.0 2.11. Electrical connections 2.11.1. DVI inputs and outputs DVI-TP-TX200DL and DVI-TP-RX100DL provide 29 pole „digital only” DVI-I connectors for input and output connections. Always use high quality DVI cable for connecting sources and displays. Signal Signal... -
Page 18: Operation Of Dvi-Tp-Tx200Dl
After the system is complete, connect the output of the +5V Power Adaptor to the DVI-TP-TX200DL (further on TX200DL) The unit is immediately powered ON. After being powered on, the TX200DL displays its firmware version using the EDID Status LEDs. -
Page 19: Switching The Edid
OFF and ON again. 3.4. Factory preset EDID list Lightware factory pre-loaded EDIDs are specially provided to force graphic cards to output only the exact pixel resolution and refresh rate. Universal EDID (address 49) allows multiple resolutions including all common VESA defined resolutions. -
Page 20: Operation Of Dvi-Tp-Rx100Dl
Info If none of the LEDs light up upon power-up, the unit is most likely damaged and further use is not advised. Please contact support@lightware.hu 4.2. Adjusting the input equalization The amplitude of high frequency signals decreases after they pass through long distances in copper cables. -
Page 21: Maximum Twisted Pair Distances
Check the source equipment Check the Source Connected LED on the front side of the DVI-TP-TX200DL. This LED indicates the presence of the +5V signal coming from the DVI source. If it is not illuminated, then your DVI source is not working properly. - Page 22 Check EDID related problems Check the EDID Status LEDs on the front side of the DVI-TP-TX200DL. These LEDs indicate whether a valid EDID is selected. If the red LED is illuminated, then an invalid EDID or an empty memory address is selected. Please select a valid EDID.
-
Page 23: Mechanical Drawings
DVI-TP-TX200DL/RX100DL User’s Manual Rev. 1.0 Mechanical Drawings 6.1. DVI-TP-TX200DL 6.1.1. Top view 100,4 mm 67,6 mm 6.1.2. Front view (controls and input) 26 mm 100,4 mm Page 23 / 29... -
Page 24: Rear View (Outputs And Power)
6.1.3. Rear view (outputs and power) 26 mm 100,4 mm 6.1.4. Bottom view 16.4 mm 2x M3 thread 16.5 mm 16,4 mm For rack mounting, cross recessed M3 (max. 10 mm long) screws must be used. Page 24 / 29... -
Page 25: Dvi-Tp-Rx100Dl
DVI-TP-TX200DL/RX100DL User’s Manual Rev. 1.0 6.2. DVI-TP-RX100DL 6.2.1. Top view 100,4 mm 67,6 mm 6.2.2. Front view (controls) 26 mm 100,4 mm Page 25 / 29... -
Page 26: Rear View (Inputs, Output And Power)
6.2.3. Rear view (inputs, output and power) 26 mm 100,4 mm 6.2.1. Bottom view 16.4 mm 2x M3 thread 16.5 mm 16,4 mm For rack mounting, cross recessed M3 (max. 10 mm long) screws must be used. Page 26 / 29... -
Page 27: Warranty
Lightware Visual Engineering warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. The customer shall pay shipping charges when unit is returned for repair. Lightware will cover shipping charges for return shipments to customers. -
Page 28: Specifications
Specifications Video Standard ..................DVI 1.0 Dual Link Color depth ................24 bits, 8 bit/color Format ..................... RGB only Data rate ......all between 25 Mbps and 1.65 Gbps /TMDS channel Resolutions ........all between 640x480 and 3840x2400@30Hz HDTV resolutions ..............720p, 1080i, 1080p HDCP compliant .................... - Page 29 DVI-TP-TX200DL/RX100DL User’s Manual Rev. 1.0 NOTES: Page 29 / 29...
