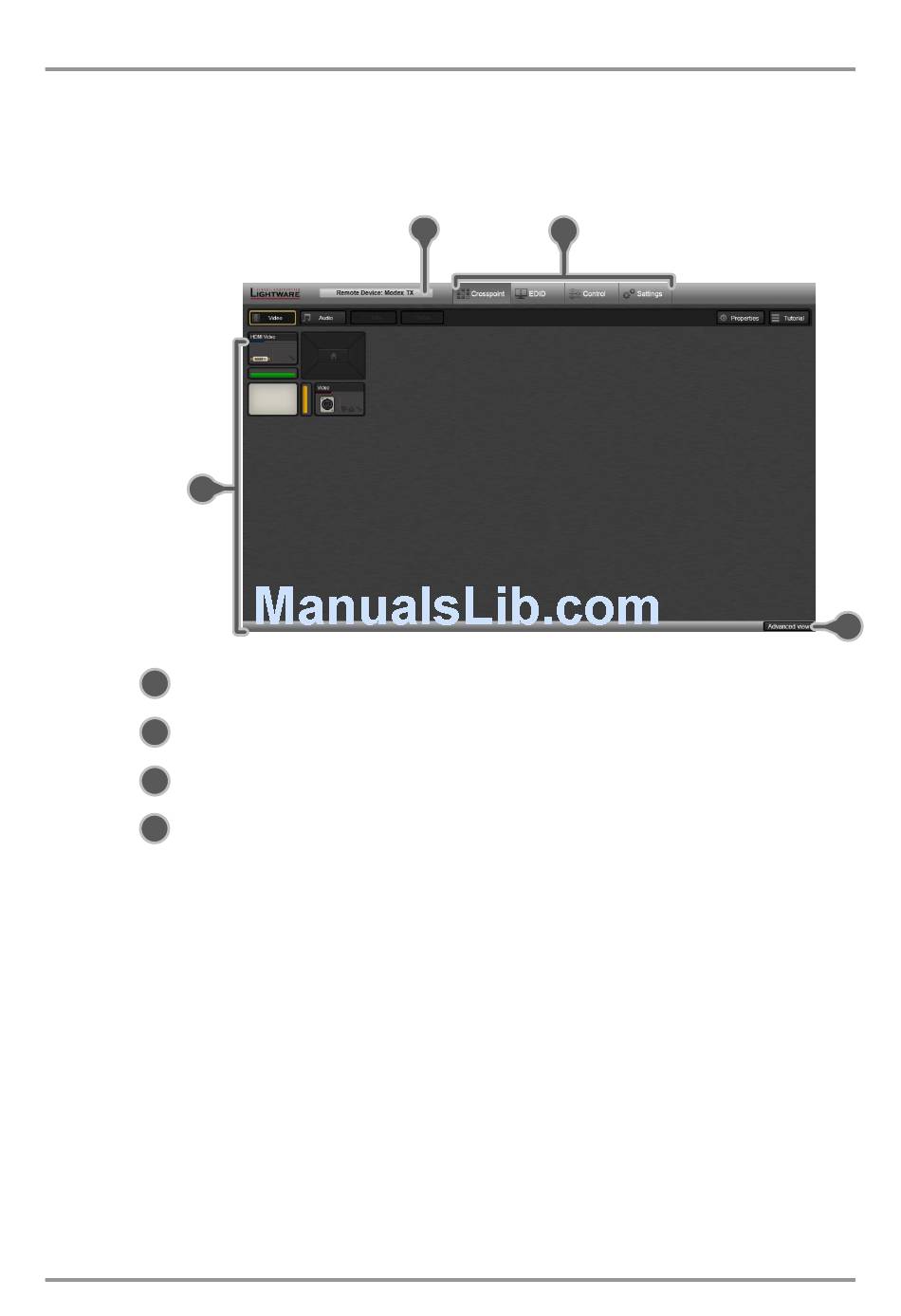

6.2. Layout of built-in web

After the connection is established Crosspoint menu appears by default. Device selector
indicates which device has been connected to. This is the local device. In this window
remote device can be selected. Both devices must be configured for appropriate transfer.
There are three tabs in main menu: Crosspoint, EDID and Settings.
4
1 Device selector
2 Main menu
Advanced view button
3
4
Active area
Local and remote control
When the transmitter and the receiver are linked by a fiber cable and one of them is
connected to a LAN, the other extender can be also controlled. In this case the extender
that is connected by the LAN cable is the Local Device, the other extender is the Remote
Device.
Section 6. Web control – Using the built-in website
1
Selecting Local or Remote Device by clicking the grey tab; it will
be loaded in the browser window.
Displaying Crosspoint, EDID, Control or Settings from the main
menu.
Displaying Advanced view page, showing the terminal window
and the protocol tree.
Displaying the content of the selected menu and module.
MODEX-OPTS, MODEX-OPTM
2
User's Manual
3
