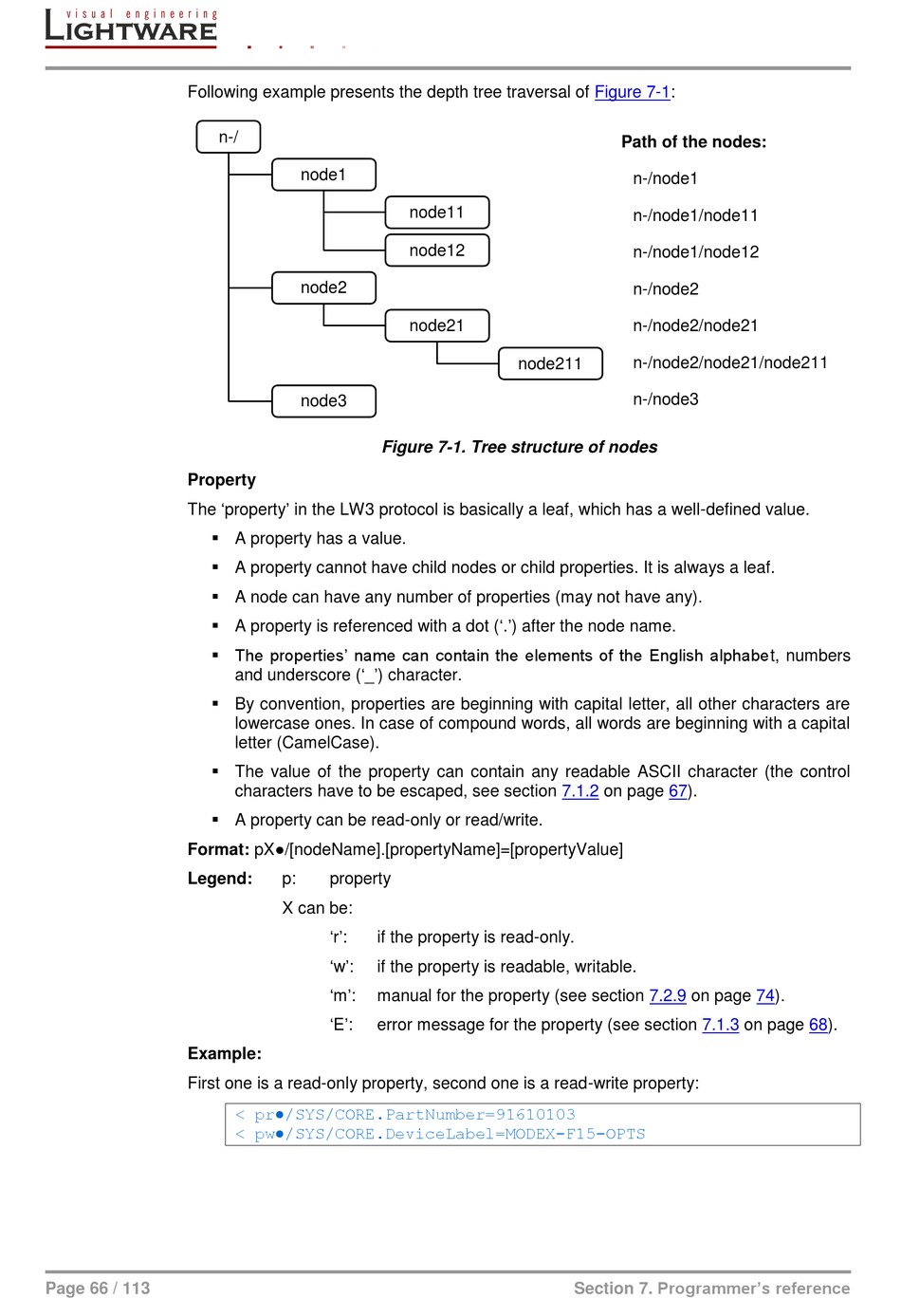

Following example presents the depth tree traversal of
Property
The 'property' in the LW3 protocol is basically a leaf, which has a well-defined value.
 A property has a value.
 A property cannot have child nodes or child properties. It is always a leaf.
 A node can have any number of properties (may not have any).
 A property is referenced with a dot ('.') after the node name.
 The properties' name can contain the elements of the English alphabet, numbers
 By convention, properties are beginning with capital letter, all other characters are
 The value of the property can contain any readable ASCII character (the control
 A property can be read-only or read/write.
Format: pX●/[nodeName].[propertyName]=[propertyValue]
Legend:
Example:
First one is a read-only property, second one is a read-write property:
Page 66 / 113
n-/
node1
node2
node3
Figure 7-1. Tree structure of nodes
and underscore ('_') character.
lowercase ones. In case of compound words, all words are beginning with a capital
letter (CamelCase).
characters have to be escaped, see section
p: property
X can be:
'r':
if the property is read-only.
'w':
if the property is readable, writable.
'm':
manual for the property (see section
'E':
error message for the property (see section
< pr●/SYS/CORE.PartNumber=91610103
< pw●/SYS/CORE.DeviceLabel=MODEX-F15-OPTS
node11
node12
node21
node211
7.1.2
Section 7. Programmer's reference
Figure 7-1:
Path of the nodes:
n-/node1
n-/node1/node11
n-/node1/node12
n-/node2
n-/node2/node21
n-/node2/node21/node211
n-/node3
on page 67).
7.2.9 on page 74).
7.1.3 on page 68).
