6.10. Advanced view

Advanced view is the surface for LW3 protocol settings with terminal window. Commands
and specific parameters (that are not available on the user interface) can be run and set.
Detailed information about the protocol, nodes, methods and parameters can be found in
chapter
1
2
Terminal window
1
Command line
2
Protocol tree
3
Node content
4
Info: If a module is locked, its settings cannot be changed; parameters, values will not be saved,
and factory default settings cannot be reloaded.
Page 64 / 113
7 on page 65. Click on Close button to hide the Advanced view.

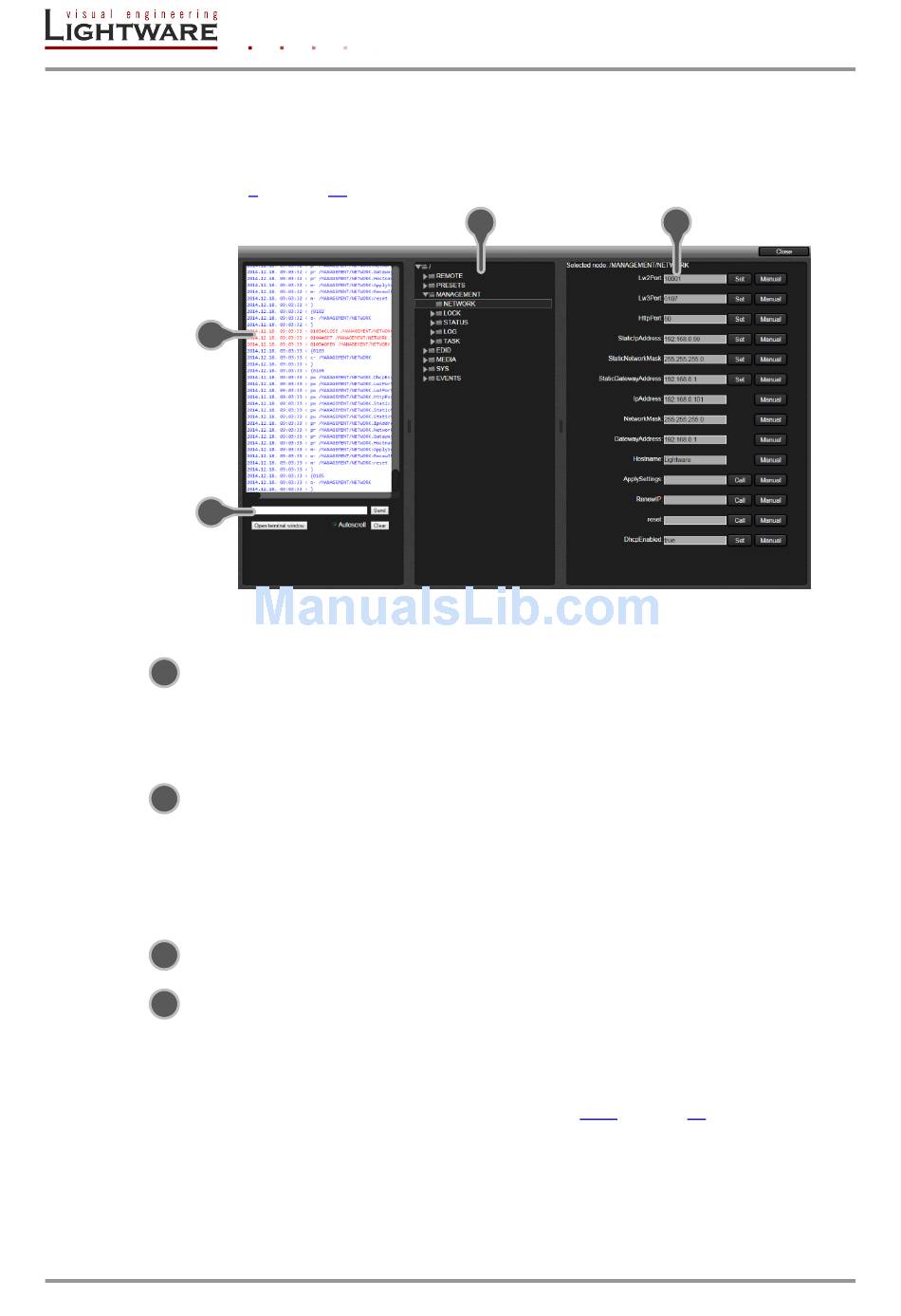

Figure 6-20. Advanced view
Commands and responses are listed in this window. The
timecode in every row shows the exact time when the command
was sent or the response received. Sent command is displayed
in red and starts with '>' character, received response is
displayed in blue and starts with '<' character. The content of the
window can be emptied by the Clear button.
Commands/queries can be typed directly into this field.
Send button:
Clear button:
Open terminal window:
The protocol tree is available via this panel. Select an item to see
its content.
The properties and methods are shown which belong to the
selected node in the protocol tree.
Manual button:
Set button:
Call button:
3
Execute the command in the field.
Empty the terminal window.
The separate window can show the
commands
closing the advanced view.
Manual (short description) of the node can be
called and displayed in the terminal window.
See more information about manuals in
section 7.2.9 on page 74.
Saves the value/parameter typed in the
textbox.
Calls the method with the typed value, e.g.
reloads factory default settings.
Section 6. Web control – Using the built-in website
4
