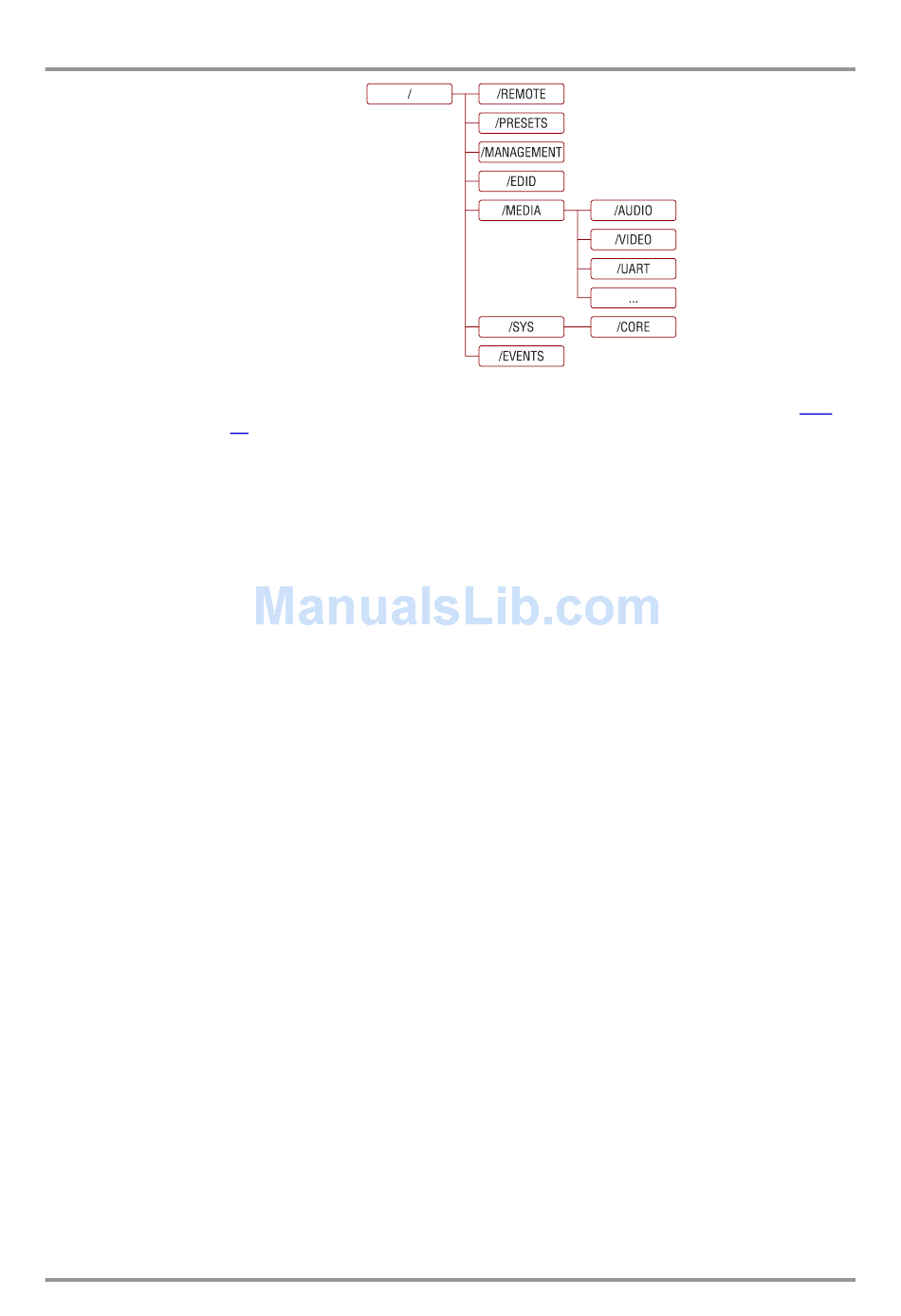

The exact content of the nodes (especially the /MEDIA node) depend on the installed
modules. The tree structure is available via the Web (Advanced view), see section
page 64.

7.3.1. /REMOTE

The node contains the protocol tree of the remote device (if connected): PRESETS,
MANAGEMENT, EDID, MEDIA, SYS and EVENT sub nodes. Settings and values are valid
for the remote device only below the /REMOTE node.

7.3.2. /PRESETS

Group node for the eight available presets; each preset has own sub node with its
properties.

7.3.3. /MANAGEMENT/

A group node for every management related settings. The features and settings here are
not related to the current crosspoint settings. The node contains the following sub nodes:
/MANAGEMENT/NETWORK
Contains Network-related properties, such as IP address, Gateway, Subnet mask, DHCP
and Port settings.
/MANAGEMENT/STATUS
Basic status values are stored about the MODEX: Firmware versions, Internal Voltage
values, Module code, System time (elapsed time since last booting in seconds).
/MANAGEMENT/LOCK
Installed modules can be locked/unlocked individually or together.
Info: The locking state is also stored under /SYS/CORE nodes and its sub nodes (as read-only
property), but the settings can be done in /MANAGEMENT/LOCK.
/MANAGEMENT/LOG
Last logged events can be queried here. /MANAGEMENT/LOG node contains five
properties (Warning, Error, Debug, Fatal and Notice), which shows the number of the
occurrence of the given event type. The log can be emptied by the calling the clearLog
method.
The node has five sub nodes (NOTICE, WARNING, ERROR, FATAL, DEBUG) which
contain the log entries as a property describing the logged event with details.
Section 7. Programmer's reference
MODEX-OPTS, MODEX-OPTM
User's Manual
Page 75 / 113
