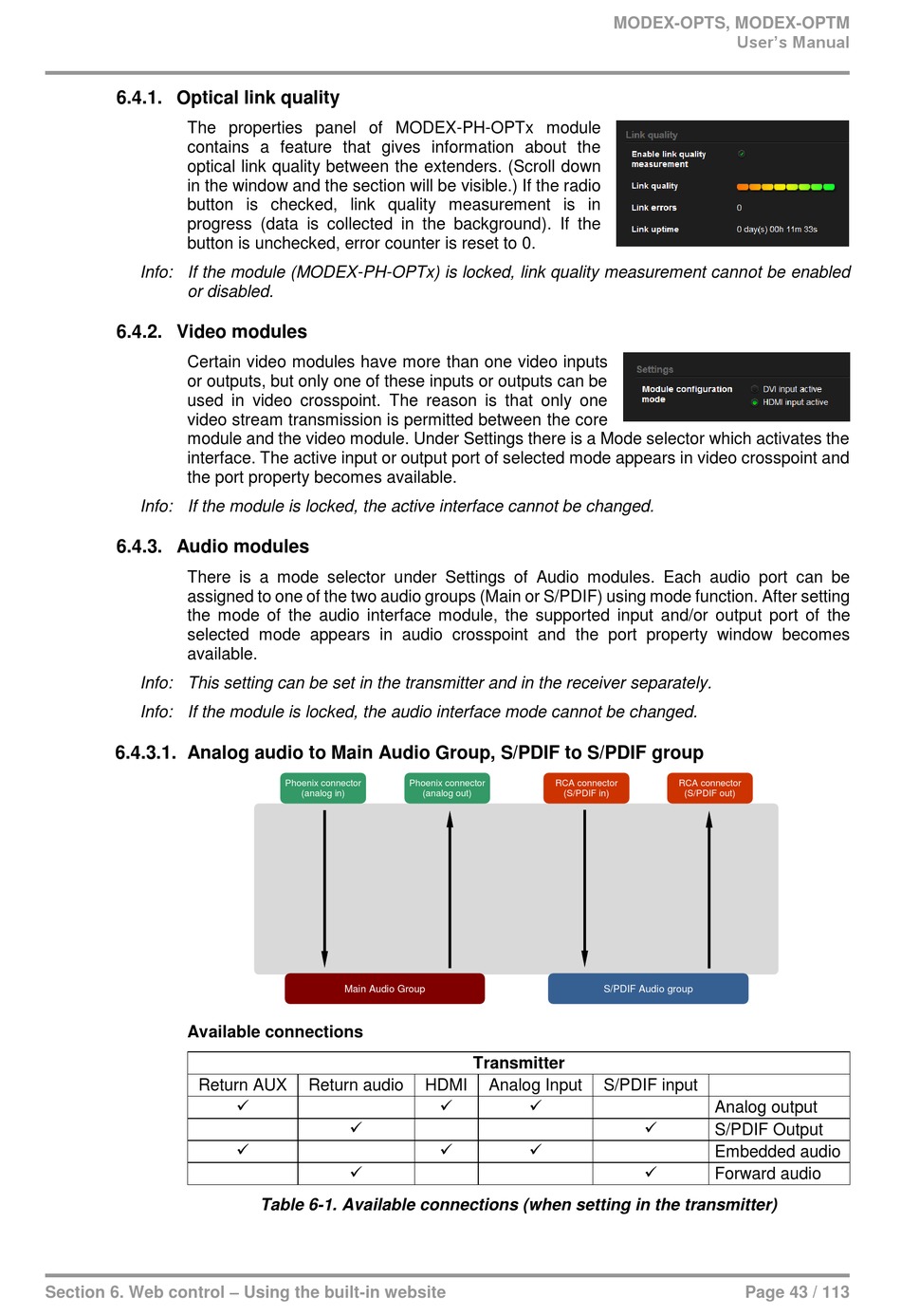

6.4.1. Optical link quality

The properties panel of MODEX-PH-OPTx module
contains a feature that gives information about the
optical link quality between the extenders. (Scroll down
in the window and the section will be visible.) If the radio
button is checked, link quality measurement is in
progress (data is collected in the background). If the
button is unchecked, error counter is reset to 0.
Info: If the module (MODEX-PH-OPTx) is locked, link quality measurement cannot be enabled
or disabled.

6.4.2. Video modules

Certain video modules have more than one video inputs
or outputs, but only one of these inputs or outputs can be
used in video crosspoint. The reason is that only one
video stream transmission is permitted between the core
module and the video module. Under Settings there is a Mode selector which activates the
interface. The active input or output port of selected mode appears in video crosspoint and
the port property becomes available.
Info: If the module is locked, the active interface cannot be changed.

6.4.3. Audio modules

There is a mode selector under Settings of Audio modules. Each audio port can be
assigned to one of the two audio groups (Main or S/PDIF) using mode function. After setting
the mode of the audio interface module, the supported input and/or output port of the
selected mode appears in audio crosspoint and the port property window becomes
available.
Info: This setting can be set in the transmitter and in the receiver separately.
Info: If the module is locked, the audio interface mode cannot be changed.
6.4.3.1. Analog audio to Main Audio Group, S/PDIF to S/PDIF group
Available connections
Return AUX
Section 6. Web control – Using the built-in website
Phoenix connector
(analog in)
Main Audio Group
Return audio
 
 
 
 
Table 6-1. Available connections (when setting in the transmitter)
Phoenix connector RCA connector
(analog out) (S/PDIF in)
Transmitter
HDMI Analog Input
 
 
 
 
MODEX-OPTS, MODEX-OPTM
User's Manual
RCA connector
(S/PDIF out)
S/PDIF Audio group
S/PDIF input

Analog output

S/PDIF Output

Embedded audio

Forward audio
