6.6.5. Learning an EDID

Info: The process is the same like changing emulated EDID; the only difference is the target on
the right panel: select 'User' button. Thus one or more EDIDs can be copied into user
memory either from factory memory or from a connected sink (Dynamic).

6.6.6. Exporting an EDID

The EDID listed in left panel can be downloaded as a file (*.bin) to the computer.
Step 1. Select desired EDID from the left panel (the EDID has to be highlighted with yellow
Step 2. Press Save button to download the file to the computer.

6.6.7. Importing an EDID

Previously saved EDID (*.bin file) can be imported into user memory as follows:
Step 1. Press User button above left panel.
Step 2. Select a memory slot from the list; it will be highlighted with yellow cursor.
Step 3. Press Load button below left panel.
Step 4. Browse the file in the opening window then click on Load EDID. Browsed EDID is
Info: The imported EDID overwrites the selected memory slot even if it is not empty.

6.6.8. EDID Summary window

Select an EDID in the left panel and press Info button to display EDID summary.

6.6.9. Creating an EDID

Since the above mentioned advanced editor needs more complex knowledge about EDID,
Lightware introduced a wizard like interface for fast and easy EDID creation. With Lightware
Easy EDID Creator it is possible to create custom EDIDs in four simple steps. By clicking
on the wizard icon, the Easy EDID Creator opens in a new window.
For further information, see the user's manual of Easy EDID Creator.
Page 52 / 113
cursor).
imported into the selected User memory slot.

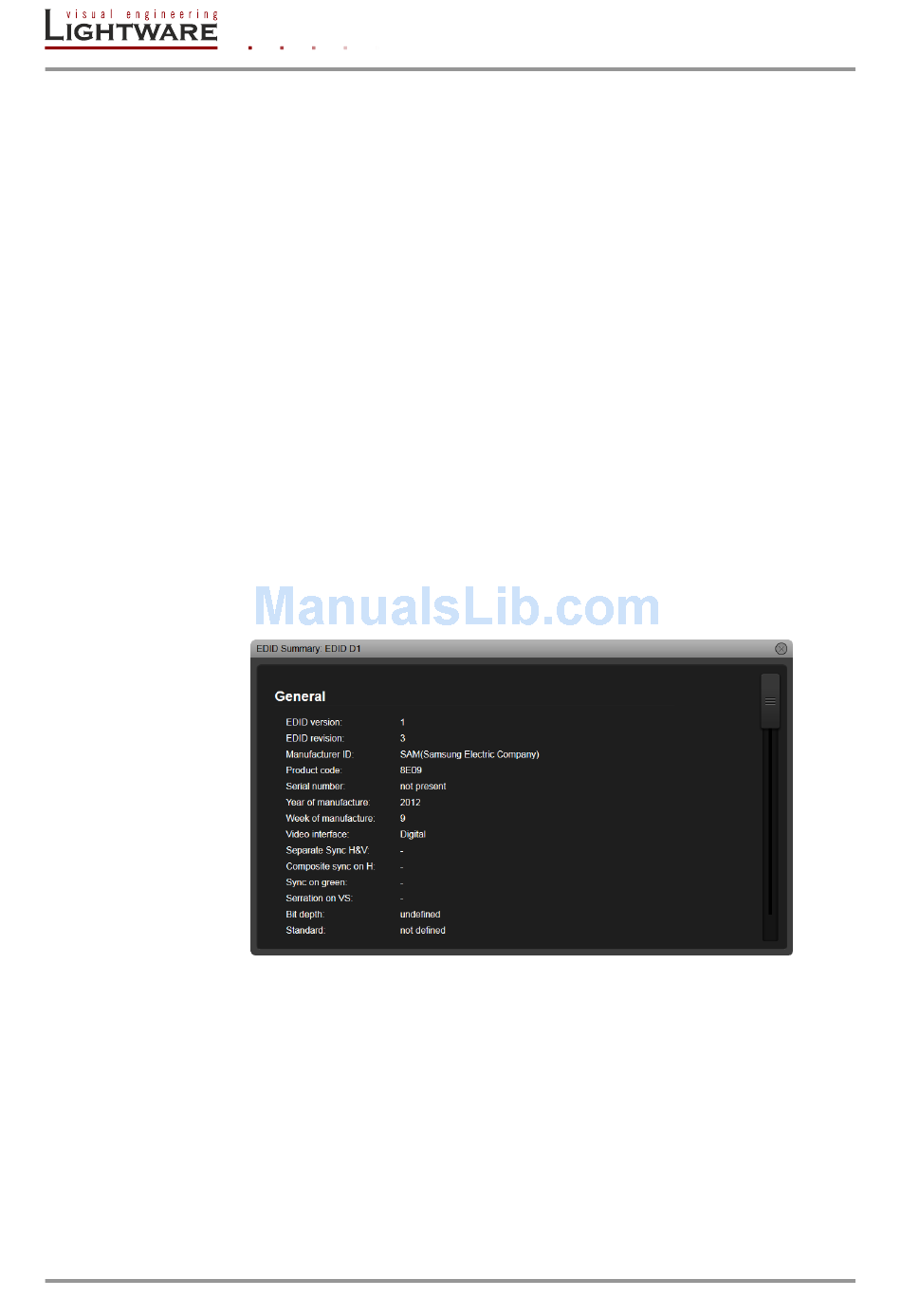

Figure 6-10. EDID Summary
