6.9.3. Status tab

Besides some general information and firmware versions in left panel, name of the installed
modules are listed in the right panel of this submenu. System time means the elapsed time
since last boot.
Info: Supply B is reserved for future developments.

6.9.4. System log tab

Info: The feature is available only when connecting to the MODEX directly (as a Local Device).
The submenu shows events that have been logged by MODEX. Use the selectors to
display the logged Notices, Warnings, Errors or Fatal errors. The log can be scrolled by the
mouse wheel or grabbing and moving the lists.
Click on Export button to save all events as a CSV file (Comma Separated Values).
Page 60 / 113

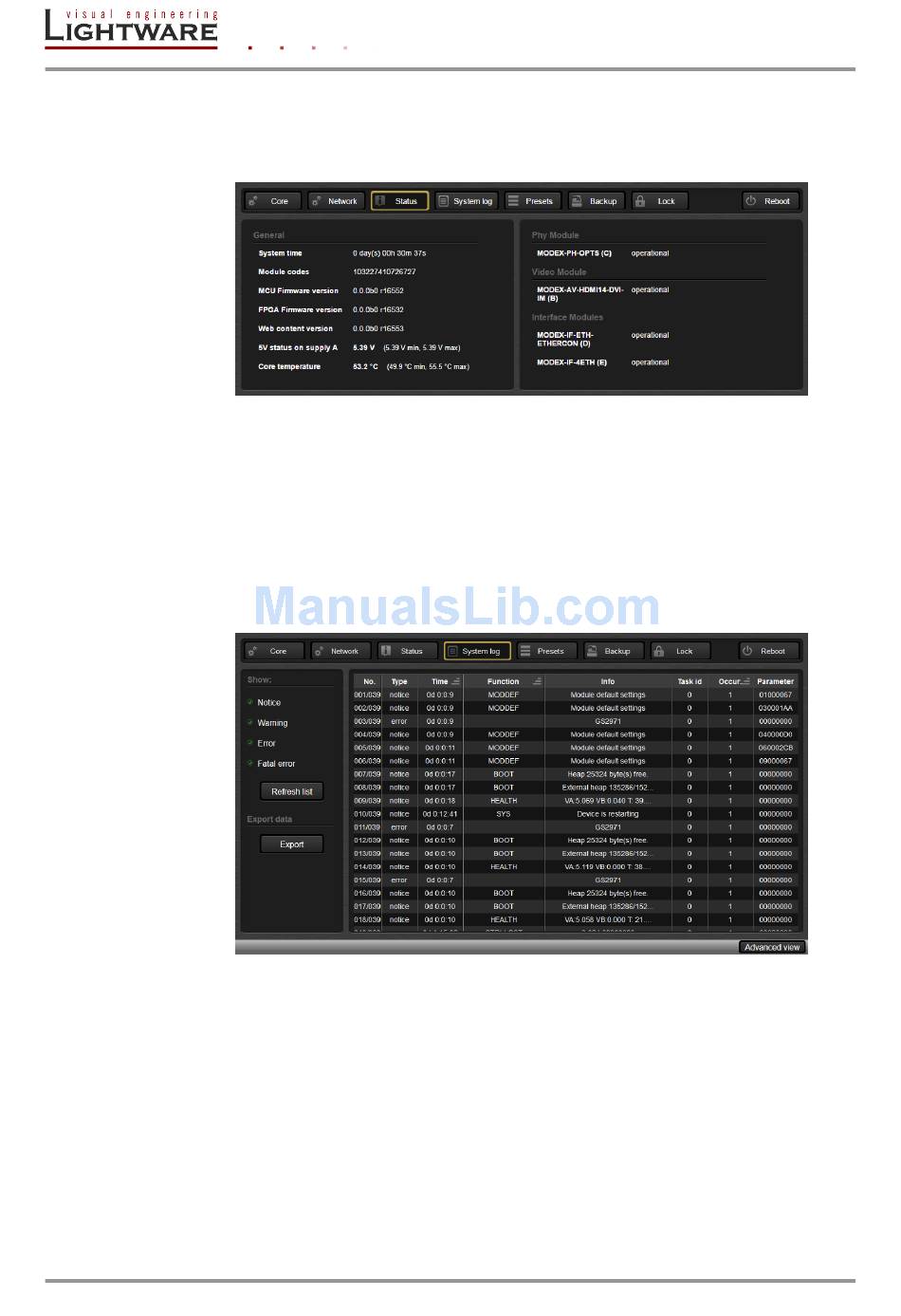

Figure 6-16. Status tab
Figure 6-17. System log tab
Section 6. Web control – Using the built-in website
