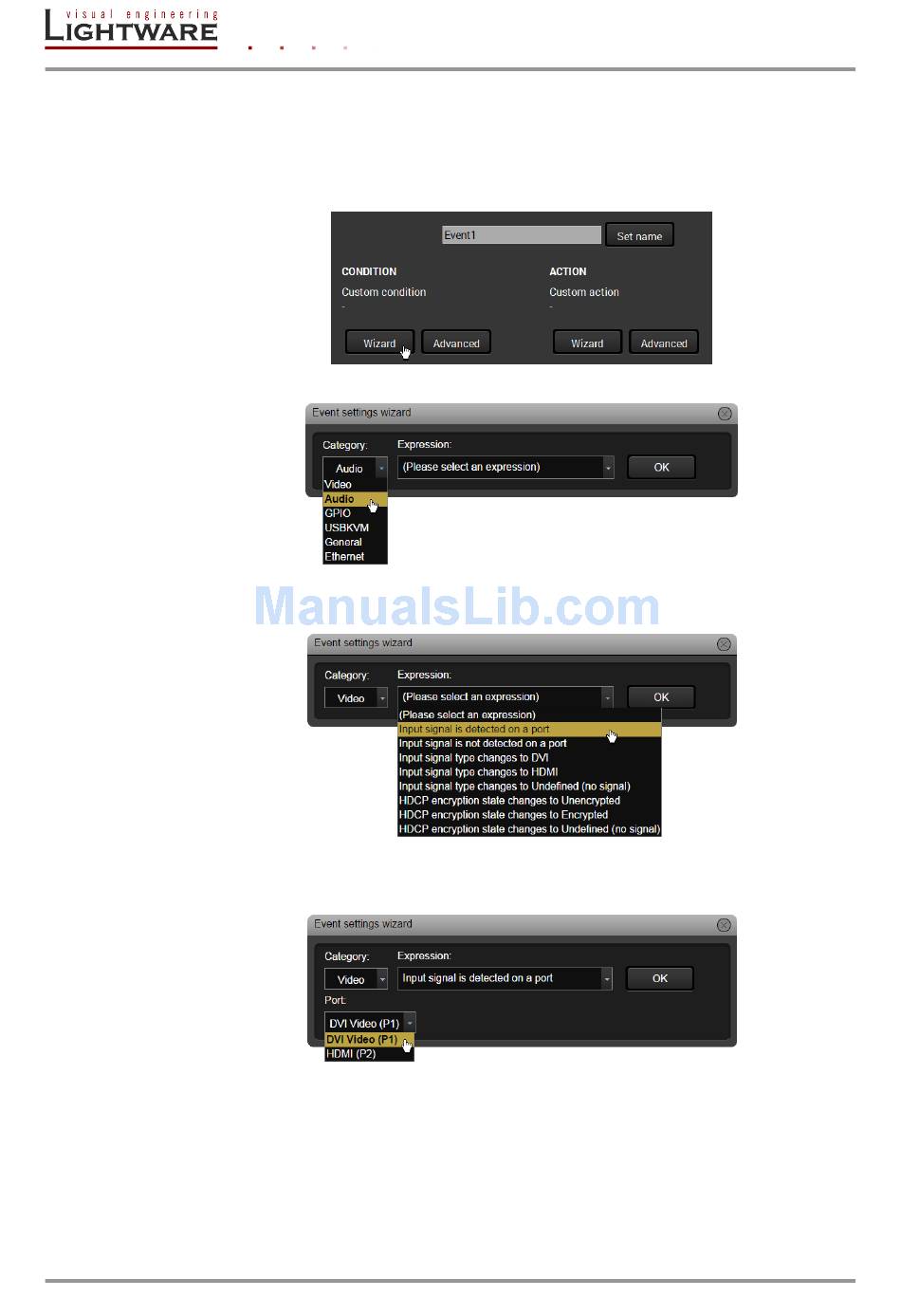

6.8.2. Wizard mode

A simple wizard makes things easy for the user, because it lists the most common
conditions and actions, so the user does not have to look for LW3 nodes and properties,
the wizard does it instead. Conditions and actions also have their own button.
Step 1. Click on the Wizard button.
Step 2. Select the desired category from the drop-down menu.
All the values can be changed during the whole process.
Step 3. Select an Expression.
The given expressions determine the further possible parameters. E.g. if the Expression is
a video signal detection of any port on the Video layer, the port has to be defined in the
following step.
If the parameters are selected in the drop-down boxes, click on the OK to finish the wizard
of the condition; the set condition can be seen above the buttons. The white text is the
name of the selected condition. The yellow one is the accurate property name and value
by LW3 protocol. You do not need to remember or note this text, LDC shows it continuously.
