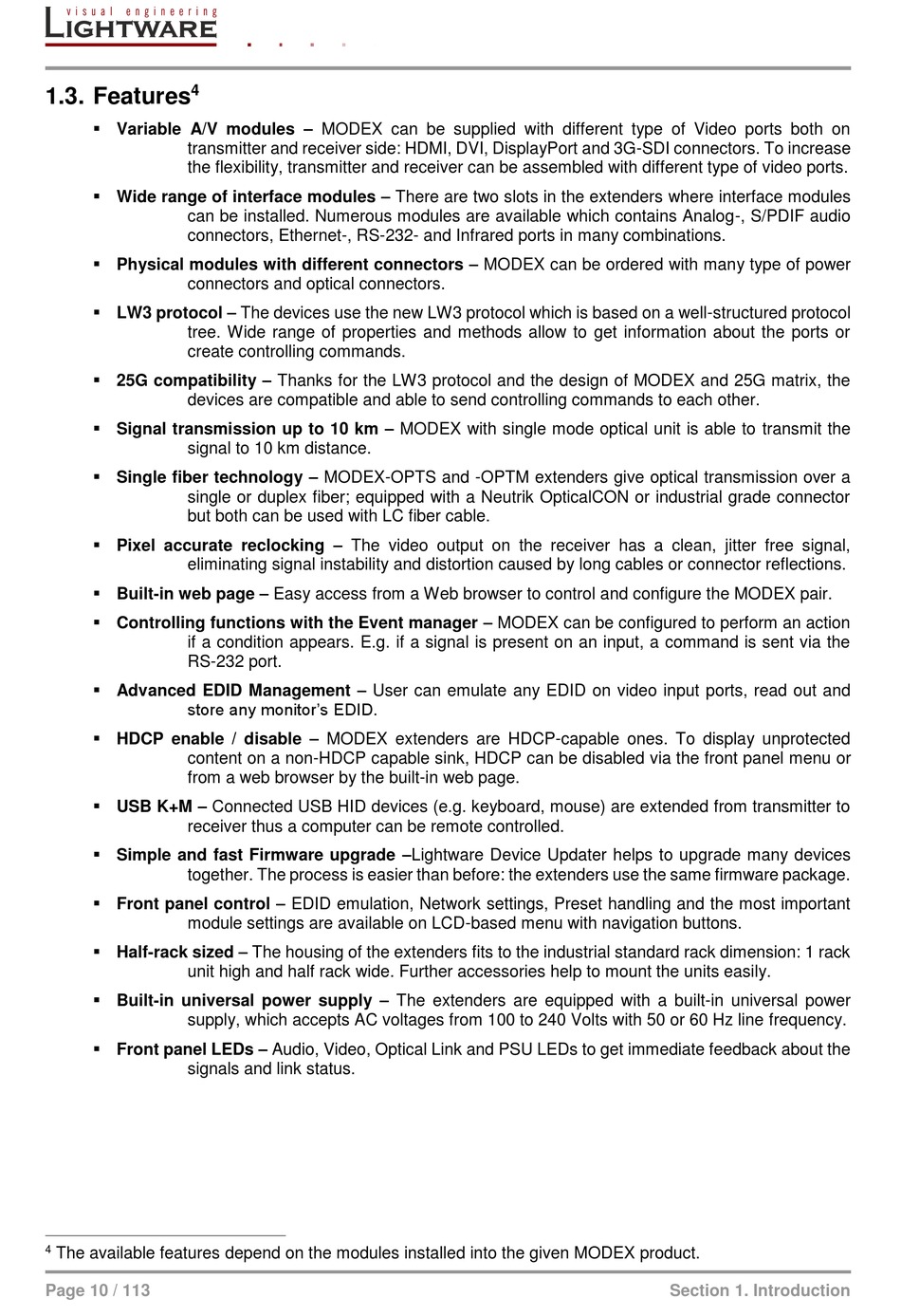

1.3. Features

 Variable A/V modules – MODEX can be supplied with different type of Video ports both on
transmitter and receiver side: HDMI, DVI, DisplayPort and 3G-SDI connectors. To increase
the flexibility, transmitter and receiver can be assembled with different type of video ports.
 Wide range of interface modules – There are two slots in the extenders where interface modules
can be installed. Numerous modules are available which contains Analog-, S/PDIF audio
connectors, Ethernet-, RS-232- and Infrared ports in many combinations.
 Physical modules with different connectors – MODEX can be ordered with many type of power
connectors and optical connectors.
 LW3 protocol – The devices use the new LW3 protocol which is based on a well-structured protocol
tree. Wide range of properties and methods allow to get information about the ports or
create controlling commands.
 25G compatibility – Thanks for the LW3 protocol and the design of MODEX and 25G matrix, the
devices are compatible and able to send controlling commands to each other.
 Signal transmission up to 10 km – MODEX with single mode optical unit is able to transmit the
signal to 10 km distance.
 Single fiber technology – MODEX-OPTS and -OPTM extenders give optical transmission over a
single or duplex fiber; equipped with a Neutrik OpticalCON or industrial grade connector
but both can be used with LC fiber cable.
 Pixel accurate reclocking – The video output on the receiver has a clean, jitter free signal,
eliminating signal instability and distortion caused by long cables or connector reflections.
 Built-in web page – Easy access from a Web browser to control and configure the MODEX pair.
 Controlling functions with the Event manager – MODEX can be configured to perform an action
if a condition appears. E.g. if a signal is present on an input, a command is sent via the
RS-232 port.
 Advanced EDID Management – User can emulate any EDID on video input ports, read out and
store any monitor's EDID.
 HDCP enable / disable – MODEX extenders are HDCP-capable ones. To display unprotected
content on a non-HDCP capable sink, HDCP can be disabled via the front panel menu or
from a web browser by the built-in web page.
 USB K+M – Connected USB HID devices (e.g. keyboard, mouse) are extended from transmitter to
receiver thus a computer can be remote controlled.
 Simple and fast Firmware upgrade –Lightware Device Updater helps to upgrade many devices
together. The process is easier than before: the extenders use the same firmware package.
 Front panel control – EDID emulation, Network settings, Preset handling and the most important
module settings are available on LCD-based menu with navigation buttons.
 Half-rack sized – The housing of the extenders fits to the industrial standard rack dimension: 1 rack
unit high and half rack wide. Further accessories help to mount the units easily.
 Built-in universal power supply – The extenders are equipped with a built-in universal power
supply, which accepts AC voltages from 100 to 240 Volts with 50 or 60 Hz line frequency.
 Front panel LEDs – Audio, Video, Optical Link and PSU LEDs to get immediate feedback about the
signals and link status.
4
The available features depend on the modules installed into the given MODEX product.
