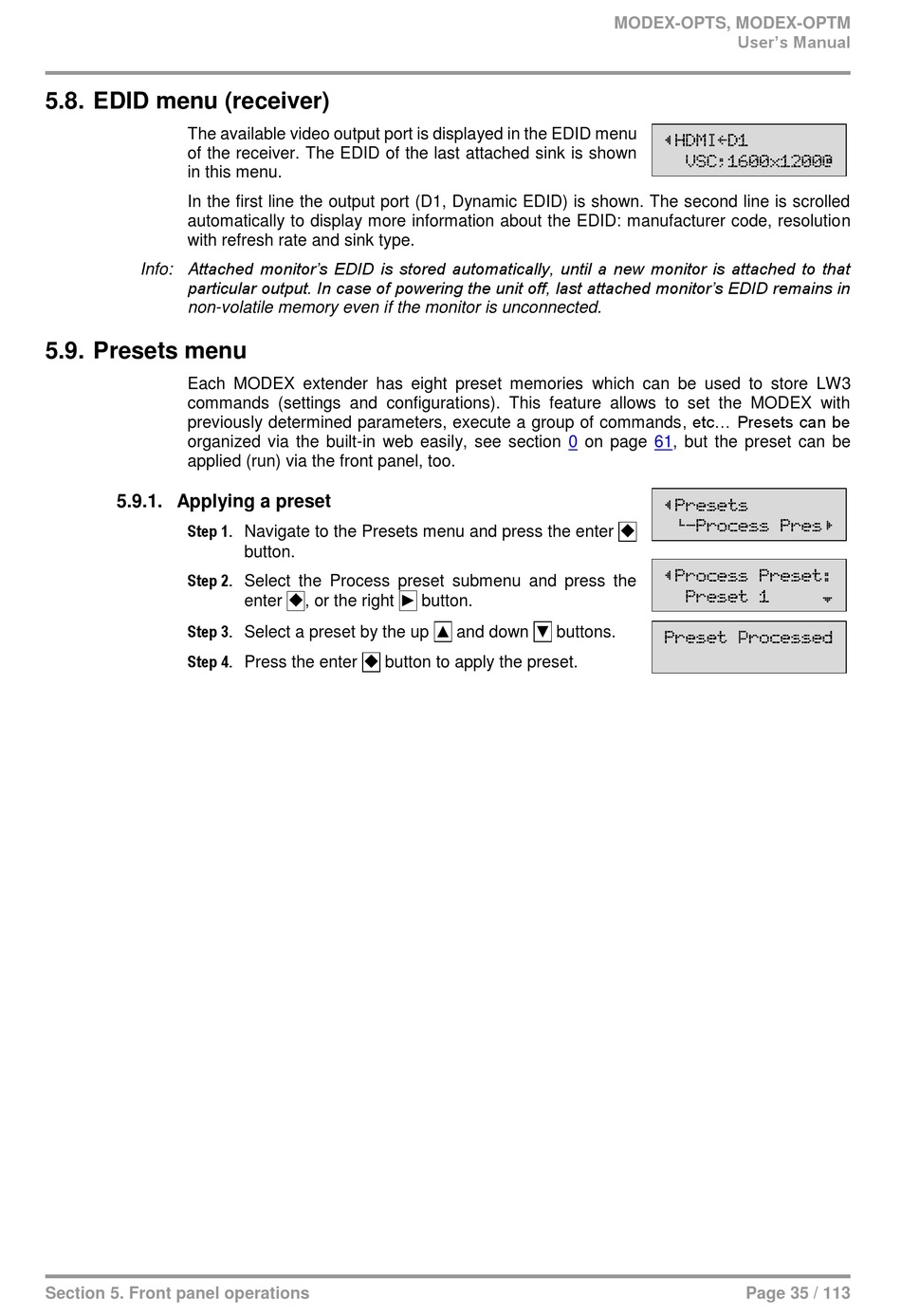

5.8. EDID menu (receiver)

The available video output port is displayed in the EDID menu
of the receiver. The EDID of the last attached sink is shown
in this menu.
In the first line the output port (D1, Dynamic EDID) is shown. The second line is scrolled
automatically to display more information about the EDID: manufacturer code, resolution
with refresh rate and sink type.
Info: Attached monitor's EDID is stored automatically, until a new monitor is attached to that
particular output. In case of powering the unit off, last attached monitor's EDID remains in
non-volatile memory even if the monitor is unconnected.

5.9. Presets menu

Each MODEX extender has eight preset memories which can be used to store LW3
commands (settings and configurations). This feature allows to set the MODEX with
previously determined parameters, execute a group of commands, etc... Presets can be
organized via the built-in web easily, see section
applied (run) via the front panel, too.

5.9.1. Applying a preset

Step 1. Navigate to the Presets menu and press the enter 
Step 2. Select the Process preset submenu and press the
Step 3. Select a preset by the up ▲ and down ▼ buttons.
Step 4. Press the enter  button to apply the preset.
