6.5.5. SDI port

SDI channel configuration window can be displayed by pressing its
button on properties panel.
SDI Audio Channels
SDI signal can carry up to 16 audio channels – 8 of them can be allocated to dedicated
channels in line with HDMI audio channel allocation settings. Select the two groups from
the drop-down menus and click on a cube to connect the channels. (Same groups cannot
be selected at the same time.)
Info: Channel assignment is not changed on the cubes when another group is selected from the
drop-down menu – layout of the cubes remains unchanged.
HDMI audio channel allocation
Number of channels can be selected from 2 to 8 channels:
Preset
Preset memories can be used to store SDI audio settings and configurations. There are 4
factory and 5 user programmable preset memories. Factory presets cannot be changed,
and cannot be renamed. User programmable preset memories can be saved, changed,
loaded and renamed as well.
Info: Preset memory stores the full configuration of SDI audio settings: channel allocation and
assignments.
Page 48 / 113

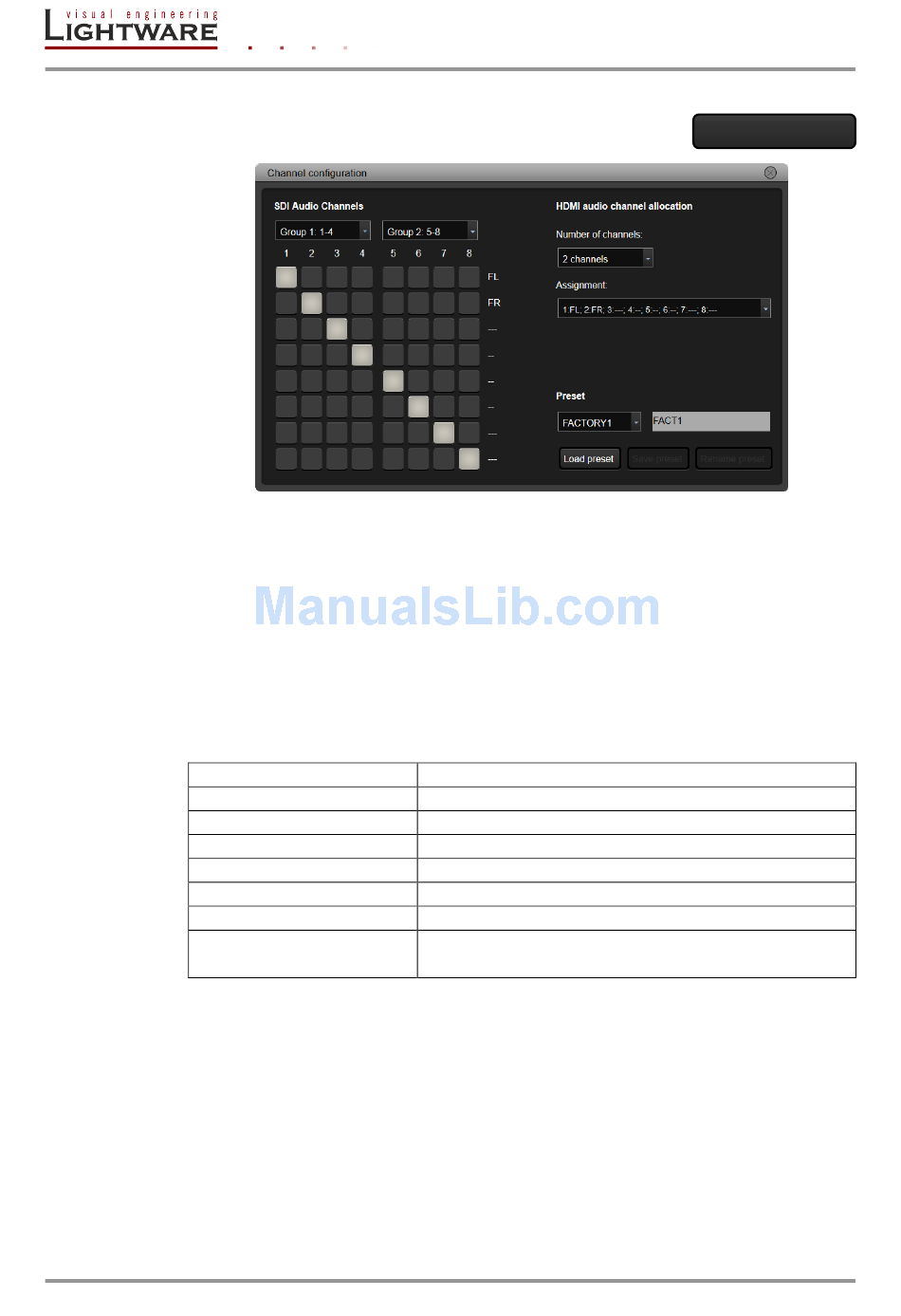

Figure 6-8. SDI Channel configuration
Number of channels
2
3
4
5
6
7
8
Table 6-9. HDMI audio channel allocation
Assignment
1:FL; 2:FR
1:FL; 2:FR; 3:LFE
1:FL; 2:FR; 3:LFE; 4:FC
1:FL; 2:FR; 3:LFE; 4:FC; 5:RL
1:FL; 2:FR; 3:LFE; 4:FC; 5:RL; 6:RR
1:FL; 2:FR; 3:LFE; 4:FC; 5:RL; 6:RR; 7:RLC
1:FL; 2:FR; 3:LFE; 4:FC; 5:RL; 6:RR; 7:RLC; 8:RRC, or
1:FL; 2:FR; 3:LFE; 4:FC; 5:RL; 6:RR; 7:FLC; 8:FRC
Section 6. Web control – Using the built-in website
Channel configuration
