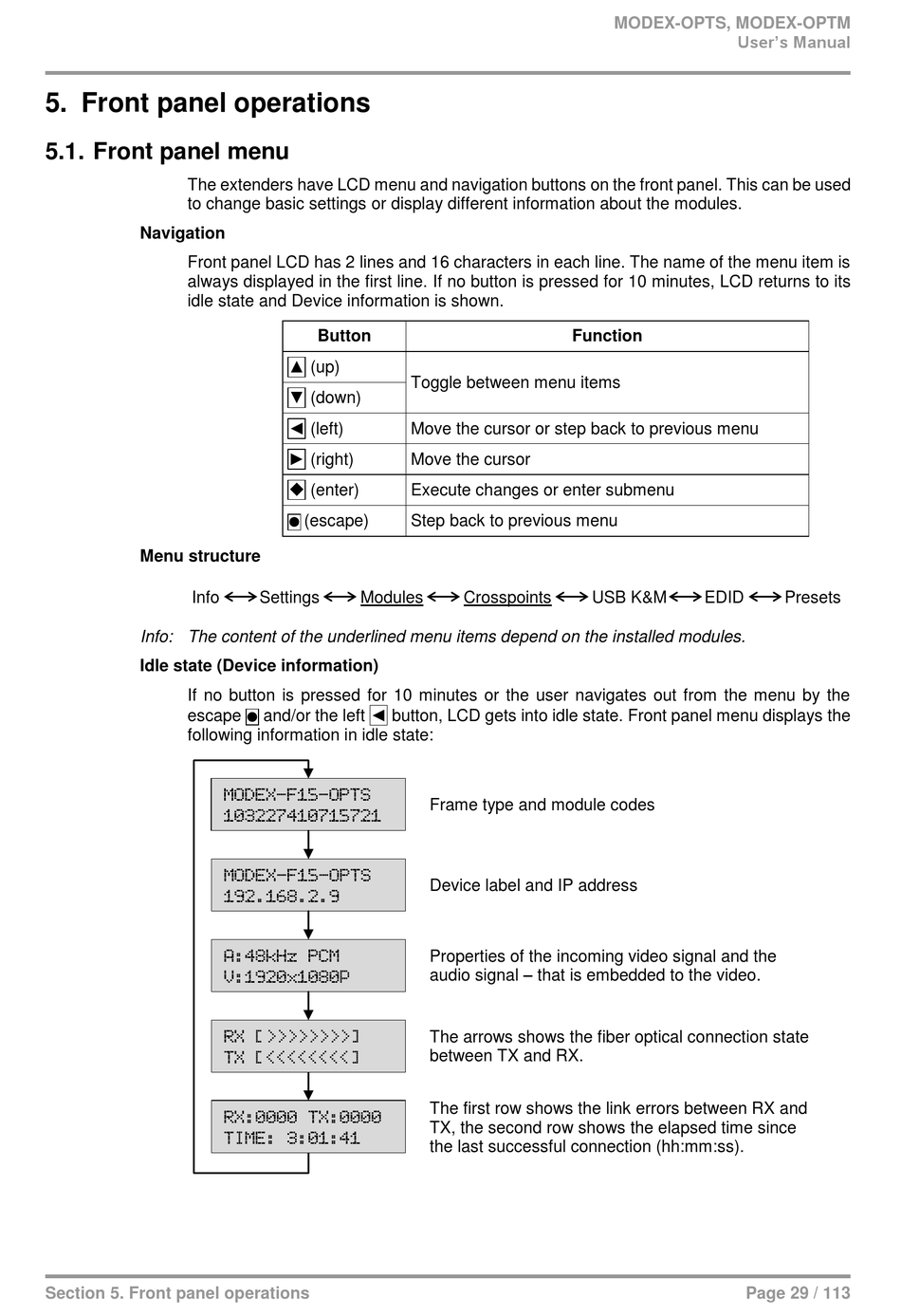

5. Front panel operations

5.1. Front panel menu

The extenders have LCD menu and navigation buttons on the front panel. This can be used
to change basic settings or display different information about the modules.
Navigation
Front panel LCD has 2 lines and 16 characters in each line. The name of the menu item is
always displayed in the first line. If no button is pressed for 10 minutes, LCD returns to its
idle state and Device information is shown.
Menu structure
Info
Info: The content of the underlined menu items depend on the installed modules.
Idle state (Device information)
If no button is pressed for 10 minutes or the user navigates out from the menu by the
escape
following information in idle state:
Section 5. Front panel operations
Button
▲ (up)
▼ (down)
◄ (left)
► (right)
 (enter)
(escape)
●
Settings Modules
and/or the left ◄ button, LCD gets into idle state. Front panel menu displays the
●
MODEX-F15-OPTS
103227410715721
MODEX-F15-OPTS
192.168.2.9
A:48kHz PCM
V:1920x1080p
RX [>>>>>>>>]
TX [<<<<<<<<]
RX:0000 TX:0000
TIME: 3:01:41
Function
Toggle between menu items
Move the cursor or step back to previous menu
Move the cursor
Execute changes or enter submenu
Step back to previous menu
Crosspoints
Frame type and module codes
Device label and IP address
Properties of the incoming video signal and the
audio signal – that is embedded to the video.
The arrows shows the fiber optical connection state
between TX and RX.
The first row shows the link errors between RX and
TX, the second row shows the elapsed time since
the last successful connection (hh:mm:ss).
MODEX-OPTS, MODEX-OPTM
User's Manual
USB K&M EDID
Page 29 / 113
Presets
