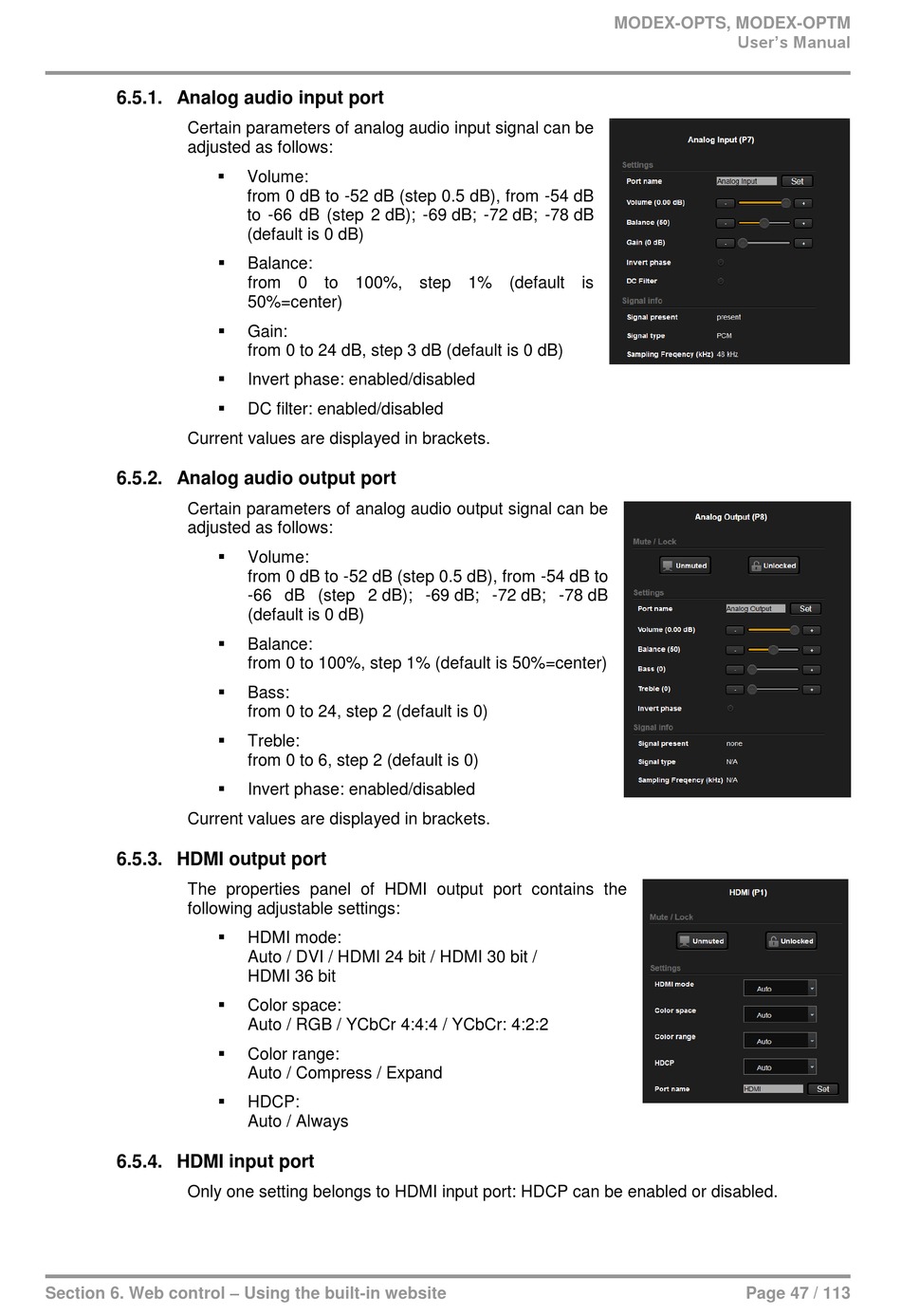

6.5.1. Analog audio input port

Certain parameters of analog audio input signal can be
adjusted as follows:
Current values are displayed in brackets.

6.5.2. Analog audio output port

Certain parameters of analog audio output signal can be
adjusted as follows:
Current values are displayed in brackets.

6.5.3. HDMI output port

The properties panel of HDMI output port contains the
following adjustable settings:

6.5.4. HDMI input port

Only one setting belongs to HDMI input port: HDCP can be enabled or disabled.
Section 6. Web control – Using the built-in website

Volume:
from 0 dB to -52 dB (step 0.5 dB), from -54 dB
to -66 dB (step 2 dB); -69 dB; -72 dB; -78 dB
(default is 0 dB)

Balance:
from 0 to 100%, step 1% (default is
50%=center)

Gain:
from 0 to 24 dB, step 3 dB (default is 0 dB)

Invert phase: enabled/disabled

DC filter: enabled/disabled

Volume:
from 0 dB to -52 dB (step 0.5 dB), from -54 dB to
-66 dB (step 2 dB); -69 dB; -72 dB; -78 dB
(default is 0 dB)

Balance:
from 0 to 100%, step 1% (default is 50%=center)

Bass:
from 0 to 24, step 2 (default is 0)

Treble:
from 0 to 6, step 2 (default is 0)

Invert phase: enabled/disabled

HDMI mode:
Auto / DVI / HDMI 24 bit / HDMI 30 bit /
HDMI 36 bit


Color space:

Auto / RGB / YCbCr 4:4:4 / YCbCr: 4:2:2

Color range:
Auto / Compress / Expand

HDCP:
Auto / Always
