Apply a preset (run a preset)
Step 1. Navigate to the Settings/Presets tab.
Step 2. Select a preset from the drop-down menu (Apply Preset section). Preset description
Step 3. Click on the Apply selected preset button; the process indicator shows the status.
Example
After applying (processing) above preset, the result is the following:
Explanation: The last command could not be run due to a syntax error. The correct syntax
of the "unmuteSource" method can be found in section

6.9.6. Backup tab

Info: The feature is available only when connecting to the MODEX directly (as a Local Device).
The extender's settings can be saved and loaded to/from the computer. When creating a
backup of a MODEX, the following settings are stored:
Page 62 / 113
is loaded into the textbox and the number of the found commands is displayed, too.
The Apply process summary section contains the results:

The number of successfully run commands,

The number of failed commands which could not run, and

The errors during the apply process.
; P1 switching
CALL /MEDIA/VIDEO/XP1:switch(P1:P2)
CALL /MEDIA/VIDEO/XP1:unmuteSource(P1;)
CALL /MEDIA/AUDIO/XP1:switch(P4:P3;P6:P8)
CALL /MEDIA/AUDIO/XP1:unmuteSource(0;P6;)

Commands in preset:

Successful commands: 3

Failed commands:

Errors during the apply process: mE /%E001:Syntax error/r/n (line 4)
 All ports' settings (writeable properties' values) of all layers,

Crosspoint settings of all layers,

All EDID data stored in the User memory,

All Events (from the Event manager) and

Network settings.
4
1

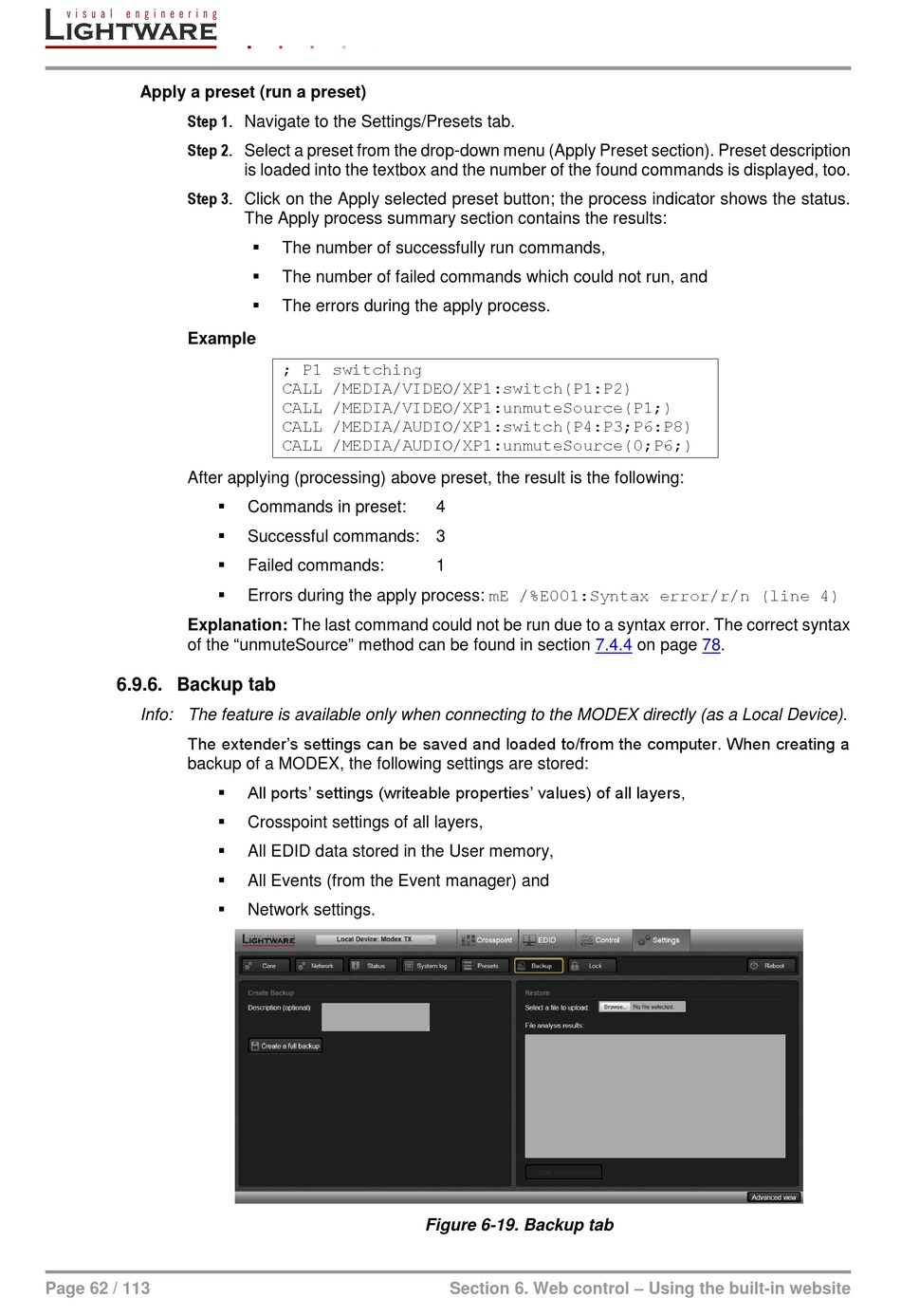

Figure 6-19. Backup tab
Section 6. Web control – Using the built-in website
7.4.4 on page 78.
