iPF8400S Basic Guide

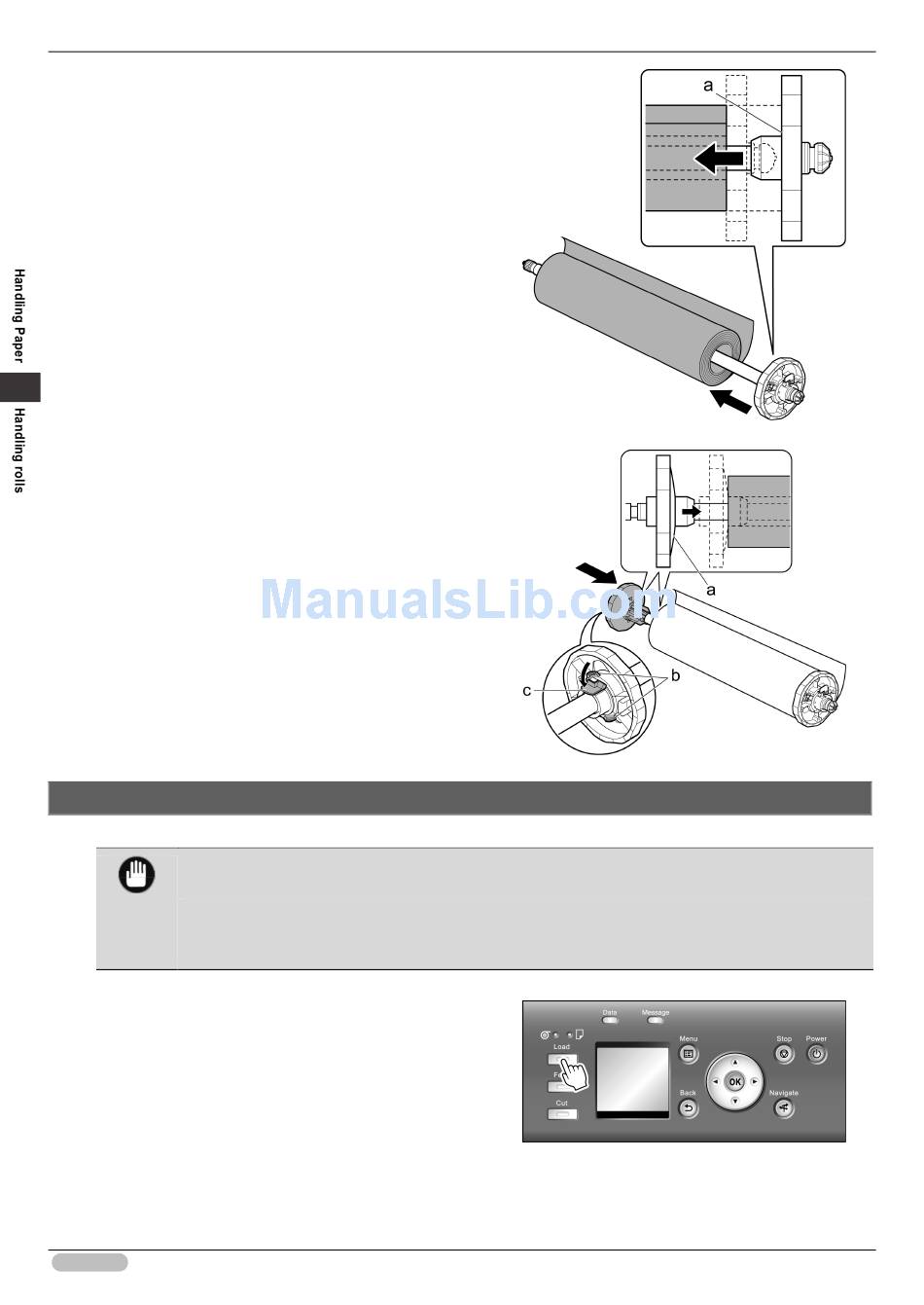

With the edge of the roll paper facing forward as
shown, insert the Roll Holder from the right of
the roll. Insert it firmly until the roll touches the
flange (a) of the Roll Holder, leaving no gap.
Insert the Holder Stopper from the left in the Roll
Holder as shown. Holding it at the position
shown (b), push it firmly in until the flange (a) of
the Holder Stopper touches the roll. Lock the
Holder Stopper lever (c) by pushing it down
toward the shaft side.
Loading Rolls in the Printer
Follow these steps to load rolls in the printer.
• Always load rolls when the printer is on. If the printer is off when you load a roll, the paper may
not be advanced correctly when you turn the printer on.
• Before loading a roll, confirm whether the inside of the Top Cover or the Ejection Guide is
soiled. If soiled, we recommend cleaning in advance. (See "Cleaning Inside the Top Cover.")
Press the Load button.
Press ▲ or ▼ to select Load Roll Paper, and then press the OK button.
