ELECTRONIC FUEL INJECTION

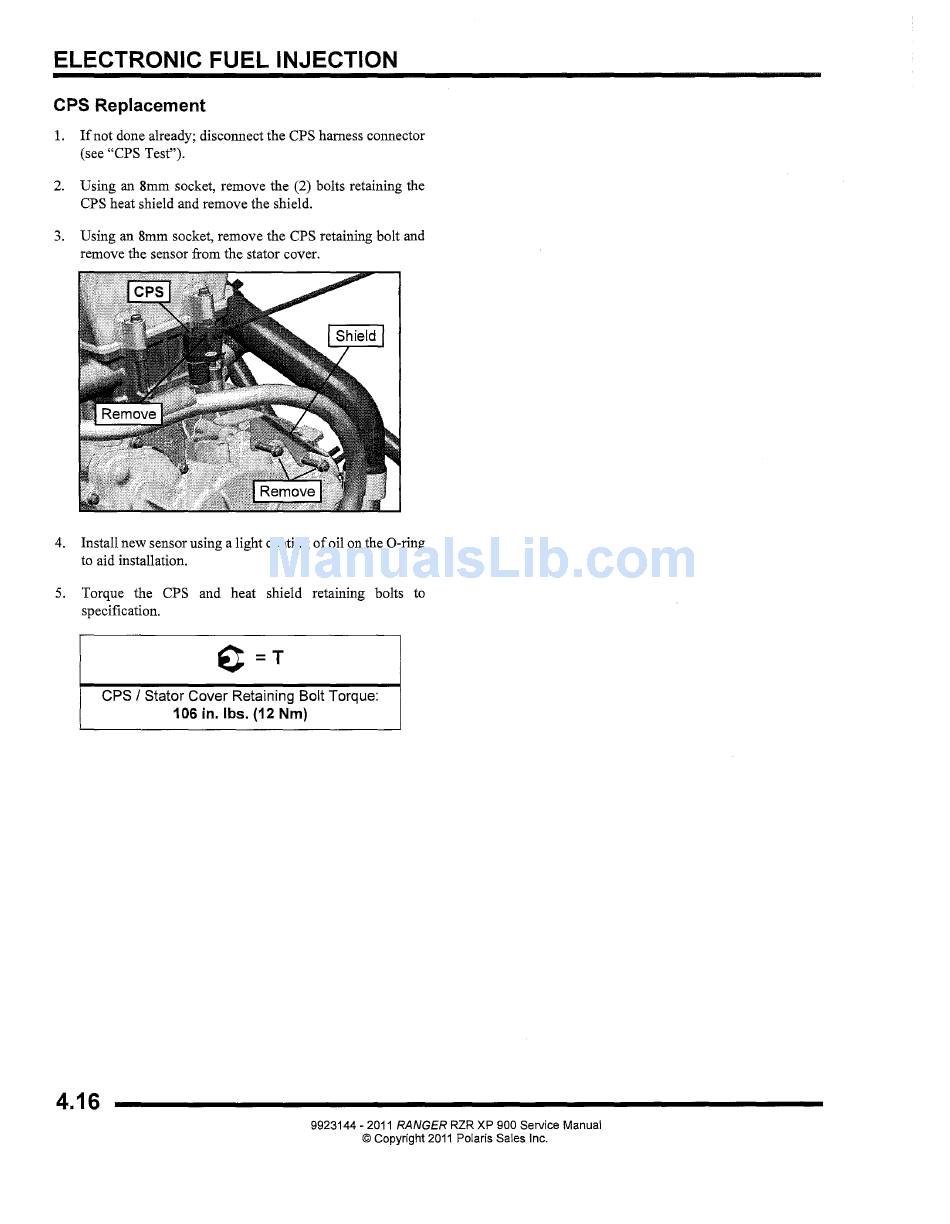

CPS Replacement
1. If not done already; disconnect the CPS harness connector
(see "CPS Test").
2. Using an 8mm socket, remove the (2) bolts retaining the
CPS heat shield and remove the shield.
3. Using an 8mm socket, remove the CPS retaining bolt and
remove the sensor from the stator cover.
4. Install new sensor using a light coating ofoil on the O-ring
to aid installation.
5. Torque the CPS and heat shield retaining bolts to
specification.
C
=T
CPS / Stator Cover Retaining Bolt Torque:
106 in. Ibs. (12 Nm)
4.16
