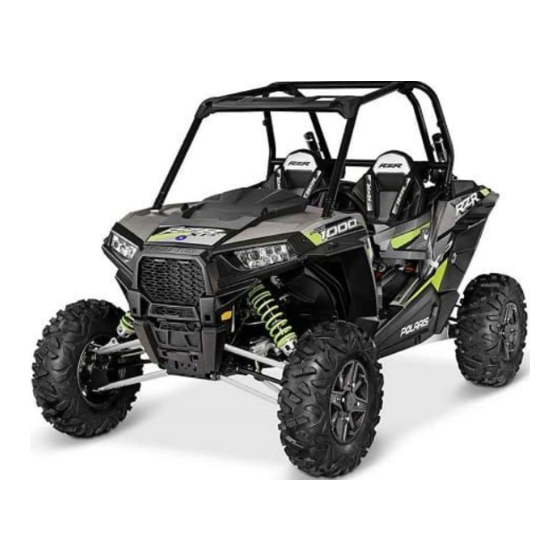

Polaris 2015 RZR XP 1000 EPS Owner's Manual

High lifter edition
Hide thumbs

Advertisement

Table of Contents

RZR® XP 1000 EPS
High Lifter Edition
Owner's Manual
for Maintenance and Safety

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2015 RZR XP 1000 EPS and is the answer not in the manual?

Questions and answers

Related Manuals for Polaris 2015 RZR XP 1000 EPS

Summary of Contents for Polaris 2015 RZR XP 1000 EPS

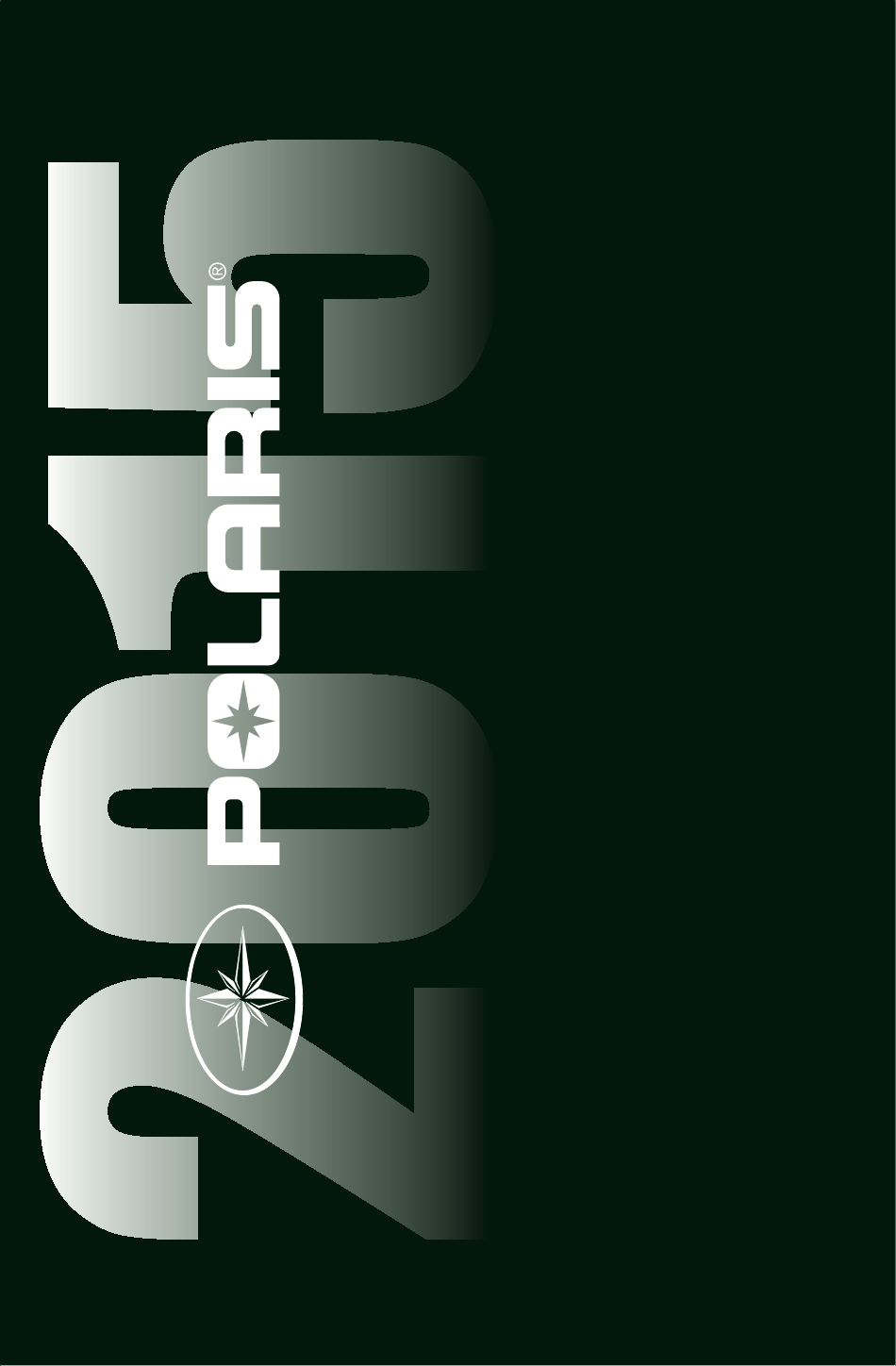

  • Page 1 RZR® XP 1000 EPS High Lifter Edition Owner's Manual for Maintenance and Safety...
  • Page 2 The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For videos and more information about a safe riding experience with your Polaris vehicle, scan this QR code with your smartphone.
  • Page 3 WELCOME Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for the latest news, new product introductions, upcoming events, career opportunities and more. Here at POLARIS we proudly produce an exciting line of utility and recreational products.
  • Page 4 QR code with your smartphone. POLARIS® and RZR® are trademarks of POLARIS Industries Inc. Copyright 2014 Polaris Industries Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to constant...

  • Page 5: Table Of Contents

    Specifications ......128 POLARIS Products..... 130 Troubleshooting .

  • Page 6: Introduction

    INTRODUCTION The RZR is an off-road vehicle. Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your area. The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used.
  • Page 7 Failure to heed the warnings and safety precautions contained in this manual can result in severe injury or death. Your POLARIS vehicle is not a toy and can be hazardous to operate. This vehicle handles differently than cars, trucks or other off-road vehicles.
  • Page 8 Record your vehicle's identification numbers and key number in the spaces provided. Remove the spare key and store it in a safe place. An ignition key can be duplicated only by ordering a POLARIS key blank (using your key number) and mating it with one of your existing keys.

  • Page 9: Safety

    SAFETY Safety Training Safety training is a top priority for POLARIS. POLARIS strongly encourages you and any family members who will be riding this vehicle to take a training course. ROHVA (Recreational Off-Highway Vehicle Association) provides both an online safety e-course and a hands-on safety course. To access this valuable training, visit www.rohva.org.
  • Page 10 Helmet Helmet Wearing a helmet can prevent a severe head injury. Whenever riding this POLARIS vehicle, always wear a helmet that meets or exceeds established safety standards. Approved helmets in the USA and Canada bear a U.S. Department of Transportation (DOT) label.
  • Page 11 Do not depend on eyeglasses or sunglasses for eye protection. Whenever riding this POLARIS vehicle, always wear shatterproof goggles or use a shatterproof helmet face shield. POLARIS recommends wearing approved Personal Protective Equipment (PPE) bearing markings such as VESC 8, V-8, Z87.1, or CE. Make sure protective eye wear is kept clean.
  • Page 12 If an informational or graphic label becomes illegible or comes off, contact your POLARIS dealer to purchase a replacement. Replacement safety labels are provided by POLARIS at no charge. The part number is printed on the label. Drive Responsibly...
  • Page 13 SAFETY Safety Labels and Locations Drive Responsibly Warning Drive Responsibly Avoid loss of control and rollovers: • Avoid abrupt maneuvers, sideways sliding, skidding or fishtailing, and never do donuts. • Slow down before entering a turn. • Avoid hard acceleration when turning, even from a stop.
  • Page 14 SAFETY Safety Labels and Locations Load/Passenger/Tire Pressure Warning WARNING • Passengers can be thrown off. This Load/Passenger/Tire Pressure can cause serious injury or death. Warning (in cargo box) • Never carry passengers in cargo box. WARNING IMPROPER TIRE PRESSURE OR OVERLOADING CAN CAUSE LOSS OF CONTROL RESULTING IN SERIOUS INJURY OR DEATH.
  • Page 15 Belt Debris Warning POLARIS dealer. 7177469 Air Box Caution CAUTION Use a Polaris approved air filter. The use of a non-Polaris approved air filter may cause engine damage. Before installing filter, ensure there is no dirt or debris in the clean side of the intake tube.
  • Page 16 SAFETY Safety Warnings WARNING Failure to operate this vehicle properly can result in a collision, loss of control, accident or rollover, which may result in serious injury or death. Heed all safety warnings outlined in this section of the owner’s manual and in the safety DVD provided with your vehicle.
  • Page 17 SAFETY Safety Warnings Failure to Inspect Before Operating Failure to inspect and verify that the vehicle is in safe operating condition before operating increases the risk of an accident. Always perform the pre-ride inspection before each use of your vehicle to make sure it's in safe operating condition.
  • Page 18 SAFETY Safety Warnings Carrying Multiple Passengers (RZR XP) Never carry a passenger until you have operated this vehicle for at least two hours and have completed the New Operator Driving Procedures outlined on pages 52-53. A passenger must always be seated in a passenger seat with seat belt secured.
  • Page 19 SAFETY Safety Warnings Passengers in the Cargo Box Carrying a passenger in the cargo box could result in a fall from the vehicle or contact with moving components. Never allow a passenger to ride in the cargo box. A passenger must always be seated in a passenger seat with seat belt secured.
  • Page 20 SAFETY Safety Warnings Turning Improperly Turning improperly could cause loss of traction, loss of control, accident or rollover. Always follow proper procedures for turning as described in this owner's manual. Avoid sharp turns. Never turn while applying heavy throttle. Never make abrupt steering maneuvers.
  • Page 21 SAFETY Safety Warnings Crossing Hillsides Driving on a sidehill is not recommended. Improper procedure could cause loss of control or rollover. Avoid crossing the side of any hill unless absolutely necessary. If crossing a hillside is unavoidable, always follow proper procedures as described in this owner's manual.
  • Page 22 SAFETY Safety Warnings Operating Improperly in Reverse Improperly operating in reverse could result in a collision with an obstacle or person. Always follow proper operating procedures as outlined in this manual. See page 60. Before shifting into reverse gear, always check for obstacles or people behind the vehicle.
  • Page 23 SAFETY Safety Warnings Operating Through Water Operating through deep or fast-flowing water can cause loss of traction, loss of control, rollover or accident. Never operate in fast-flowing water or in water that exceeds the floor level of the vehicle. Always follow proper procedures for operating in water as described in this owner’s manual.
  • Page 24 SAFETY Safety Warnings Improper Cargo Loading Overloading the vehicle or carrying cargo improperly may cause changes in stability and handling, which could cause loss of control or an accident. • Always follow the instructions in this owner’s manual for carrying cargo. See page 62.
  • Page 25 SAFETY Safety Warnings Exposure to Exhaust Engine exhaust fumes are poisonous and can cause loss of consciousness or death in a short time. Never start the engine or let it run in an enclosed area. Operate this vehicle only outdoors or in well-ventilated areas. Hot Exhaust Systems Exhaust system components are very hot during and after use of the vehicle.
  • Page 26 SAFETY Safety Warnings Equipment Modifications Your POLARIS vehicle is designed to provide safe operation when used as directed. Modifications to your vehicle may negatively impact vehicle stability. Failure of critical machine components may result from operation with any modifications, especially those that increase speed or power. This vehicle may become less stable at speeds higher than those for which it is designed.

  • Page 27: Features And Controls

    FEATURES AND CONTROLS Component Locations Snorkels ROPS Frame Cargo Winch Tow Loop Fuel Tank Doors Passenger Hand Hold Brake Gear Selector Cargo Box Tie-Down Pedal Points (4 corners) Throttle Pedal...
  • Page 28 FEATURES AND CONTROLS Switches AWD Switch Light Switch Winch Switch Ignition Switch 12V Accessory Outlet Remote Winch Switch Auxiliary Outlets This vehicle is equipped with one 12-volt accessory outlet. Use the outlet to power an auxiliary light or other optional accessories. For service, the dash outlet connection is under the dash.
  • Page 29 FEATURES AND CONTROLS Switches Headlight Switch Use the headlight switch to turn the lights on and HIGH off and to change the lights from high beam to low beam. The ignition switch must be in the ON position to operate the headlights. Press the top of the rocker switch for high beam.
  • Page 30 FEATURES AND CONTROLS Seats Before operating the vehicle, always push down on all seat backs to ensure the latches are secure. Seat Adjustments On seats equipped with an adjustment lever under the front edge of the seat, pull the lever to the left. Slide the seat forward or rearward to the desired position.
  • Page 31 FEATURES AND CONTROLS Passenger Hand Hold Always adjust the hand hold to a comfortable position for your passenger before operating. Make sure the adjustment pin and retainer are securely installed after making adjustments. 1. Remove the retainer from the end of the adjustment pin. 2.
  • Page 32 FEATURES AND CONTROLS Hood Remove the hood to access the radiator pressure cap and coolant overflow bottle. 1. Turn the hood fasteners 1/4 turn. 2. Grasp the upper hood edge and pull upward to disengage the fasteners. 3. Pivot the hood forward and lift upward to disengage the lower hood hooks.
  • Page 33 FEATURES AND CONTROLS Fuel Cap The fuel tank filler cap is located on the right-hand side of the vehicle near the passenger seat. When refueling, always use either leaded or unleaded gasoline with a minimum pump octane number of 87 R+M/2 octane. Do not use fuel with ethanol content greater than Fuel Cap 10 percent, such as E-85 fuel.
  • Page 34 POLARIS dealer. Seat Belts This POLARIS vehicle is equipped with seat belts for all riders. Always make sure the seat belts are secured for the operator and all passengers before riding. The driver's seat belt is equipped with a seat belt interlock.
  • Page 35 Retractor Latch Housings and/or replaced by an Housing authorized POLARIS dealer. 4. To clean dirt or debris from the seat belts, sponge the straps with mild soap and water. Do not use bleach, dye or household detergents. Rinse the entire length of the belt webbing. Use a garden...
  • Page 36 ON position. The EPS warning indicator will illuminate to indicate the EPS has shut down. If the light remains on after starting the engine, the EPS system is inoperative. See your authorized POLARIS dealer for service.
  • Page 37 (ROPS) on this vehicle meets (on ROPS or on OSHA 1928.53 rollover passenger hip bar) performance requirements. Always have your authorized POLARIS dealer thoroughly inspect the ROPS if it ever becomes damaged in any way. No device can assure occupant protection in the event of a rollover.
  • Page 38 FEATURES AND CONTROLS All Wheel Drive (AWD) System The All Wheel Drive system is controlled by the AWD switch. When the switch is on 2X4, the vehicle is in two-wheel drive at all times. When the switch is on AWD, the vehicle is in all wheel drive and the 4X4 indicator in the instrument cluster will be on.
  • Page 39 FEATURES AND CONTROLS Instrument Cluster NOTICE: High water pressure may damage components. Wash the vehicle by hand or with a garden hose using mild soap. Certain products, including insect repellents and chemicals, will damage the speedometer lens and other plastic surfaces. Do not use alcohol to clean the instrument cluster.
  • Page 40 EPS Warning This indicator illuminates briefly when the key is turned to the ON position. If the light remains on, the EPS system is inoperative. See your authorized POLARIS dealer for service. Neutral This lamp illuminates when the transmission is in neutral and the ignition key is in the ON position.
  • Page 41 If this occurs, take the vehicle to your POLARIS dealer for proper diagnosis. The information center is set to display standard units of measurement and a 12-hour clock at the factory.
  • Page 42 FEATURES AND CONTROLS Instrument Cluster Rider Information Center 2. Fuel Gauge - The segments of the fuel gauge show the level of fuel in the fuel tank. When the last segment clears, a low fuel warning is activated. All segments including the fuel icon will flash. Refuel immediately.
  • Page 43 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Use the MODE button to toggle through the information area options. Display Units (Standard/Metric) MODE Button The display can be changed to show either standard or metric units of measurement for each of the following settings. Tip: To exit the set-up mode, turn the key off.
  • Page 44 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Clock Mode Tip: The clock must be reset any time the battery has been disconnected or dis- charged. 1. Turn the key to the ON position. Use the MODE button to toggle to the odometer display.
  • Page 45 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Odometer Mode The odometer records and displays the distance traveled by the vehicle. Trip Meter Mode The trip meter records the distance traveled by the vehicle if reset before each trip. To reset, select the trip meter mode. Press and hold the MODE button until the meter resets to zero.
  • Page 46 Diagnostic Display Mode The EFI diagnostic display mode is for informational purposes only. Please see your POLARIS dealer for all major repairs. The diagnostic mode is accessible only when the check engine warning indicator activates after the key has been turned on. Leave the key on if you want to view the active code (failure code).
  • Page 47 3. Record the three numbers displayed in the gear position, clock and odometer displays. 4. Press the MODE button to advance to the next error code. 5. Press and hold the MODE button to exit the diagnostics code menu. 6. See an authorized POLARIS dealer for code details and diagnosis.

  • Page 48: Operation

    Vehicle Break-in Period The break-in period for your new POLARIS vehicle is the first 25 hours of operation, or the time it takes to use the first two tanks full of gasoline. Clutch and drive belt break-in periods vary depending on operating conditions.
  • Page 49 OPERATION Vehicle Break-in Period Engine and Drivetrain Break-in 7. Carry only light loads. 8. During the break-in period, change both the oil and the filter at 25 hours or one month. 9. Check fluid levels of transmission and all gearcases after the first 25 hours of operation and every 100 hours thereafter.
  • Page 50 OPERATION Pre-Ride Inspection Failure to inspect and verify that the vehicle is in safe operating condition before operating increases the risk of an accident. Always inspect the vehicle before each use to make sure it's in safe operating condition. Item Remarks Page Brake system/pedal travel...
  • Page 51 4. Engine exhaust fumes are poisonous. Never start the engine or let it run in an enclosed area. 5. Never operate with accessories not approved by POLARIS for use on this vehicle. 6. Operate this vehicle off-road only. Never operate the vehicle on pavement or on any public street, road or highway, including dirt and gravel roads.
  • Page 52 OPERATION Starting the Engine 1. Position the vehicle on a level surface outdoors or in a well-venti- lated area. 2. Sit in the driver's seat and fasten the seat belt. Always make sure all cab doors are closed and latched when riding in this vehicle. 3.
  • Page 53 Respect the environment in which you ride your vehicle. Find out where the designated riding areas are by contacting your POLARIS dealer, a local riding club, or local officials. Help keep our trails open for recreational vehicle use. As an off-road enthusiast, you represent the sport and can set a good example (or a poor example) for others to follow.
  • Page 54 OPERATION New Operator Driving Procedures 1. Read and understand the owner's manual and all warning and instruction labels before operating this vehicle. 2. Visit the Recreational Off-Highway Vehicle Association web site (rohva.org) and take the free on-line training course. Hands-on training is also available through ROHVA.
  • Page 55 OPERATION New Operator Driving Procedures 12. Apply the brakes and shift into low gear. 13. Check your surroundings and determine your path of travel. 14. Keeping both hands on the steering wheel, slowly release the brakes and depress the throttle with your right foot to begin driving. 15.
  • Page 56 OPERATION Driving with Passengers 1. Complete the New Operator Driving Procedures outlined on pages 52-53. 2. Perform the pre-ride inspection. See page 3. Do not carry more than one passenger in a 2-seat vehicle. Additional passengers can affect the operator’s ability to steer and operate the controls. 4.
  • Page 57 OPERATION Driving on Slippery Surfaces When driving on slippery surfaces such as wet trails, loose gravel, or ice, be alert for the possibility of skidding and sliding. Follow these precautions when encountering slippery conditions: 1. Slow down before entering slippery areas. 2.
  • Page 58 OPERATION Driving Uphill Whenever traveling uphill, follow these precautions: 1. Always check the terrain carefully before ascending a hill. Never drive on hills with excessively slippery or loose surfaces. 2. Avoid excessively steep hills. If ascending a steeper grade is unavoidable, engage all-wheel drive before ascending.
  • Page 59 OPERATION Driving on a Sidehill (Sidehilling) Driving on a sidehill is not recommended. Improper procedure could cause loss of control or rollover. Avoid crossing the side of any hill unless absolutely necessary. If crossing a hill is unavoidable, follow these precautions: 1.
  • Page 60 OPERATION Driving Through Water Your vehicle can operate through water with a maximum recommended depth equal to floor level. Follow these precautions when operating through water: 1. Determine water depth and current before entering water. 2. Choose a crossing where the Floor Level water level is lowest and where both banks have...
  • Page 61 OPERATION Driving Over Obstacles Follow these precautions when operating over obstacles: 1. Always check for obstacles before operating in a new area. 2. Look ahead and learn to read the terrain. Be constantly alert for hazards such as logs, rocks and low hanging branches. 3.
  • Page 62 OPERATION Driving in Reverse Follow these precautions when operating in reverse: 1. Always check for obstacles or people behind the vehicle. 2. Apply the throttle lightly. Never open the throttle suddenly. 3. Back slowly. 4. Apply the brakes lightly for stopping. 5.
  • Page 63 OPERATION Parking on an Incline A rolling vehicle can result in serious injury. Avoid parking on an incline. If parking on an incline is unavoidable, follow these precautions: 1. Apply the brakes. 2. Place the transmission in PARK. 3. Turn the engine off. 4.
  • Page 64 OPERATION Hauling Cargo WARNING Overloading the vehicle or carrying cargo improperly can alter vehicle handling and may cause loss of control or brake instability. Always follow these precautions when hauling cargo: Never exceed the stated load capacity for this vehicle. REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING WHEN HAULING CARGO.
  • Page 65 OPERATION Hauling Cargo Your POLARIS vehicle has been designed to carry a specific capacity. Reduce speed and allow a greater distance for braking when carrying cargo. Loads should be centered and carried as low as possible in the box. For stability on rough or hilly terrain, reduce both speed and cargo.
  • Page 66 OPERATION Towing WARNING Towing improperly can alter vehicle handling and may cause loss of control or brake instability. The tow loop on the rear of the vehicle is provided for recovery use ONLY. Tow a vehicle ONLY of equal or lesser size and weight. When towing a disabled RZR vehicle, place the disabled vehicle's transmission in neutral.

  • Page 67: Winch Guide

    WINCH GUIDE These safety warnings and instructions apply if your vehicle came equipped with a winch or if you choose to add an accessory winch to your vehicle. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.
  • Page 68 WINCH GUIDE Winch Safety Precautions 10. Always apply your vehicle’s park brake and/or park mechanism to hold the vehicle in place during winching. Use wheel chocks if needed. 11. Always align the vehicle and winch with the load directly in front of the vehicle as much as possible.
  • Page 69 WINCH GUIDE Winch Safety Precautions 18. Never release the clutch on the winch when the winch cable is under load. 19. Never use the winch for lifting or transporting people. 20. Never use the winch to hoist or suspend a vertical load. 21.
  • Page 70 WINCH GUIDE Winch Operation Read the Winch Safety Precautions in the preceding pages before using your winch. Tip: Consider practicing the operation and use of your winch before you actually need to use it in the field. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.
  • Page 71 WARNING! Replace the winch cable at the first sign of damage to prevent SEVERE INJURY or DEATH in the event of failure. For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer.
  • Page 72 WINCH GUIDE Winch Operation 5. Never remove the hook strap from the hook. 6. Release the winch clutch and pull out the winch cable. 7. Pulling out as much cable as possible maximizes the winch’s pulling capacity. Always be sure that at least five (5) full turns of winch cable are wrapped around the winch drum at all times.
  • Page 73 WINCH GUIDE Winch Operation 11. The ONLY time a winch-equipped vehicle should be moving when using the winch is when that vehicle itself is stuck. The winch- equipped vehicle should NEVER be in motion to “shock” load the winch cable in an attempt to move a second stuck vehicle. See the Shock Loading section on page 74.
  • Page 74 WINCH GUIDE Winch Operation 14. The winch motor may become hot during winch use. If you winch for more than 45 seconds, or if the winch stalls during operation, stop winching and permit the winch to cool down for 10 minutes before using it again.
  • Page 75 WINCH GUIDE Winch Cable Care For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer. WARNING! Use of worn or damaged cable could lead to sudden failure and SEVERE INJURY.
  • Page 76 WINCH GUIDE Shock Loading WARNING! Your winch cable is very strong but it is NOT designed for dynamic, or “shock” loading. Shock loading may tension a winch cable beyond its strength and cause the cable to break. The end of a broken winch cable under such high loading can cause SEVERE INJURY or DEATH to you and other bystanders.
  • Page 77 3. Never work on your winch without first disconnecting the battery connections to prevent accidental activation of the winch. 4. For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer.

  • Page 78: Emission Control Systems

    CFR 205) and local noise level requirements. Operation on Public Lands in the U.S.A. Your POLARIS vehicle has a spark arrester that was tested and qualified to be in accordance with the USFS standard 5100-1C. Federal law requires that this spark arrester be installed and functional when the vehicle is operated on public lands.

  • Page 79: Maintenance

    Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, use genuine POLARIS parts available from your POLARIS dealer. Record maintenance and service in the Maintenance Log beginning on page 142.
  • Page 80 E Emission-related service (Failure to conduct this maintenance will not void the emissions warranty but may affect emissions.) D Have an authorized POLARIS dealer perform these services. WARNING! Improperly performing the procedures marked with a “D” could result in component failure and lead to serious injury or death. Have an...
  • Page 81 Monthly 150 (250) Inspect; replace if (if equipped) necessary Air filter 25 H 500 (800) Replace filter Perform these procedures more often for vehicles subjected to severe use. E Emission-Related Service D Have an authorized POLARIS dealer perform these services.
  • Page 82 Spark plugs 100 H 12 M 1000 (1600) Inspect; replace as needed, torque to specification Perform these procedures more often for vehicles subjected to severe use. E Emission-Related Service D Have an authorized POLARIS dealer perform these services.
  • Page 83 Replace coolant D Toe adjustment Inspect periodically; adjust when parts are replaced Headlight aim Adjust as needed Perform these procedures more often for vehicles subjected to severe use. E Emission-Related Service D Have an authorized POLARIS dealer perform these services.
  • Page 84 MAINTENANCE Lubrication Recommendations Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart beginning on page 77, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should be lubricated at the general lubrication interval. Item Lube Method...
  • Page 85 MAINTENANCE Lubrication Recommendations Front Suspension Front Control Arm Pivot Bushings (3 per side) Stabilizer Bar Bushings (one on each side of vehicle)
  • Page 86 10W-50 4-Cycle Oil (-18 C to +49 Oil may need to be changed more frequently if POLARIS oil is not used. Do not use automotive oil. Follow the manufacturer's recommendations for ambient temperature operation. See page 130 for the part numbers of POLARIS products.
  • Page 87 MAINTENANCE Engine Oil Always check and change the oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 77. Always use the recommended engine oil. Oil Check Always check the oil when the engine is cold. If the engine is hot when the oil is checked, the level will appear to be overfull.
  • Page 88 MAINTENANCE Engine Oil Oil and Filter Change Always change the oil and filter at the intervals outlined in the Periodic Maintenance Chart beginning on page 77. Always change the oil filter whenever changing oil. Access the oil check dipstick through the right rear wheel well. Access the oil fill cap through the service access panel on the floor of the cargo box.
  • Page 89 MAINTENANCE Engine Oil Oil and Filter Change 6. Lubricate the o-ring on the new filter with a film of fresh engine oil. Check to make sure the o-ring is in good condition. 7. Install the new filter and turn by hand until the filter gasket contacts the sealing surface, then turn and additional 1/2 turn.
  • Page 90 MAINTENANCE Transmission (Main Gearcase) Always check and change the fluid at the intervals outlined in the Periodic Maintenance Chart beginning on page 77. Refer to the Gearcase Specifications Chart on page 92 for recommended lubricants, capacities and torque specifications. Fluid Check The fill plug is located on the rear of the gearcase.
  • Page 91 MAINTENANCE Transmission (Main Gearcase) Fluid Change The drain plug is located on the bottom of the gearcase. Access the drain plug through the drain hole in the skid plate. 1. Remove the fill plug. 2. Place a drain pan under the drain plug. 3.
  • Page 92 MAINTENANCE Demand Drive Unit (Front Gearcase) Always check and change the fluid at the intervals outlined in the Periodic Maintenance Chart beginning on page 77. Refer to the Gearcase Specifications Chart on page 92 for recommended lubricants, capacities and torque specifications. Fluid Check The fill plug is located on the bottom right side of the demand...
  • Page 93 MAINTENANCE Demand Drive Unit (Front Gearcase) Fluid Change The drain plug is located on the bottom of the gearcase. 1. Remove the fill plug. 2. Place a drain pan under the drain plug. 3. Remove the drain plug. Allow the fluid to drain completely. 4.
  • Page 94 MAINTENANCE Gearcases Gearcase Specification Chart Use of other fluids may result in improper operation of components. See page 130 for the part numbers of POLARIS products. Gearcase Lubricant Capacity Fill Plug Drain Plug Torque Torque Transmission AGL Gearcase 44 oz.
  • Page 95 MAINTENANCE Spark Plugs Spark Plug Removal and Replacement 1. Remove the cargo box access panel. 2. Clean the area around the spark plugs before removing the plugs. 3. Remove the spark plug caps. 4. Using the spark plug wrench provided in the tool kit, remove the plugs by rotating them counter-clockwise.
  • Page 96 MAINTENANCE Fuse/Relay Center If the engine stops or will not start, if the power steering stops working (if equipped), or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse.
  • Page 97 POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix. This antifreeze is already premixed and ready to use. Do not dilute with water. See page 130 for the part numbers of POLARIS products. To ensure that the coolant maintains its ability to protect the engine, we recommend that the system be completely drained every five (5) years and fresh Antifreeze 50/50 Premix added.
  • Page 98 MAINTENANCE Cooling System Radiator and Cooling Fan Check and clean the screen and radiator fins daily when operating in mud and water. Interference with the radiator air flow can lead to overheating and consequent engine damage. Do not obstruct or deflect air flow through the radiator by installing unauthorized accessories in front of the radiator or behind the cooling fan.
  • Page 99 MAINTENANCE Cooling System Radiator Coolant Level/Changing Coolant This procedure is required only if the cooling system has been drained for maintenance and/or repair. If the overflow bottle has run dry, the level in the radiator should also be inspected. CAUTION! Escaping steam can cause burns. Never remove the pressure cap while the engine is warm or hot.
  • Page 100 5. Reinstall the cap. Tip: If coolant must be added often, or if the overflow bottle runs completely dry, there may be a leak in the system. Have the cooling system inspected by your POLARIS dealer.
  • Page 101 • See your dealer as recommended in the owner’s manual and on safety labels. • This PVT system is intended for use on POLARIS products only. Do not install it in any other product. • Always make sure the PVT housing is securely in place during operation.
  • Page 102 MAINTENANCE POLARIS Variable Transmission (PVT) System Belt Replacement/Debris Removal If a belt fails, always clean any debris from the duct and from the clutch and engine compartments when replacing the belt. WARNING! Failure to remove ALL debris when replacing the belt could result in vehicle damage, loss of control and severe injury or death.
  • Page 103 MAINTENANCE POLARIS Variable Transmission (PVT) System Belt Replacement/Debris Removal 4. Remove all debris from the entire clutch air duct passage. 5. Check for signs of damage to the clutch cover seal. Inspect the clutch box for signs of water injestion. Replace damaged seals.
  • Page 104 MAINTENANCE Filter Systems Air Filter Always change the air filter at the Cover Clips intervals outlined in the Periodic Maintenance Chart beginning on page 77. 1. Remove the cargo box access panel. 2. Clean all dirt and debris from the air box area. 3.
  • Page 105 7. Reinstall the air filter (if clean) or install a new air filter (if soiled). Do not attempt to clean the air filter. NOTICE: Use of a non-POLARIS-approved air filter may cause engine damage. Always use a POLARIS-approved replacement filter.
  • Page 106 MAINTENANCE Spark Arrester WARNING Failure to heed the following warnings while servicing the spark arrester could result in serious injury or death. • Do not perform clean-out immediately after the engine has been run, as the exhaust system becomes very hot. Serious burns could result from contact with the exhaust components.
  • Page 107 MAINTENANCE Spark Arrester Periodically clean the spark arrester to remove accumulated carbon. A plugged spark arrester will affect engine performance. Clean the spark arrester daily when driving in mud and water. Replace a cracked or damaged arrester before operating. 1. Remove the arrester retaining bolt and nut. 2.
  • Page 108 MAINTENANCE Brakes The front and rear brakes are hydraulic disc type brakes activated by the brake pedal. See page 35. Always check brake pedal travel and the brake fluid reservoir level before each use of the vehicle. When applied, the brake pedal should feel firm.
  • Page 109 MAINTENANCE Brakes Brake Inspection 1. Check the brake system for fluid leaks. 2. Check the brake pedal for excessive travel or a spongy feel. 3. Check the friction pads for wear, damage and looseness. 4. Check brake discs for signs of cracks, excessive corrosion, warping or other 0.030”...
  • Page 110 Inspect the level of the brake fluid before each operation. If the fluid level is low add DOT 4 brake fluid only. See page 130 for the part numbers of POLARIS products. WARNING! After opening a bottle of brake fluid, always discard any unused portion.
  • Page 111 MAINTENANCE Suspension Settings Front/Rear Spring Preload The factory setting is appropriate for nearly all riding conditions. If desired, the suspension may be adjusted to maintain vehicle clearance height when carrying loads. Front Shock Preload Rear Shock Preload Measurement Measurement Factory Preload Settings RZR XP High Lifter Front 16.438 inches (41.75 cm)
  • Page 112 MAINTENANCE Suspension Settings Front/Rear Spring Preload Walker Evans Shock Preload Adjustment Follow these guidelines if you make adjustments to this suspension. • Always return the suspension to the factory setting after the load is removed from the vehicle. The increased suspension height will negatively impact vehi- cle stability when operating without a load.
  • Page 113 Turn the adjusting ring to the right (2) to decrease preload for a softer ride. WARNING! Uneven adjustment may cause poor handling of the vehicle, which could result in an accident. Always adjust both the left and right spring preloads equally or have your POLARIS dealer perform the adjustments. Adjusting Ring Rear...
  • Page 114 MAINTENANCE Suspension Settings Front/Rear Shock Compression The compression damping clicker knob is located at the top of the shock reservoir. When the knob is turned clockwise until it stops, the damping is in the fully closed position. When turned counter-clockwise until it stops, the damping is in the fully open position.
  • Page 115 Improper tire inflation or the use of non-standard size or type of tires may adversely affect vehicle handling, which could result in vehicle damage or personal injury. Always maintain proper tire pressure. Always use POLARIS- approved size and type of tires for this vehicle when replacing tires.
  • Page 116 Always ensure that all nuts are torqued to specification. Do not service axle nuts that have a cotter pin installed. See your POLARIS dealer. 3. Attach the wheel nuts and washers and finger tighten. 4. Carefully lower the vehicle to the ground.
  • Page 117 MAINTENANCE Lights Headlight and taillight lenses become dirty during normal operation. Clean all lights frequently to ensure a clear field of vision as well as visibility to other vehicles. Tip: If an LED headlamp has moisture or fogging inside, disconnect the wiring harness from the headlamp(s) for a few days to allow the moisture to clear out.
  • Page 118 MAINTENANCE Lights Headlight Beam Adjustment The headlight beam can be adjusted slightly upward or downward and to the left or right. 1. Position the vehicle on a level surface. The headlight should be approximately 25 ft. (7.6 m) from a wall. 25 ft.
  • Page 119 MAINTENANCE Vehicle Immersion NOTICE: If your vehicle becomes immersed, major engine damage can result if the machine is not thoroughly inspected. Take the vehicle to your dealer before starting the engine. If it’s impossible to take your vehicle to a dealer before starting it, follow the steps outlined below.
  • Page 120 2. Lightly turn the steering wheel left and right. 3. There should be 0.8-1.0” (20-25 mm) of freeplay. 4. If there is excessive freeplay or strange noises, or if the steering feels rough or “catchy,” have the steering system inspected by an authorized POLARIS dealer.
  • Page 121 MAINTENANCE Battery WARNING Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last. Your vehicle has a maintenance-free battery.
  • Page 122 Whenever the vehicle is not used for a period of three months or more, recharge the battery about once a month to make up for normal self- discharge (see page 121), or use a POLARIS Battery Tender, which can be left connected during the storage period. Battery Tender will automatically charge the battery if voltage drops below a pre- determined point.
  • Page 123 MAINTENANCE Battery Battery Charging The following battery charging instructions apply only to the installation of a maintenance-free battery. Read all instructions before proceeding with the installation of this battery. The maintenance-free battery is already filled with electrolyte and has been fully charged at the factory. Never pry the battery caps off or add any other fluid to this battery.
  • Page 124 MAINTENANCE Battery Battery Charging Always verify battery condition before and 1-2 hours after the end of charging. Charge Time State of Voltage Action (Using constant current Charge charger @ standard amps specified on top of battery) 100% 12.8-13.0 volts None, check at 3 None required mos.
  • Page 125 Do not allow these types of products to contact the vehicle. The best and safest way to clean your POLARIS vehicle is with a garden hose and a pail of mild soap and water. 1. Use a professional-type washing cloth, cleaning the upper body first and the lower parts last.
  • Page 126 • Labels and decals • Electrical components and wiring • Air intake components If warning and safety labels are damaged, contact your POLARIS dealer for free replacement. Grease all zerk fittings immediately after washing. Allow the engine to run for a while to evaporate any water that may have entered the engine or exhaust system.
  • Page 127 123. Stabilize the Fuel 1. Fill the fuel tank. 2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel Stabilizer. Follow the instructions on the container for the recom- mended amount. Carbon Clean removes water from fuel systems, stabilizes fuel and removes carbon deposits from pistons, rings, valves and exhaust systems.
  • Page 128 6. If POLARIS fuel system additive is not used, fuel tank, fuel lines, and injectors should be completely drained of gasoline. 7. Reinstall the spark plug caps to the spark plugs.
  • Page 129 Secure or remove all cargo, and inspect the unit for loose parts prior to transport. 4. Always tie the frame of the POLARIS vehicle to the transporting unit securely with suitable straps or rope. Do not attach tie straps to the front control arm bolt pockets.

  • Page 130: Specifications

    SPECIFICATIONS RZR XP 1000 EPS High Lifter Edition Gross Vehicle Weight 2470 lbs. (1120 kg) Dry Weight 1545 lbs. (701 kg) Test GVW - Rollover 2750 lbs. (1247 kg) per OSHA 29 CFR 1928.53 Protection System (ROPS) Rear Cargo Box Capacity 300 lbs.
  • Page 131 Auxiliary DC Outlet Output Gear Ratios Rear High Gear 12.05 Low Gear 25.59 Reverse 22.92 Front (including front drive) High Gear 12.82 Low Gear 27.24 Reverse 24.41 Drive Ratio - Front 3.182:1 Clutching Please see your POLARIS dealer for clutching specifications.

  • Page 132: Polaris Products

    POLARIS PRODUCTS Part Description Number Engine Lubricant 2870791 Fogging Oil (12 oz./355 ml Aerosol) 2876244 PS-4 Full Synthetic 5W-50 4-Cycle Oil (qt./.95 l) 2876245 PS-4 Full Synthetic 5W-50 4-Cycle Oil (gal./3.8 l) 2878920 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (qt./.95 l) 2878919 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (gal./3.8 l)

  • Page 133: Troubleshooting

    TROUBLESHOOTING Drive Belt Wear/Burn Possible Cause Solution Driving onto a pickup or Use low range during loading. tall trailer in high range Starting out going up a Use low range. See warnings on page 56. steep incline Driving at low RPM or Drive at a higher speed or use low range more frequently.
  • Page 134 TROUBLESHOOTING Engine Doesn't Turn Over Possible Cause Solution Low battery voltage Recharge the battery to 12.8 VDC, verify that accessory power demand does not exceed engine electrical output Loose battery connections Check all connections and tighten Loose solenoid connections Check all connections and tighten Loose electronic control box connections Inspect, clean, reinstall connectors Mechanical failure...
  • Page 135 TROUBLESHOOTING Engine Pings or Knocks Possible Cause Solution Poor quality or low octane fuel Replace with recommended fuel Incorrect ignition timing See your dealer Incorrect spark plug gap or heat range Set gap to specs or replace plugs Engine Runs Irregularly, Stalls or Misfires Possible Cause Solution Plugged spark arrester...
  • Page 136 TROUBLESHOOTING Engine Stops or Loses Power Possible Cause Solution Out of fuel Refuel Kinked or plugged fuel tank vent line or Inspect and replace filter Water is present in fuel Replace with new fuel Fouled or defective spark plugs Inspect, clean and/or replace spark plug Worn or defective spark plug wires See your dealer Incorrect spark plug gap or heat range...

  • Page 137: Warranty

    Warranty Coverage And Exclusions: Limitations Of Warranties And Remedies This POLARIS limited warranty excludes any failures that are not caused by a defect in material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental damage, normal wear and tear, abuse or improper handling.
  • Page 138 MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE.
  • Page 139 If you purchase from a private party: If you purchase a POLARIS product from a private party, to be kept and used outside of the country in which the product was originally purchased, all warranty coverage will be denied.
  • Page 140 Please work with your dealer to resolve any warranty issues. Should your dealer require any additional assistance, they will contact the appropriate person at POLARIS. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or in different countries.
  • Page 141 This EPA emissions warranty period is extended for at least as long as the standard factory warranty that Polaris provides on the vehicle as a whole. The EPA emissions warranty period does not further extend if you purchase...
  • Page 142 *As related to the evaporative emission control system. The exclusive remedy for breach of this limited warranty shall be, at the exclusive option of POLARIS, repair or replacement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.
  • Page 143 POLARIS dealer to perform any service that may be necessary for your vehicle. POLARIS also recommends that you use only POLARIS parts. It is a potential violation of the Clean Air Act if a part supplied by an aftermarket parts manufacturer reduces the effectiveness of the vehicle's emission controls.

  • Page 144: Maintenance Log

    MAINTENANCE LOG Use the following chart to record periodic maintenance. DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS...
  • Page 145 MAINTENANCE LOG DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS...

  • Page 146: Index

    INDEX Access Panel Changing Gears ....34 Cargo Box ....31 Chart, Periodic Maintenance .
  • Page 147 INDEX Gap, Spark Plug ....92 Gasoline Handling ....22 Engine Break-In ... . . 46-47 Gear Selector .
  • Page 148 Plugs, Spark ....92-93 Lubrication Recommendations . . 82-83 Polaris Products ....130 Polishing the Vehicle... . 124 Power Steering.
  • Page 149 INDEX Service Access Panels... . 31 Tachometer ....43 Severe Use Definition ... . 77 Taillight.
  • Page 150 12 or who cannot comfortably reach the floor and hand holds. • On paved surfaces - pavement may seriously affect handling and control. • With non-Polaris approved accessories - they may seriously affect stability. ALWAYS: • Wear your seat belt. Vehicle rollover can cause severe injury or death.

Table of Contents
