ENGINE I COOLING

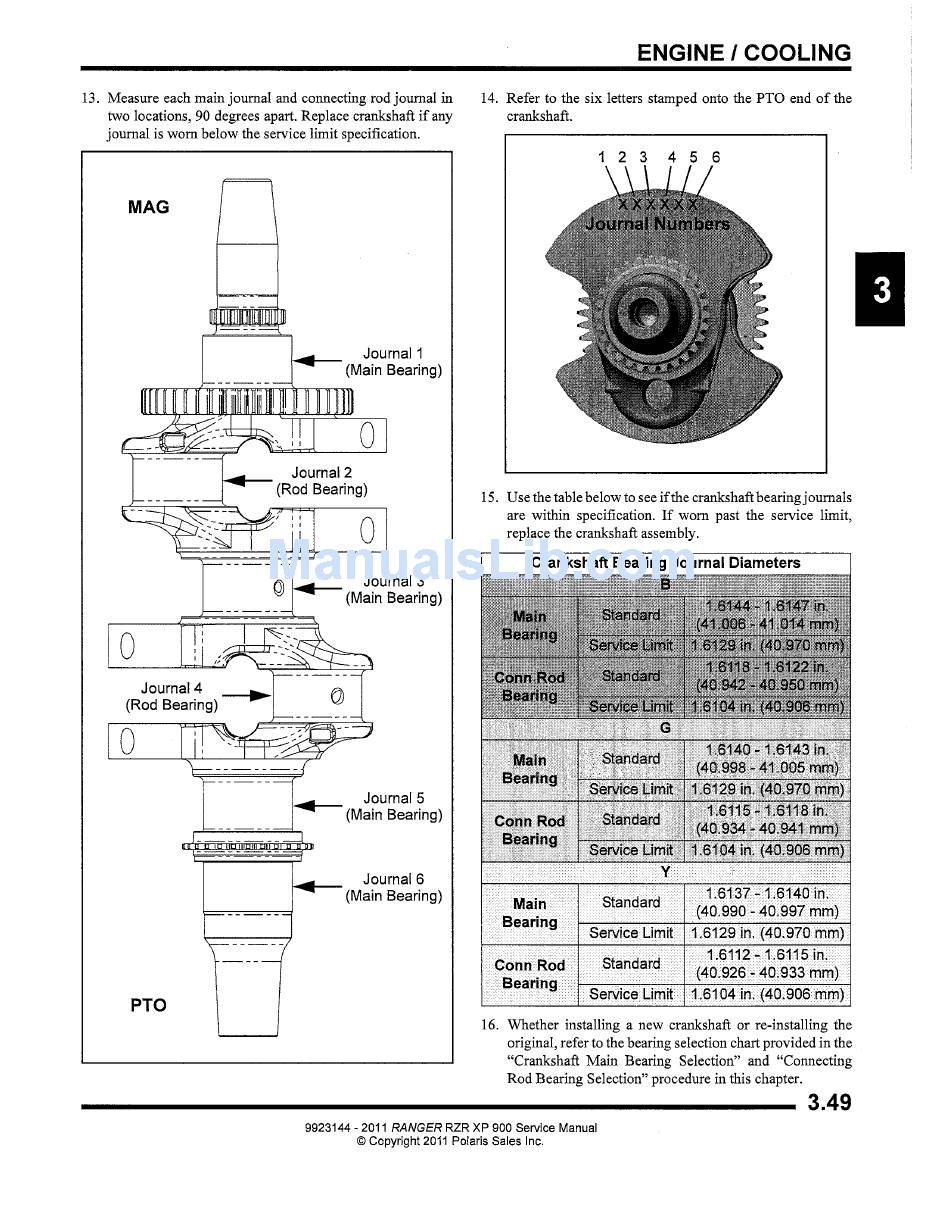

13. Measure each main journal and connecting rod journal in
two locations, 90 degrees apart. Replace crankshaft if any
journal is worn below the service limit specification.
14. Refer to the six letters stamped onto the PTO end of the
crankshaft.
1 2 3 4 5 6
I
15. Use the table below to see ifthe crankshaft bearingj ournals
are within specification. If worn past the service limit,
replace the crankshaft assembly.
Journal 5
(Main Bearing)
Journal 1
(Main Bearing)
Journal 6
(Main Bearing)
PTO
MAG
16. Whether installing a new crankshaft or re-installing the
original, refer to the bearing selection chart provided in the
"Crankshaft Main Bearing Selection" and "Connecting
Rod Bearing Selection" procedure in this chapter.
3.49
