Lower Duplex Rotational Adjustment

This adjustment sets the Lower Duplex Handoff offset. Other duplex position
offsets are adjusted based on the resulting value of the Duplex Handoff offset.
Adjustment Procedure
1.
From Diagnostics, select Printer and then Step Test.
2.
Click on the Move lower duplex to handoff position button. The flipper will
rotate and re-register at the handoff position.
3.
Open a second instance of diagnostics and go to the Laminator Values
window.
4.

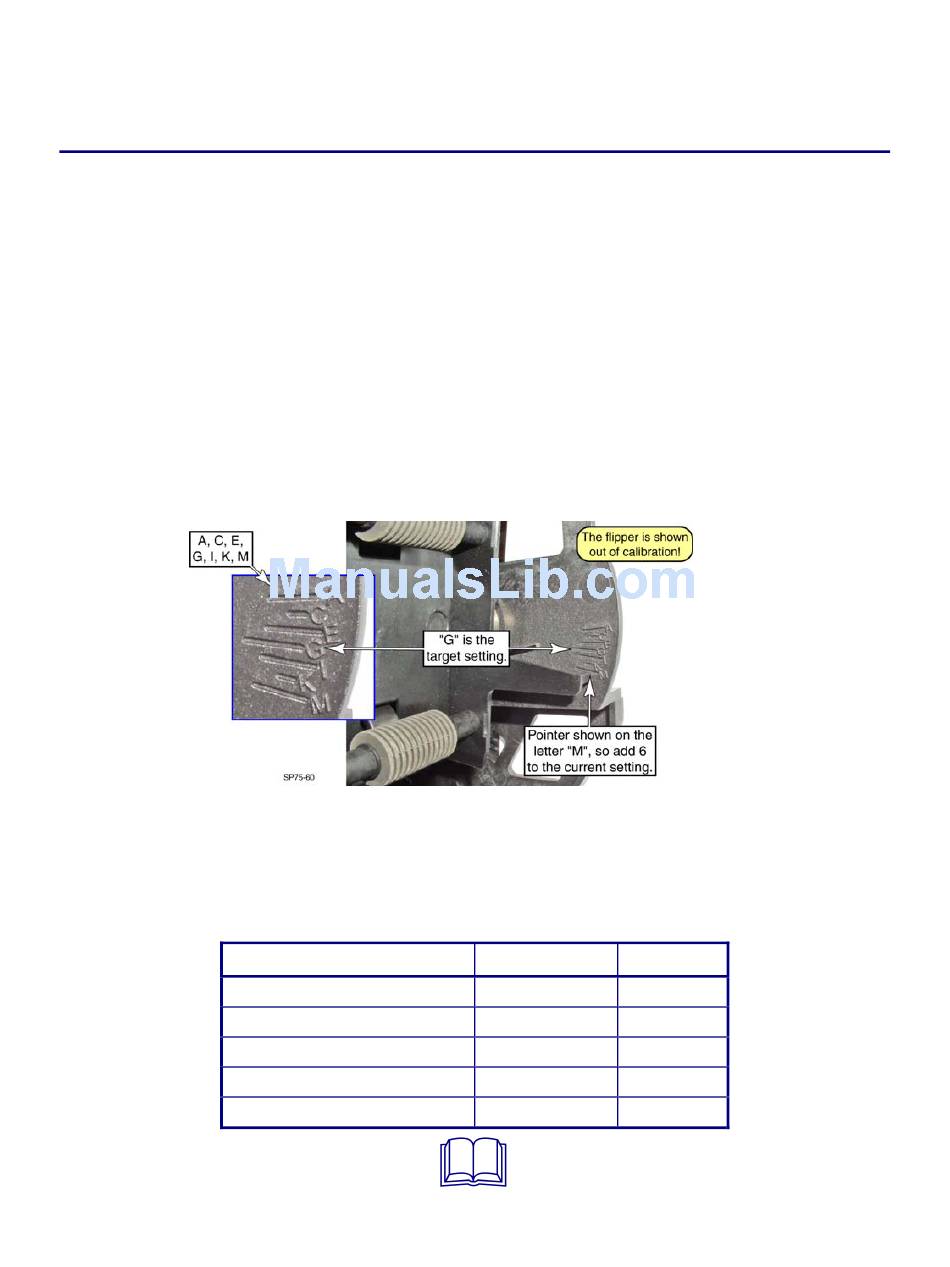

Examine the physical position of the duplex calibration pointer. The proper
location of the pointer is at the letter "G" on the duplex chassis.
•
•
5.
Set all of the other parameters based on the handoff offset. The table below
shows what should be added or subtracted from the handoff's value. For
example, the Duplex Home Offset should be 68 units smaller than the Duplex
Handoff Offset.
6.
Save the values to Power-on defaults.
Duplex Handoff Offset
Duplex Home Offset
Duplex Flipped Offset
Duplex Reject Offset
Duplex Debow Offset
5-54
If the pointer is below the "G", add the number of units to the current
setting (each letter represents 2 units because every other letter is shown).
If the pointer is above the "G", subtract the number of units from the
current setting.
Parameter Change Sample
Baseline
Subtract 68
Subtract 60
Add 26
Subtract 42
82
14
22
108
40
