Manual And One-Touch Headset Operation - AT&T MERLIN LEGEND Release 3.1 Installation Manual

Installing Adjuncts
Headpiece
Modular
Base
Unit
Handset Jack
Manual Operation
(Analog Multiline
Telephones only)

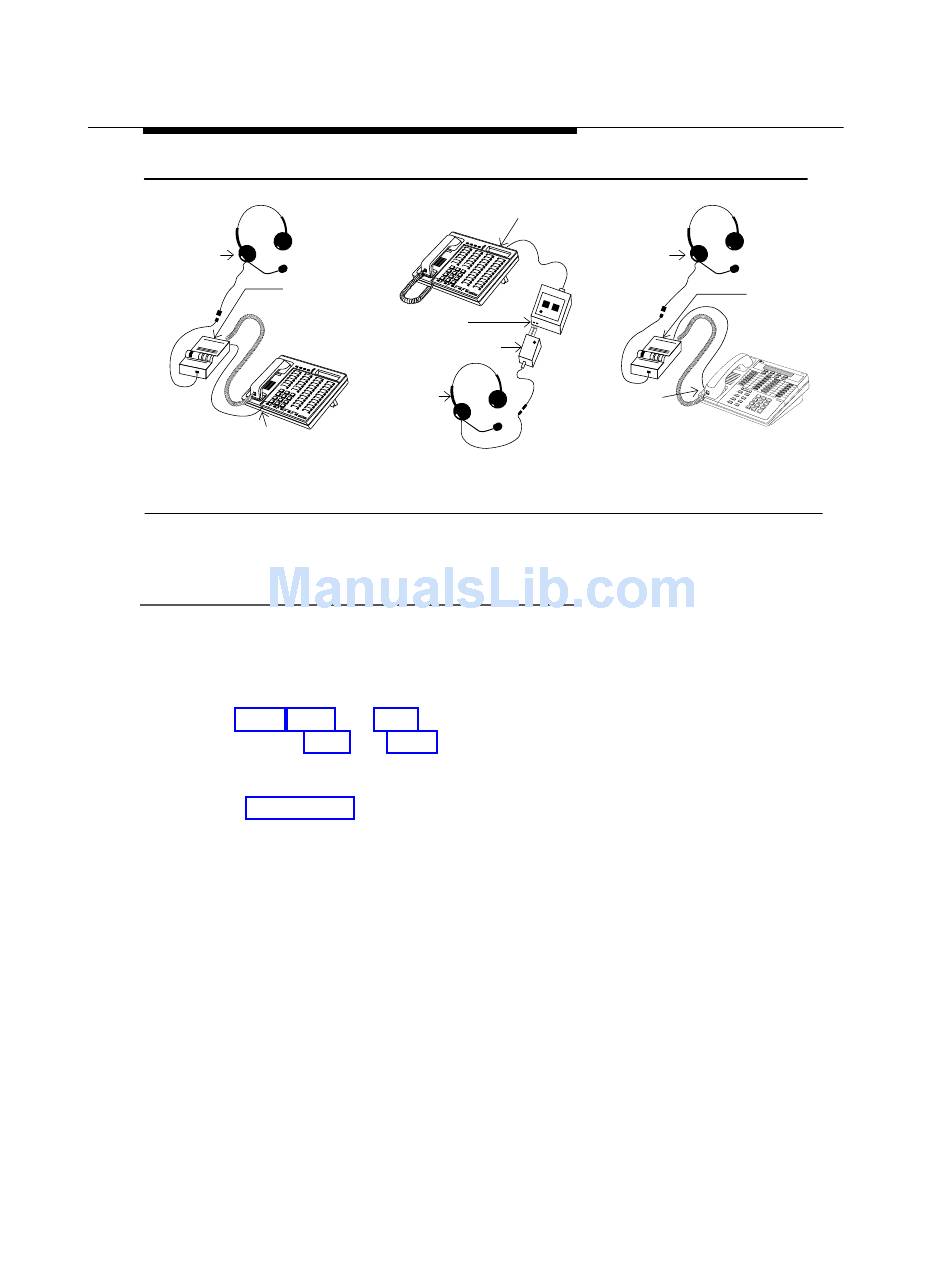

Figure 3–21. Manual and One-Touch Headset Operation
Loudspeaker Paging Systems
Use a loudspeaker paging system to page co-workers and make
announcements. You connect the paging system to the jack of an LS or GS
line/trunk that is programmed for paging.
Figures 3–22, 3–23, and 3–24 show various configurations for single-zone
paging. Figures 3–25 and 3–26, later in this chapter, show single-zone and
multizone paging configurations that include background music through a
Magic on Hold audio source. Bidirectional paging, also called talk-back , is
shown in Figure 3–26.
OTHER Jack
(underside)
502C Adapter
Plug Prong Base Unit
Headpiece
One-Touch Operation
(Analog Multiline Telephones)
Installing Telephones and Adjuncts
Headpiece
Modular
Base
Unit
Handset
Jack
One-Touch Operation
(MLX Multiline
Telephones only)
3–29
