Connecting One Or More Dsss - AT&T MERLIN LEGEND Release 3.1 Installation Manual

Installing Direct Station Selectors
D8W
LINE
DSS
MLX Telephone

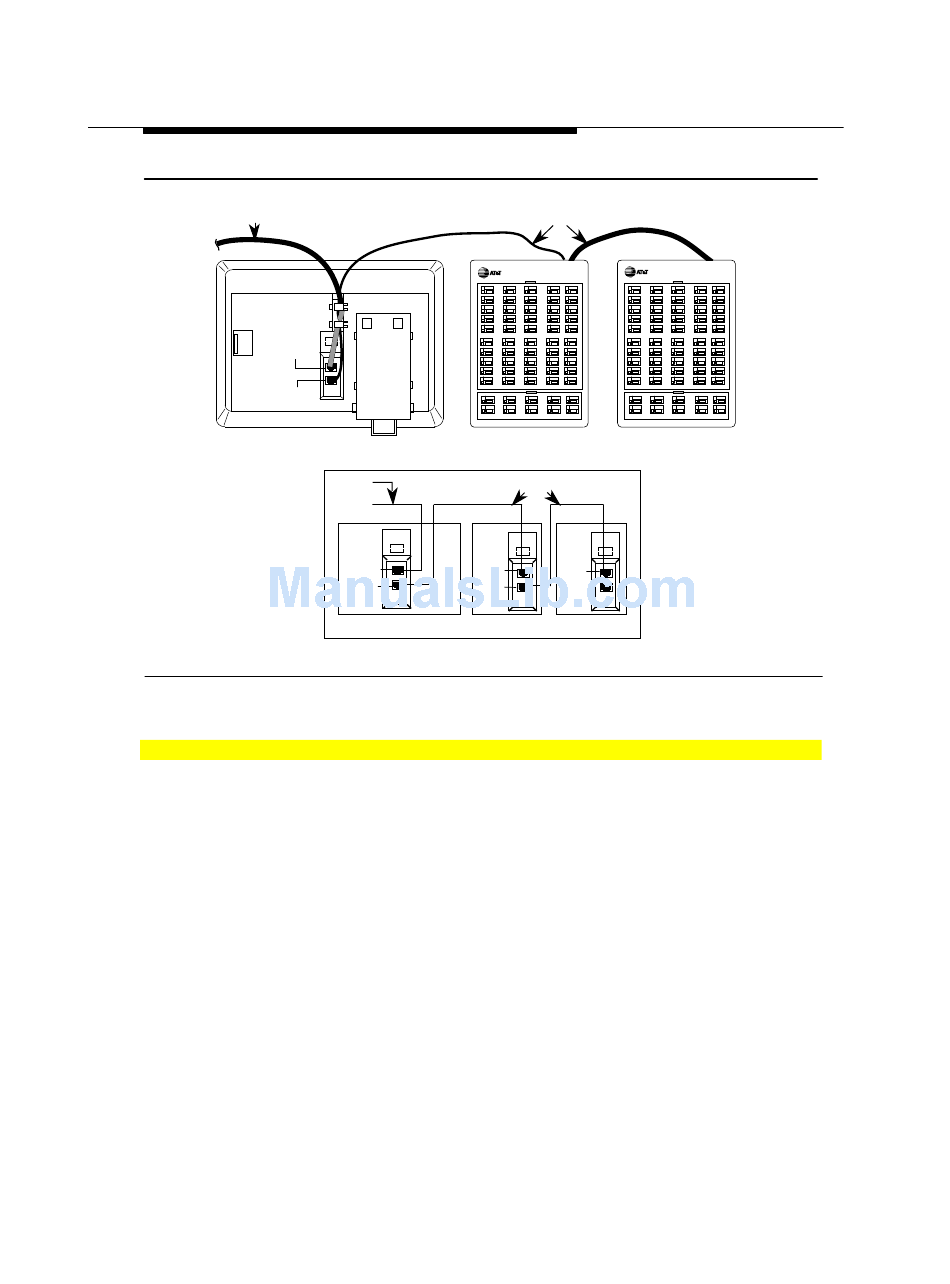

Figure 3–28. Connecting One or More DSSs
4 Wire the telephone to the DSS unit(s). See Figure 3–28.
a Remove the handset from the telephone, then place the telephone face
down on a flat surface to the right of the upside-down DSS unit(s).
b Plug the D8AC cord from the IN jack on the DSS1 into the DSS jack on the
telephone; then route the cord through the cord channel.
c Plug the D8W line cord into the LINE jack on the MLX telephone. The D8AC
and D8W cords share the cord channel on the telephone.
DSS 1
D8W D8AC
LINE
IN
DSS
OUT
MLX Telephone
DSS 1
Installing Telephones and Adjuncts
D8AC
DSS DSS
DSS 2
IN
DSS 2
3–45
