Installing Multi-Function Modules
Wall Jack
400B2 Adapter

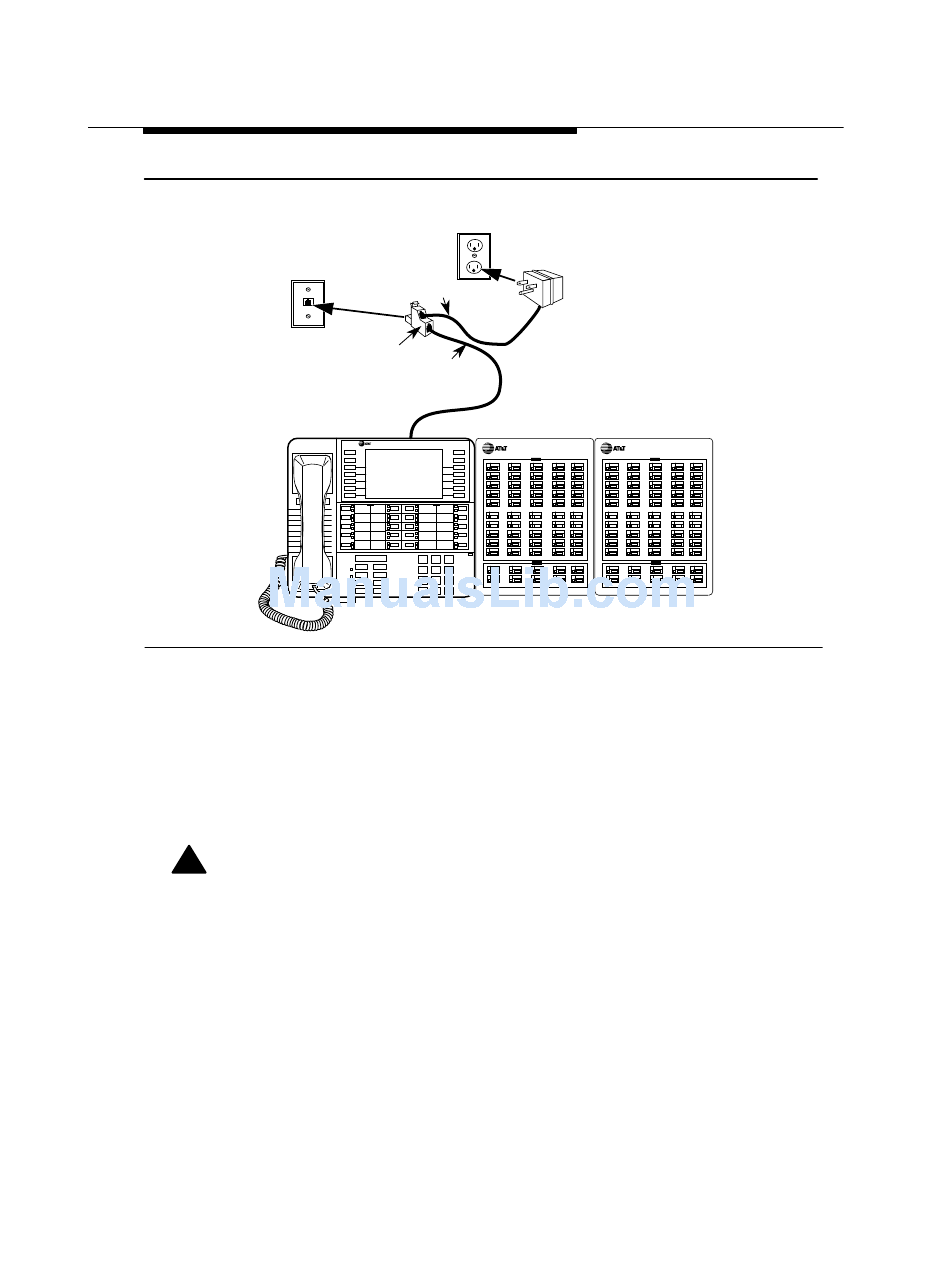

Figure 3–19. Powering Up the Telephone after Installing the MFM
b Connect one end of the D6AP cord to the 2-conductor (small) modular jack
on the 400B or 400B2 adapter, and plug the other end into the modular
jack of the 406943837 power supply. The total length of the cords
connecting the power supply to the MLX telephone must be less than or
equal to 50 ft. (15 m).
!
CAUTION:
Do not plug the D6AP cord into the 8-conductor (large) modular jack on
the 400B or 400B2 adapter; doing so can cause electrical damage to
the control unit and to the telephone.
AC Power
Outlet
D6AP
D8W
MLX-20L
Home More
Menu Inspct
Message
v
Volume ABC DEF
1 2 3
Feature Transfer GHI JKL MNO
4 5 6
HFAI
Conf
PQRS TUV WXYZ
7 8 9
Mute Drop
OPER
#
Speaker Hold *
0
Installing Telephones and Adjuncts
Power
Supply
DSS DSS
3–21
