Assembling MLX Telephones

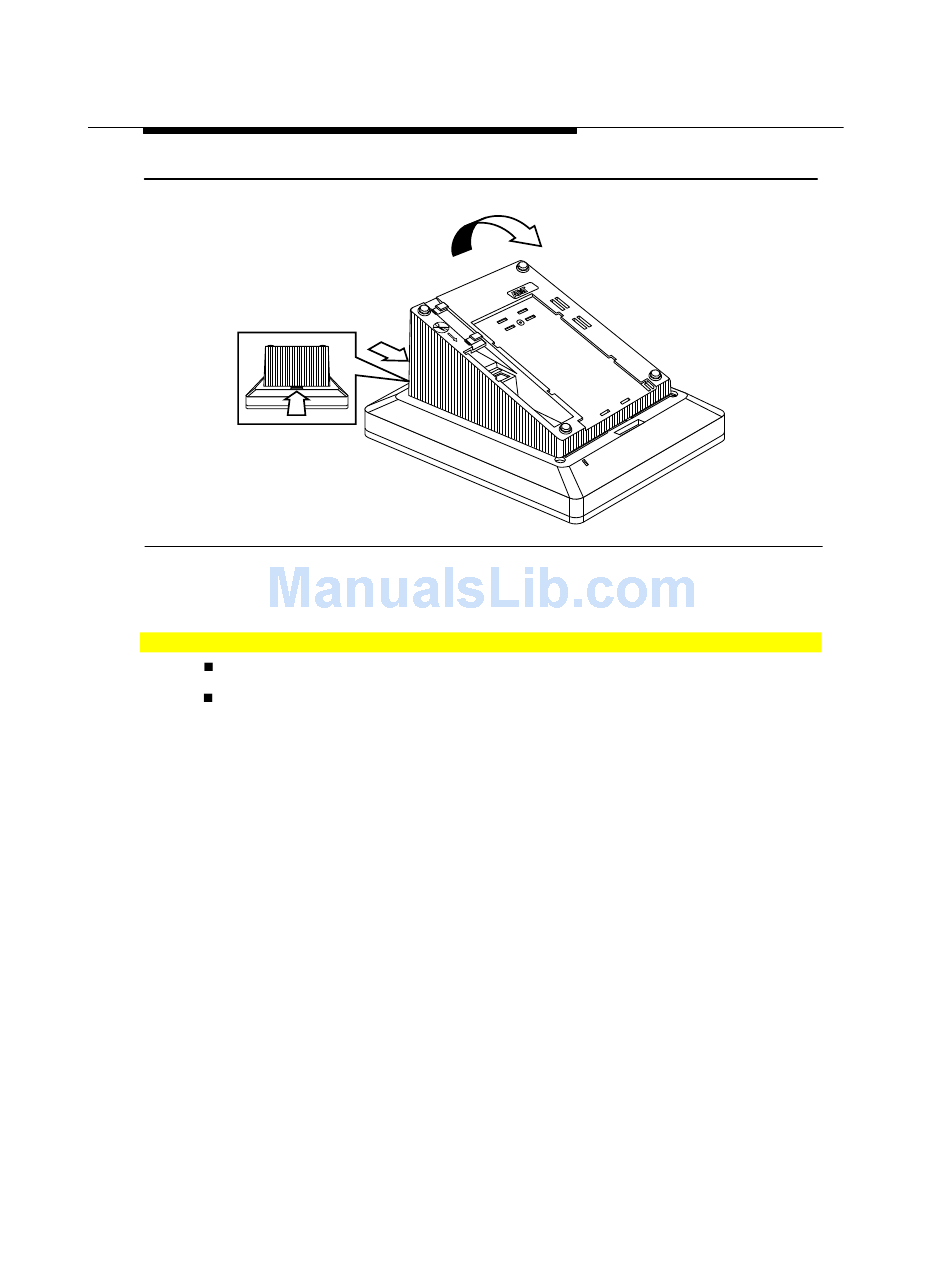

Figure 3–30. Adjusting or Removing the Deskstand
To assemble an MLX telephone, follow the steps below.
1 Remove or adjust the deskstand. See Figure 3–30.
If you want to leave the deskstand in the low position, go to Step 2.
If you want to adjust the angle of the deskstand, or remove it in order
to wall-mount the telephone:
a Place the telephone face down on a flat surface.
b Press on the top rear center of the deskstand to release the tab,
then pull it up towards you.
c Insert the tab into the slot in the module cover to adjust the height.
d To remove the deskstand, continue to pull it up and away from the
telephone.
e Release the deskstand from the front slot.
Pull Up
and
Away
Press
Center Tab
