Using the CX-Process Monitor

3-2-2 Validate the Monitor Tag List

136

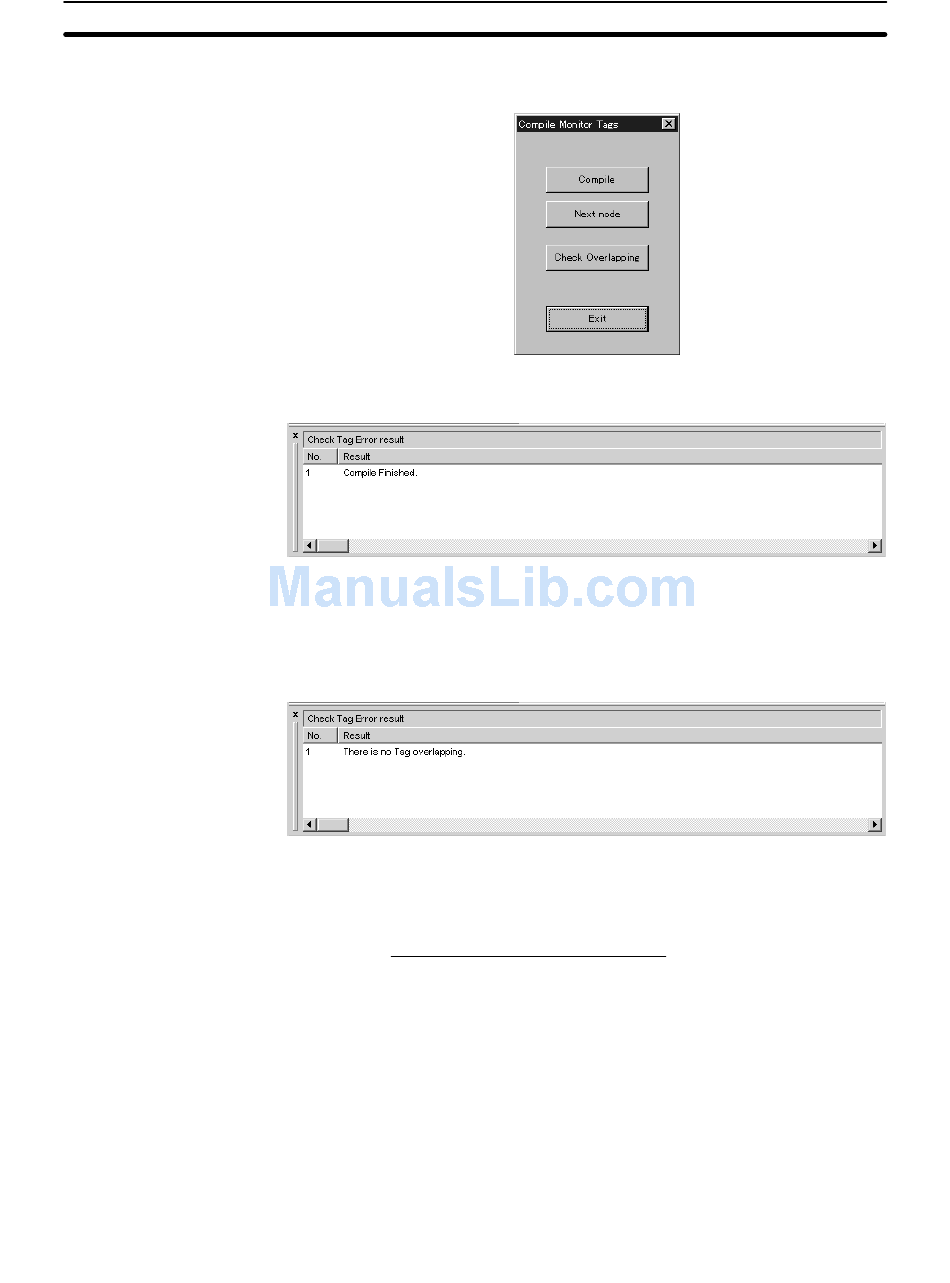

2. Click the OK Button. The following Compile Monitor Tags Dialog Box will ap-
pear.
3. Click the Compile Button. The result will be displayed in the Output Window
as shown below.
4. If the multi-node function block file is being compiled, click Next Node in the
Compile Monitor Tags Dialog Box, and then repeat step 2, above.
5. After the compilation, click Exit in the Compile Monitor Tags Dialog Box.
Note To check monitor tag duplication, click the Check Overlapping Button in the
Compile Monitor Tags Dialog Box. The following Result Screen will appear.
Note 1. It is necessary to install the CX-Process Monitor on the same personal com-
puter before creating monitor tag files.
2. On completion of the above compilation, a monitor tag file with a fixed file
name (for monitor tag data for the CPU Unit) will be created in the following
folder: omron\CX-Process\Process Monitor\db (The underlined part is the
folder of CX-Process Monitor.)
File names: mtagmst and mtagsubmst
3. Compile the monitor tag file again in any of the following cases.
• The function blocks for data exchange with the CX-Process Monitor are
changed (i.e., the source of the Block Send Terminal to Computer is
changed).
• The monitor tags are changed.
• The network address, node address, or unit address is changed.
You can display lists of the monitor tags for the LCU/LCB elements, function
block files, or Project Workspace.
Section 3-2
