Using the CX-Process Monitor
Setting Monitor Tags
Set a monitor tag for the function blocks to exchange data with the CX-Process
Monitor.
1-Block Send Terminal to Computer or 4-Block Send Terminal to Computer
(Block Models 403/404)
Select the 1-Block Send Terminal to Computer or 4-Block Send Terminal to
Computer, and then select Tag Setting/Monitor Tag from the Settings Menu.

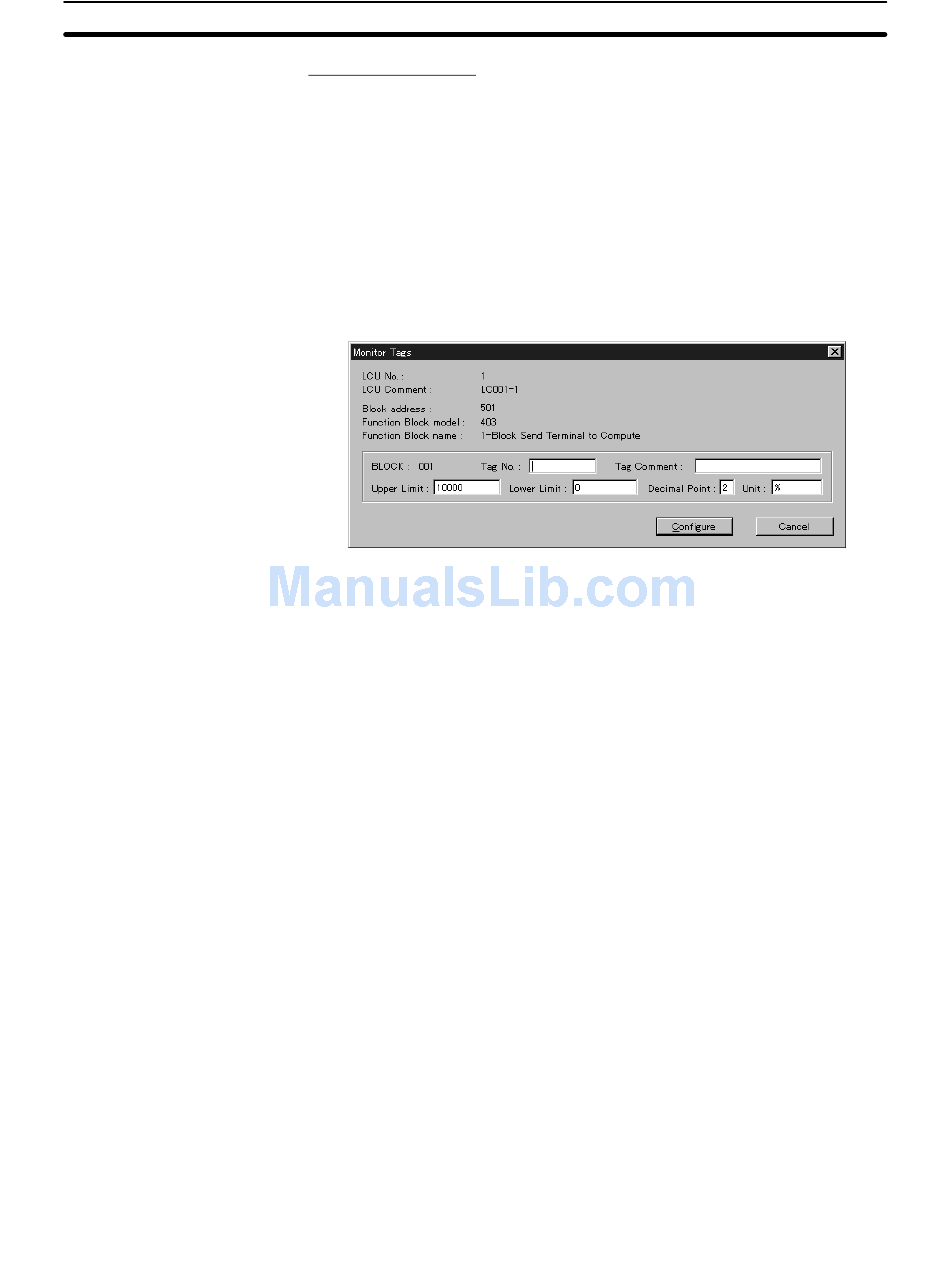

The following Monitor Tags Dialog Box will appear. Input the tag name, tag com-
ment, scale (range high limit and range low limit), decimal position, and unit data
items, and then click the OK Button.
Note The scale (range high limit and range low limit), decimal position, and unit data
items are common SP and PV settings for the function block.
Note 1. For a 4-Block Send Terminal to Computer, four function blocks are selected
for areas 1 through 4.
2. The AO or DO to Computer or AO or DO Terminal to All Nodes Function
Blocks cannot be registered in the CX-Process Monitor on a Tuning Screen.
AO or DO to Computer or AO or DO Terminal to All Nodes (Block Models
401/402 or 407/408)
Select the AO or DO to Computer or AO or DO Terminal to All Nodes, and then
select Tag Setting/Monitor Tag from the Settings Menu. The following Monitor
Tags dialog box will appear. Set the tag name and tag comment for the analog
input ITEM or contact input ITEM. Input the scale (range high limit and range low
limit), decimal position, and unit data items, and then click the OK Button.
Note The following symbols are used in the fields.
RH: Range high limit
RL: Range low limit
DP: Decimal position
UNIT: Unit
Section 3-2
133
