Operation Check
Stop Block Operation
Command for each
Function Block
1, 2, 3...
274
2. Input Value

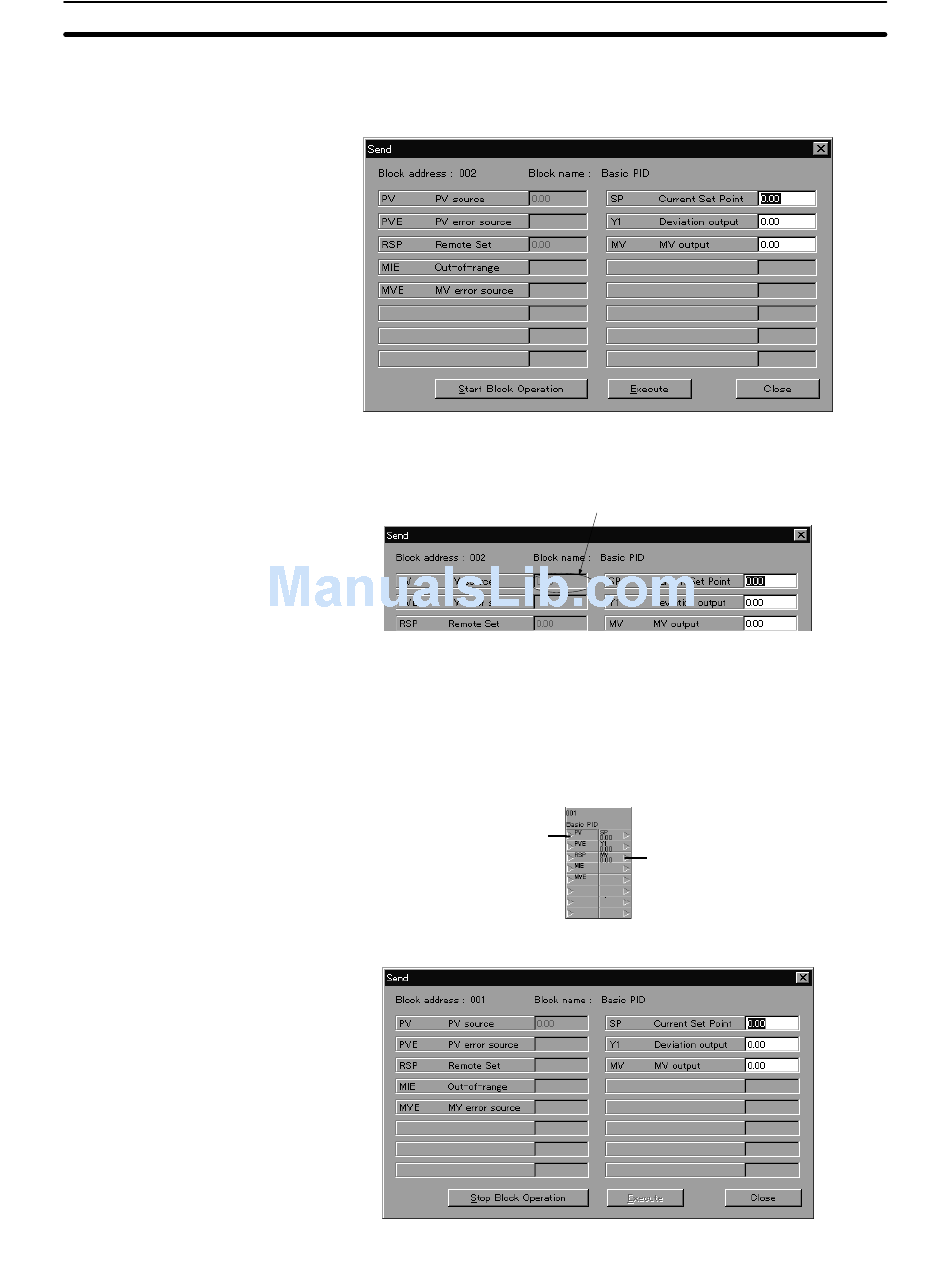

Double-click the destination function block. The following Send Dialog Box
will appear.
3. Check the input value in the dialog box.
In the above example, the grayed-out value on the right of the PV source
designation reads 0.00.
If the above item 1 matches item 2 in value, the connections are correct.
From the above Validate Action Screen, the stop block operation command can
be sent to each function block.
Take the following steps to execute the stop block operation command.
1. Double-click the function block.
Example
The following Send Dialog Box will appear.
Section
2 Input value
4-6
