Omron CX-PROCESS TOOL V5.2 - REV 10-2010 Operation Manual page 208

Creating Step Ladder Program Instructions

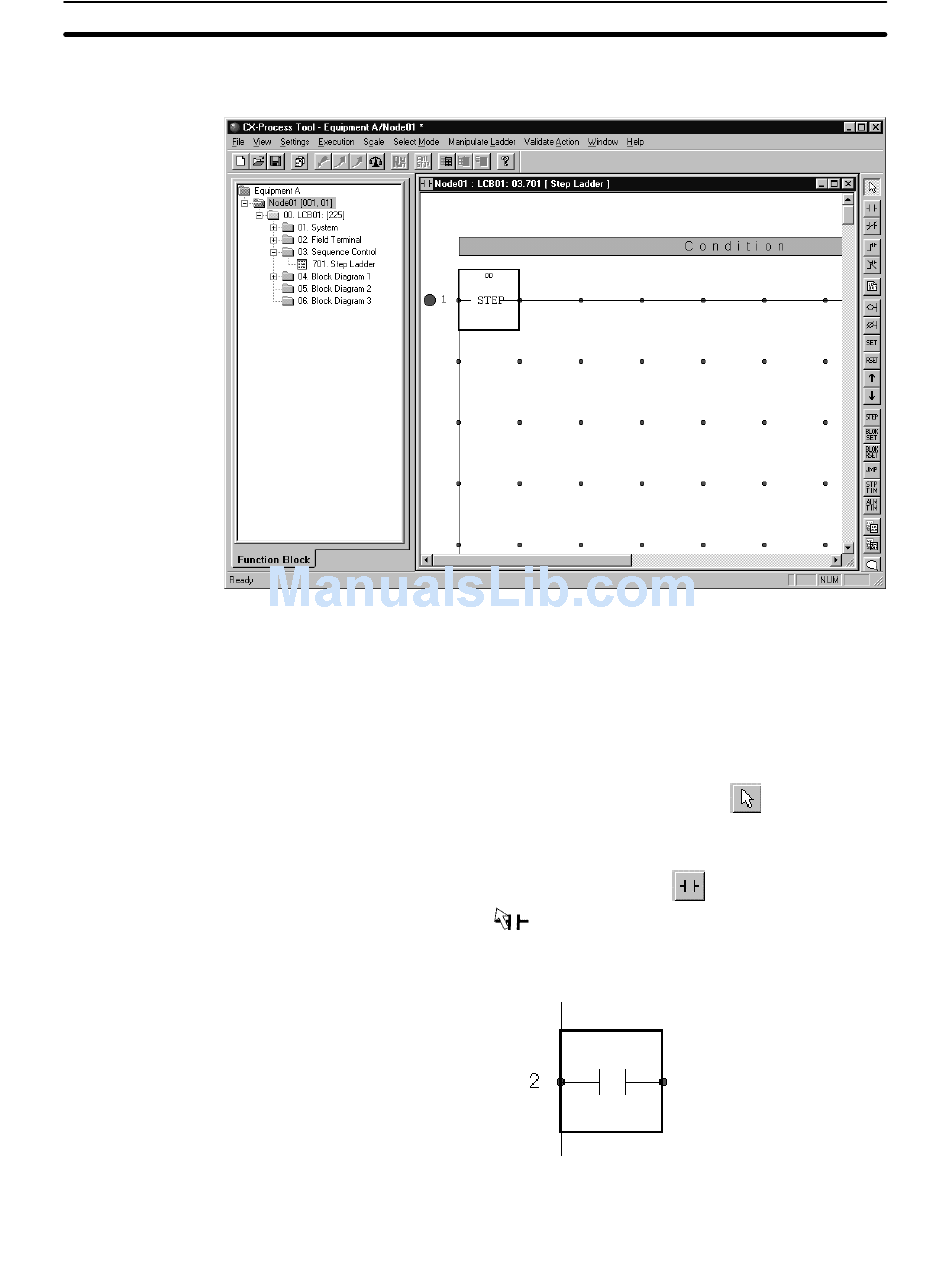

3. The following screen will appear.
4. Click an icon on the right toolbar. The ladder diagram of the instruction will
appear under the cursor. Move the cursor to the desired position on the lad-
der diagram and click the position.
To input an input instruction, such as LOAD, for example, click an instruction
position other than one on the right edge (i.e., a condition position).
To cancel the symbol allocated to the cursor, click the
cursor to the position to be overwritten and select the instruction from the
Select Mode Menu.
Example: For the LOAD instruction, click the
cursor will change to
and click the position. The LOAD instruction (with a NO contact) will appear.
Press the Delete Key to delete the instruction.
. Move the cursor to the position to be overwritten
Section 3-7
icon or move the
icon, and the icon of the
181
