Communication Tab Page; Csv Tag Setting Tab Page - Omron CX-PROCESS TOOL V5.2 - REV 10-2010 Operation Manual

Setting Options

3-12-3 Communication Tab Page

3-12-4 CSV Tag Setting Tab Page

228
Enable OPC Server Direct Access Tag
When this option is selected, ITEMs other than for HMI data will be added to the
tag file as OPC server direct access tags when outputting the tag file. This ap-
plies to Ramp Program (Block Model 155), Segment Program (Block Model
156), and Segment Program 2 (Block Model 157) only. This option is selected
when the HMI area is not used and all of the ITEMs for these blocks are to be
monitored and set directly from the SYSMAC OPC Server.
Function Blocks That Can Be Directly Accessed from the OPC Server
• Ramp Program (Block Model 155)
• Segment Program (Block Model 156)
• Segment Program 2 (Block Model 157)

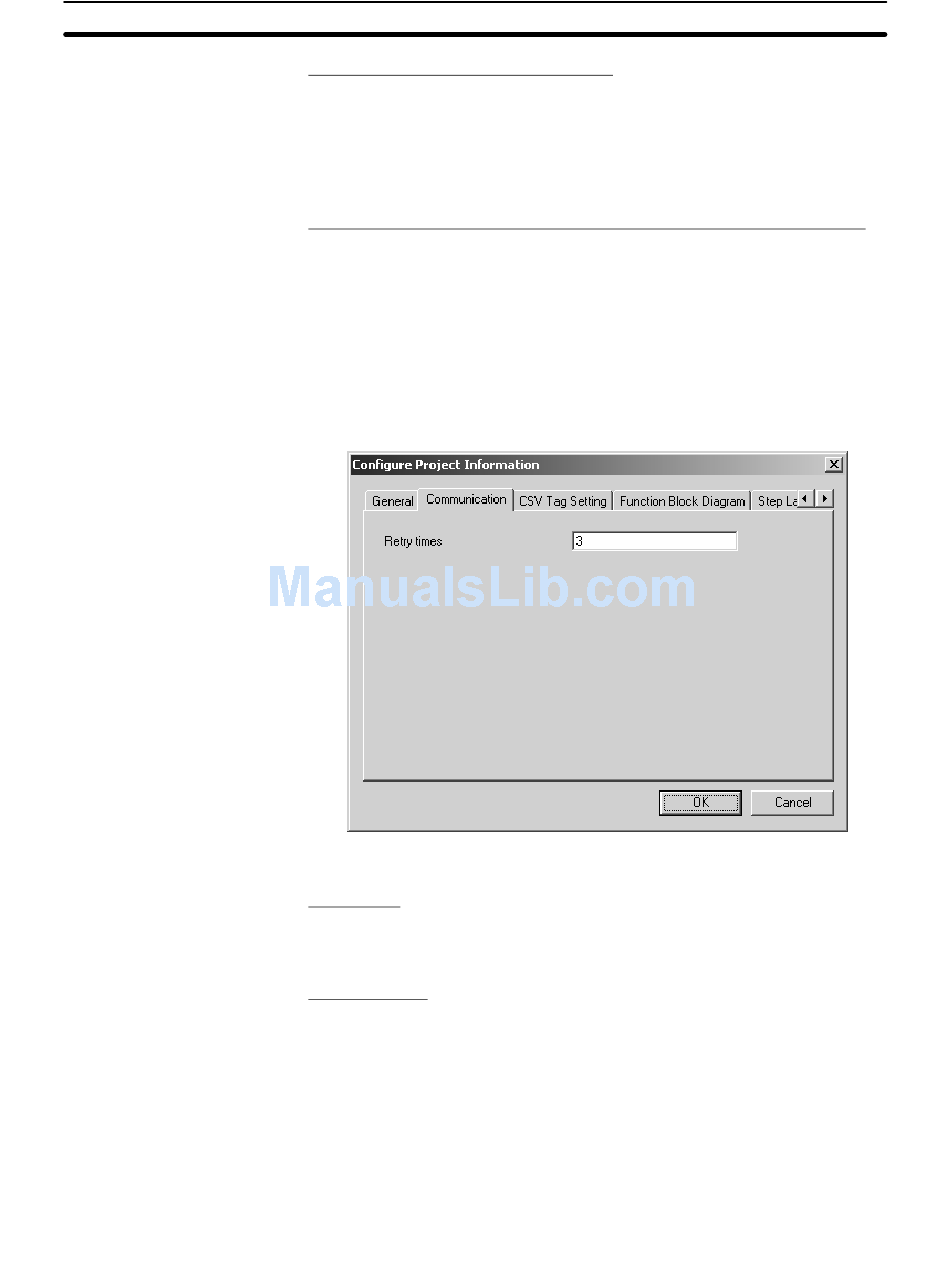

Retry times
This option sets the number of retries for communications with the Loop Control-
ler. The default is 3 retries. Increase this number if there are communications
timeouts.
Time-out value
This option sets the timeout time for communications with the Loop Controller.
The default is 5,000 ms. If a heavy communications load causes timeouts, in-
crease this time. The maximum time is 60,000 ms.
Use this tab page to make the settings for exporting expanded scaling data for
SYSMAC OPC Server version 2.6. Using expanded scaling data enables scal-
ing in engineering units using a OPC Server. When this is done, scaling settings
in the SCADA software are not required. For details, refer to Expanded Scaling
Section 3-12
