Creating Sequence Tables
Element type Set value
Timer 0 to 32767
Counter 0 to 32767

3-8-8 Expanding the Sequence Table

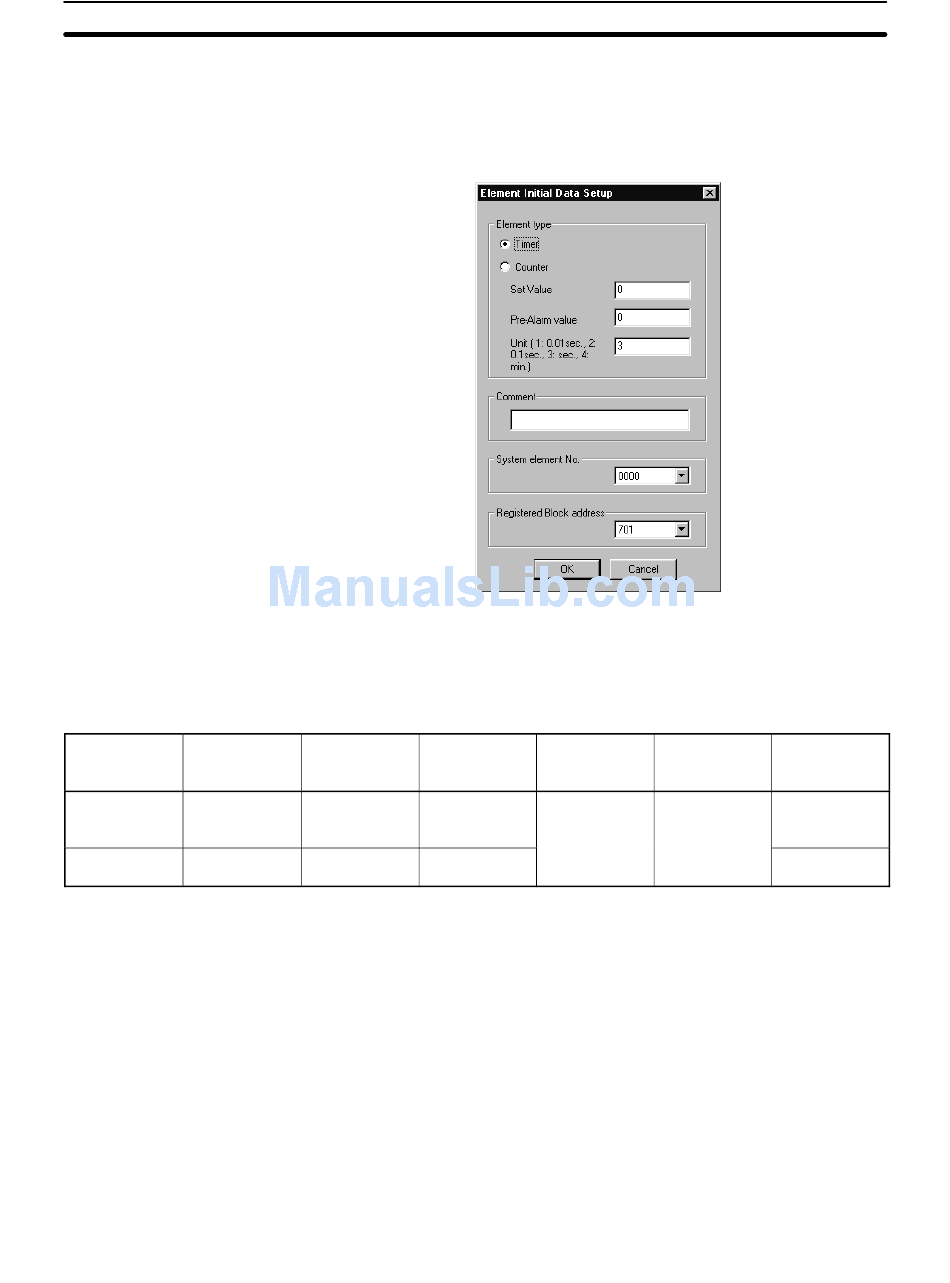

2. Select a row and select Data Edit/Element from the menus. The Initial Data
Configuration Dialog Box will be displayed.
3. Values are set for the timers and counters. The settings are shown in the
following table.
Pre-alarm
value
0 to 32767 1: 0.01 s, 2:
0.1 s, 2: s, 4:
min
0 to 32767 ---
Right-click and select Expand/Vertical or Expand/Horizontal from the pop-up
menu. When a sequence table is expanded, the sequence table will be automat-
ically expanded by the specified amount in descending order starting from block
address 900.
Note 1. The expanded portion of the sequence table cannot be edited directly.
When editing a sequence table edit the portion from the original table that
existed before expansion.
2. When sequence table expansion is cleared, the expanded portion of the
table is deleted automatically.
Unit System
element
number
Automatically
set
Section
Registered Example
block address
Sequence TIM 000 100 s
table address
CNT 001 200
counts
3-8
203
