Creating Function Block
1, 2, 3...
grams with annotations can also be printed out to create complete schematics
showing the system configuration. (The annotation data cannot be downloaded
to a Loop Controller. For details on downloading annotation data, refer to 4-9
Transferring Tag and Comment Data on page 309.)
Use the following procedure to insert annotations.

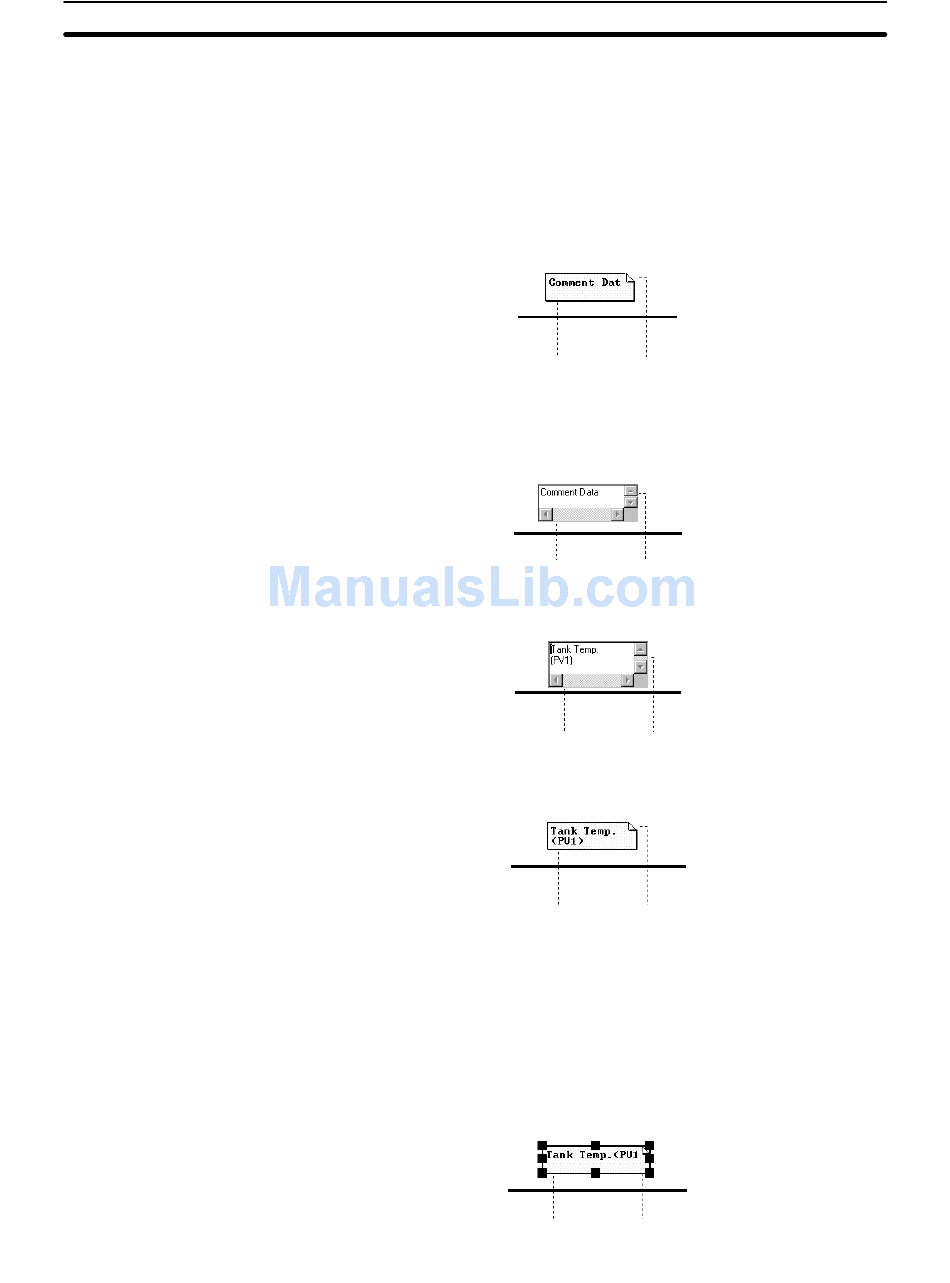

1. Click the right mouse button to display the pop-up menu and select Annota-
tions/Insert. The new annotation will contain the default text "Comment
Data" as shown in the following diagram.
2. To edit the text in the annotation, double-click the annotation or select the
annotation, right click the mouse button to display the pop-up menu and se-
lect Annotations/Selected Annotation/Edit. The following diagram
shows the appearance of the annotation when it can be edited.
3. Input the text. In this example, "Tank Temp. (PV1)" has been input. (Press
the Enter Key to create a new line.)
4. To stop editing the annotation, click on something other than the annotation.
The annotation will contain the new text.
Note a) To change the size of the font in the annotation, select the annota-
tion, click the right mouse button to display the pop-up menu and
select Annotations/Selected Annotation/Font Size. (The de-
fault font size is 12 points.)
b) The annotation can be enlarged if necessary. (The default size is
the minimum size, so the annotation cannot be made smaller than
the default.) Select the annotation, select the J symbol on the
right side of the annotation (arrows will be displayed on both sides
of the symbol), and enlarge the annotation.
