User Link Tables
3. The EM bank can be set independent of the type of CPU Unit. A Loop Con-
troller execution error will occur, however, if an EM bank that is not present in
the CPU Unit is specified in the user link tables. Refer to 4-5 Monitor Run

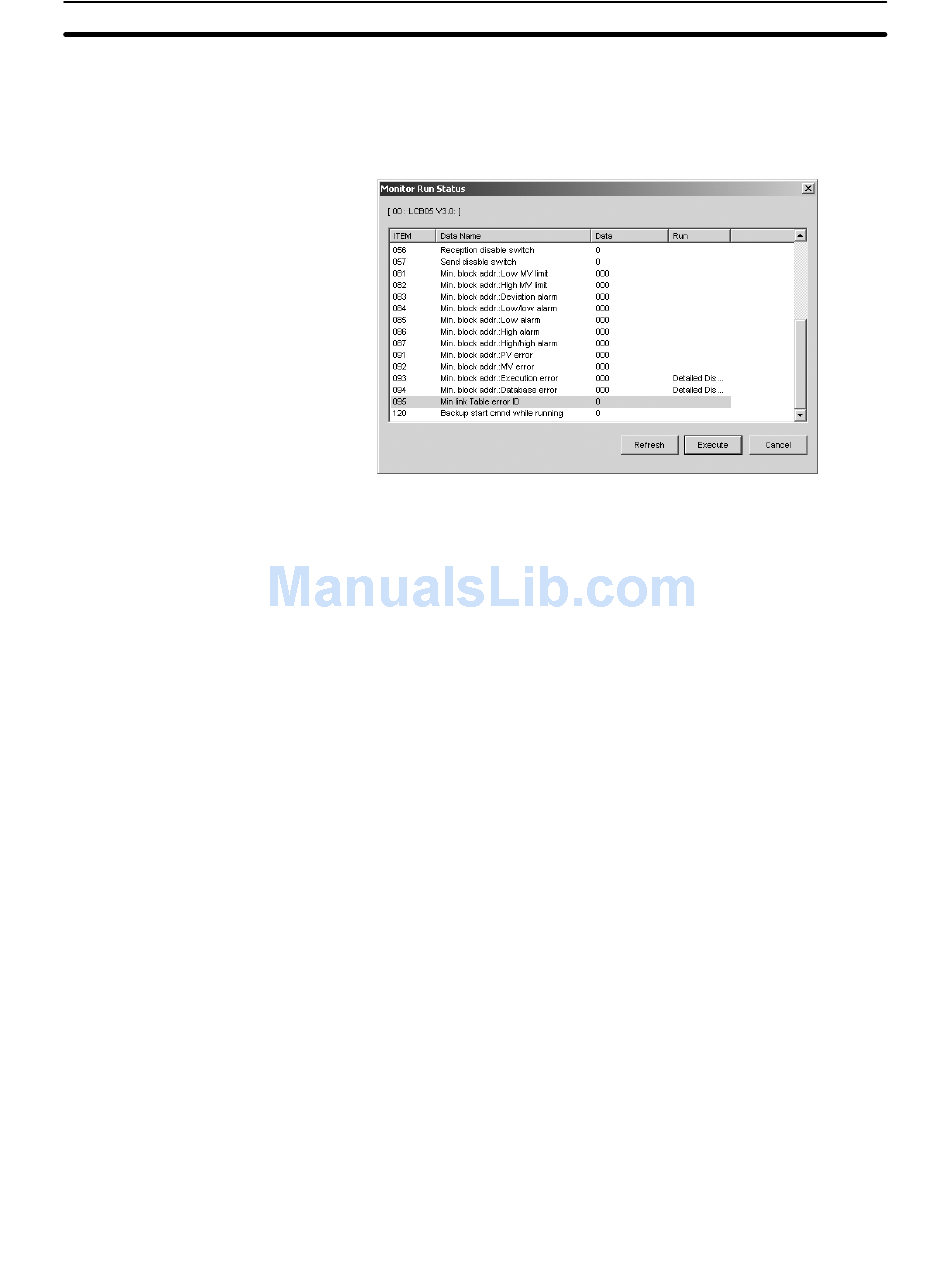

Status for the procedure for confirming execution errors. The following Mon-
itor Run Status Window shows an error status in ITEM 095.
3. Method 3: Batch Registration on the User Link Table Edit Screen
With CX-Process Tool version 3.2 or higher, multiple tags with the same at-
tributes can be registered at the same time with the tag name to which serial
numbers are attached. Consecutive I/O memory addresses in the CPU Unit
will be automatically allocated to the tags. Up to 2,400 tags can be regis-
tered as a batch. The default is for 16 tags. The numbers added to the tag
name will begin at 0001 for the number of tags required.
The following example shows registering 16 tags as a batch with the tag
name "temperature setting" starting from DM 00100.
1) Select Setting – Edit – User Link Table.
2) Right-click on the User Link Table Edit Screen and select Block Set from
the pop-up menu.
3) The following User Link Table Batch Registration Dialog Box will be dis-
played. Set the number of tags to register to 16, the tag name to "temper-
ature setting," the memory type to "DM," and the memory address to 100.
