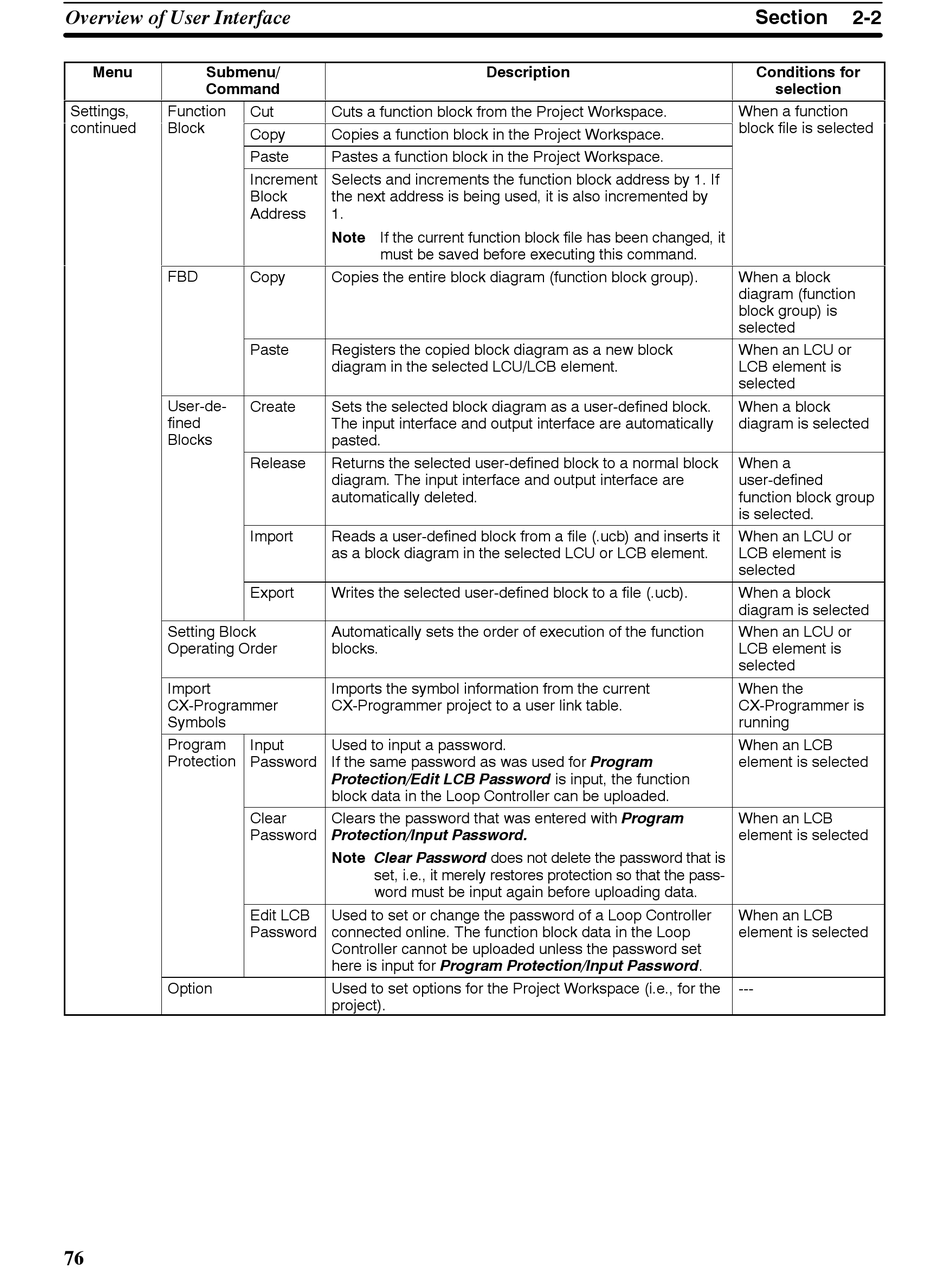

Overview of User Interface
Menu Submenu/
Command
Settings, g , Function
continued i d Block Bl k
FBD
User-de-
fined
Blocks
Setting Block
Operating Order
Import
CX-Programmer
Symbols
Program
Protection
Option
76
Cut Cuts a function block from the Project Workspace.
Copy Copies a function block in the Project Workspace.
Paste Pastes a function block in the Project Workspace.
Increment Selects and increments the function block address by 1. If
Block the next address is being used, it is also incremented by
Address 1.
Note If the current function block file has been changed, it
must be saved before executing this command.
Copy Copies the entire block diagram (function block group).
Paste Registers the copied block diagram as a new block
diagram in the selected LCU/LCB element.
Create Sets the selected block diagram as a user-defined block.
The input interface and output interface are automatically
pasted.
Release Returns the selected user-defined block to a normal block
diagram. The input interface and output interface are
automatically deleted.
Import Reads a user-defined block from a file (.ucb) and inserts it
as a block diagram in the selected LCU or LCB element.
Export Writes the selected user-defined block to a file (.ucb).
Automatically sets the order of execution of the function
blocks.
Imports the symbol information from the current
CX-Programmer project to a user link table.
Input Used to input a password.
Password If the same password as was used for Program
Protection/Edit LCB Password is input, the function
block data in the Loop Controller can be uploaded.
Clear Clears the password that was entered with Program
Password Protection/Input Password.
Note Clear Password does not delete the password that is
set, i.e., it merely restores protection so that the pass-
word must be input again before uploading data.
Edit LCB Used to set or change the password of a Loop Controller
Password connected online. The function block data in the Loop
Controller cannot be uploaded unless the password set
here is input for Program Protection/Input Password.
Used to set options for the Project Workspace (i.e., for the
project).
Description
Section 2-2
Conditions for
selection
When a function
block file is selected bl k fil i l d
When a block
diagram (function
block group) is
selected
When an LCU or
LCB element is
selected
When a block
diagram is selected
When a
user-defined
function block group
is selected.
When an LCU or
LCB element is
selected
When a block
diagram is selected
When an LCU or
LCB element is
selected
When the
CX-Programmer is
running
When an LCB
element is selected
When an LCB
element is selected
When an LCB
element is selected
---
