Creating Function Block
Displaying Connection Maps
Fixed Location Mode
The order of priority is automatically set to 1, 2, 3, . . . 18 starting from the
upper left when the operation cycle batch setting is executed.
Note If the same function block is pasted to multiple connection dia-
grams, the operation sequence on the block diagram for the lower-
numbered function block will be enabled.

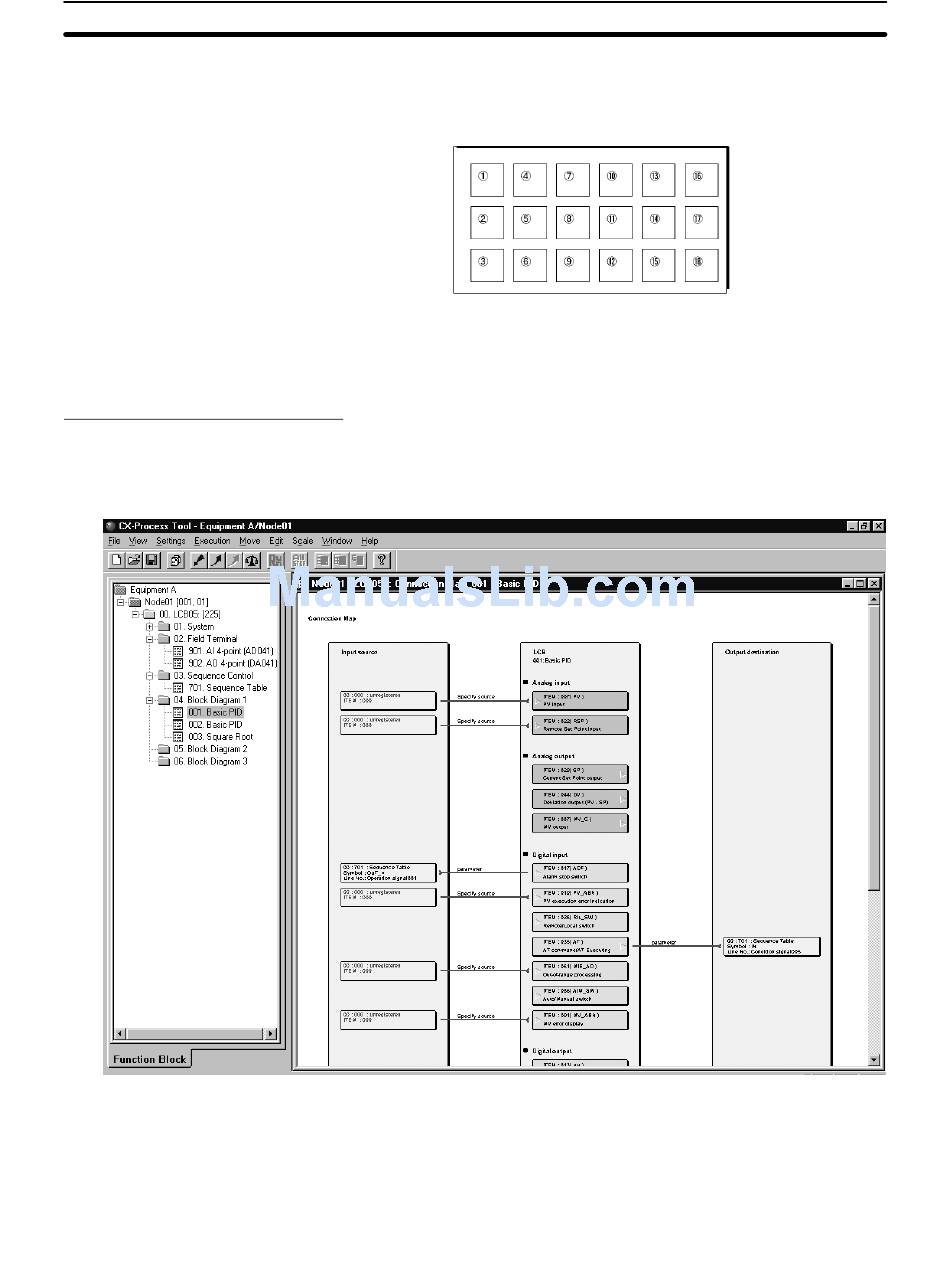

To check the I/O relationships for a function block, select the function block on
the Navigator and select Operation/Connection Map. As shown below, a con-
nection map showing the input source ITEMs and output destination ITEMs will
be displayed around the function block.
This connection map will allow checking the I/O relationship for individual
ITEMs. The connection map can also be printed by right-clicking on the map and
selecting Print.
Note Connection maps can also be displayed for function blocks using addresses
specified in the I/O memory of the CPU Unit. Right-click on the map and select
Jump/Memory Area/Optional and specify the I/O memory address. The speci-
