Initial System Administration

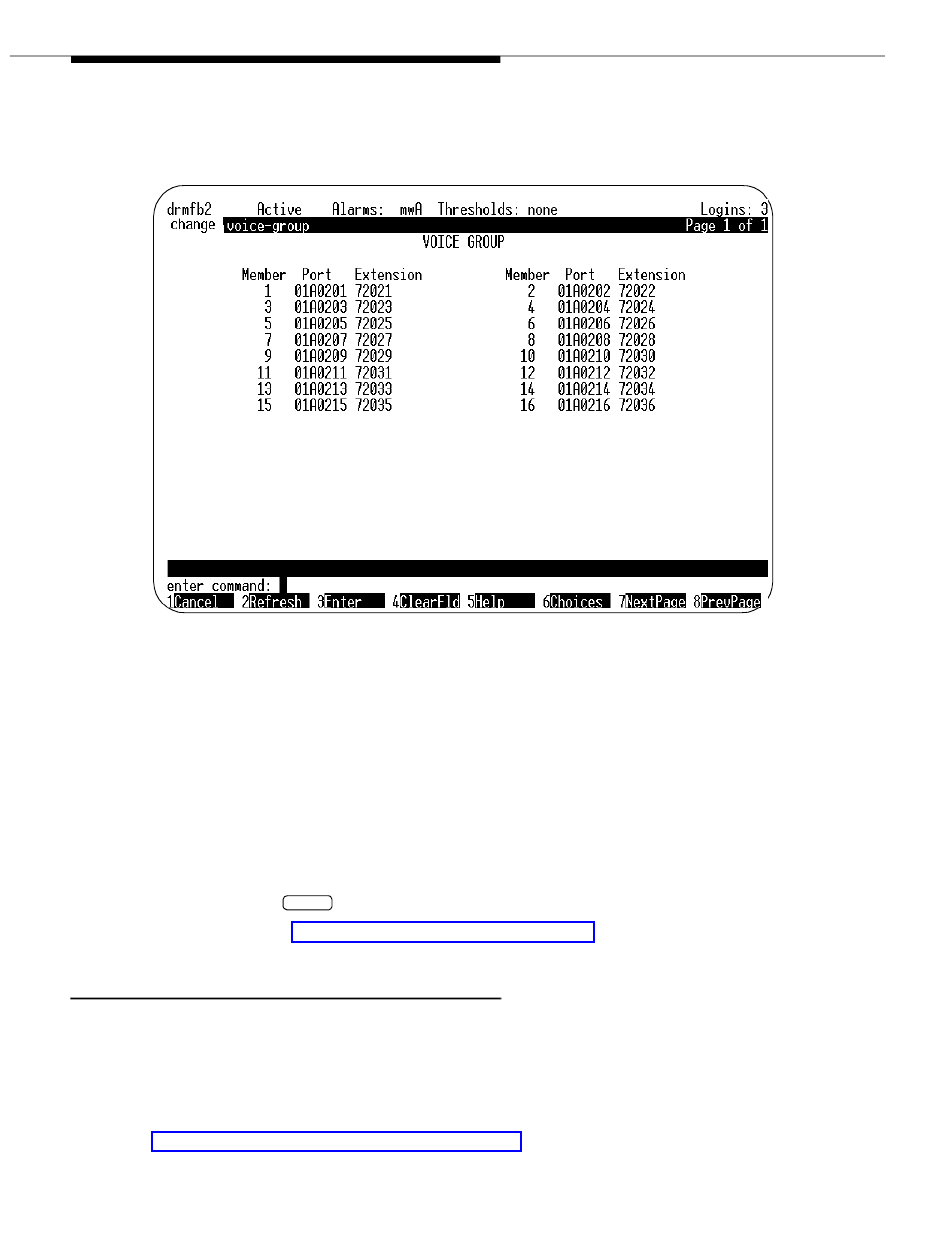

The system displays the Voice Group screen
2. With the cursor at the Port field, type the location identifier of the first port.
(A seven-character identifier is shown on the illustration.) For example, if
the DEFINITY AUDIX system multifunction board (MFB) is in module 1,
carrier A, slot 2, the first port location is 01A0201 (the last two digits in this
example are the port number).
3. Move the cursor to the Extension field and type the extension number of
the first port.
4. Repeat Steps 2 and 3 for as many ports as the customer has purchased.
Following the example in Step 2, the second port location is 01A0202, and
so forth.
5. Press the
6. Proceed to Task 14E: Set Switch-Link Parameters.

Task 14E: Set Switch-Link Parameters

Set Switch-Link Parameters for CL Integration

This part of the task is required only if the DEFINITY AUDIX system will be
running in CL integration mode. Check Worksheet C-1: Activate Customer
Options , to see if the switch integration type is to be control-link. If not, skip to
''Set Switch-Link Parameters for DS Integration'' on page 3-19.
3-16
Issue 2 December 1996
(F3) function key to save the changes.
ENTER
.
