Hardware Installation
Connect to the Packet G
Refer to Figure 2-14, Connecting the CL Cable to a Packet Gateway Board (G3r
Only), when performing this task.
SWITCH
DEFINITY AUDIX
ALARM
BOARD
DEFINITY AUDIX
MULTI-
FUNCTION
BOARD

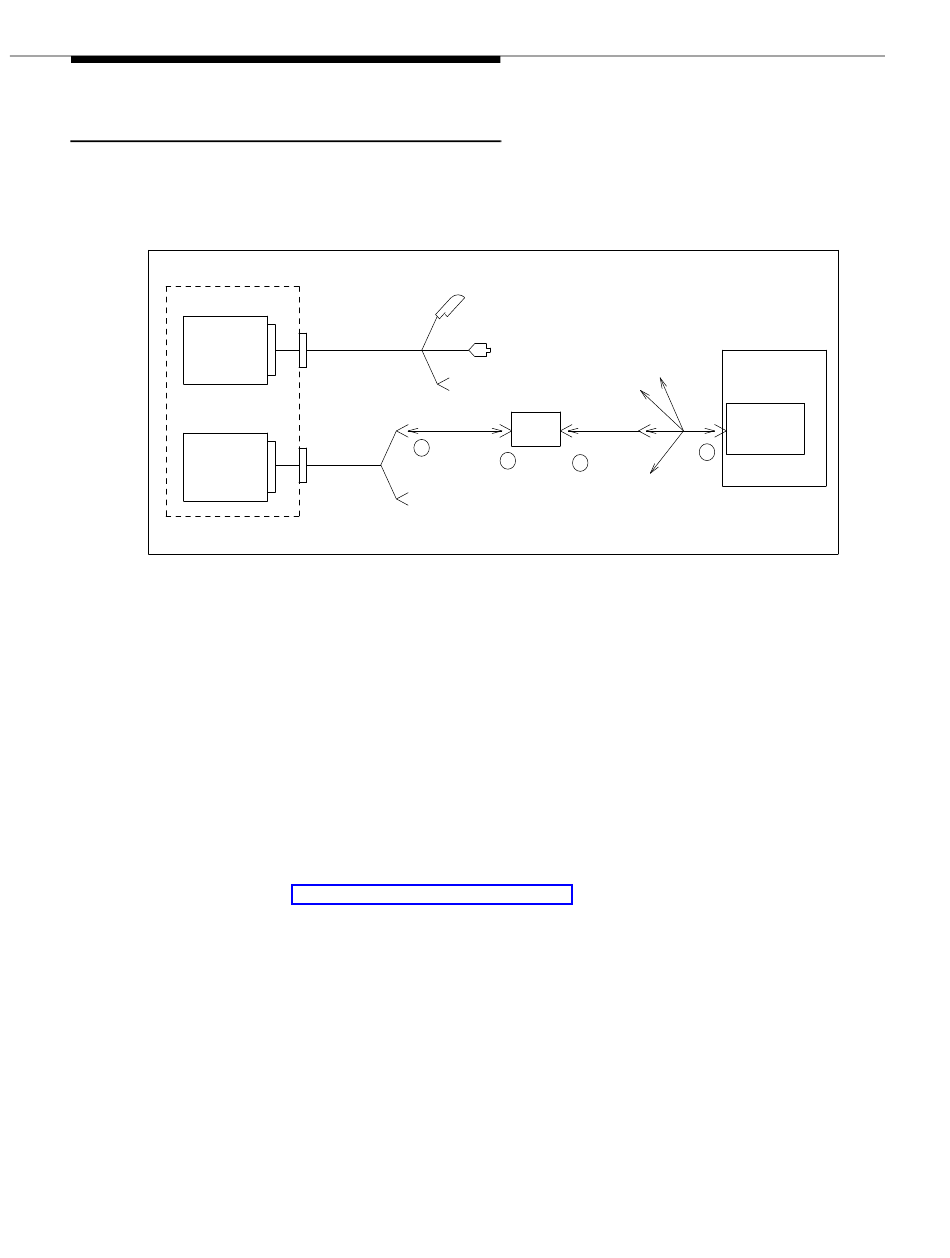

Figure 2-14. Connecting the CL Cable to a Packet Gateway Board (G3r Only)
1. Attach one end of the H600-405 cable to the RS-232C connector labeled
PORT B on the MFB Y-cable (labeled 1). (The MFB Y-cable is connected
to the fourth slot of the five DEFINITY AUDIX system slots.)
2. Attach the other end of the H600-405 cable to the out RS-449 connector of
the IDI (labeled 2).
3. Attach the one of the four RS-232 connectors on the H600-347 cable to
the in RS-449 connector of the IDI (labeled 3).
4. Attach the other end of the H600-347 cable to an RS-232C connector on
the Packet Gateway board (TN577) on the G3r switch (labeled 4).
5. Proceed to Task 9: Install the Printer (Optional).
2-28
Issue 2 December 1996
eway Board (G3r only)
at
ALB
CABLE
H600-353, Grp 2
PORT B
H600-405, Grp 1
MFB
Y
CABLE
1
H600-352,
Grp 1
PORT A
H600-347, Grp 1
H600-210,
Grp n
IDI
OUT IN
2
3
(USE ONE RS-232
CONNECTOR)
G3r ONLY
TN577
PACKET
GATEWAY
4
