8. Connect the other end of the M25A cable to one of the four RS-232
connectors on the H600-347 (labeled 7).
9. Attach the other end of the H600-347 cable to an RS-232C connector on
the Packet Gateway board (TN577) on the G3r switch (labeled 8).
10. Proceed to Task 9: Install the Printer (Optional).

Connect to the TN577 via MPDMs (G3r Only)

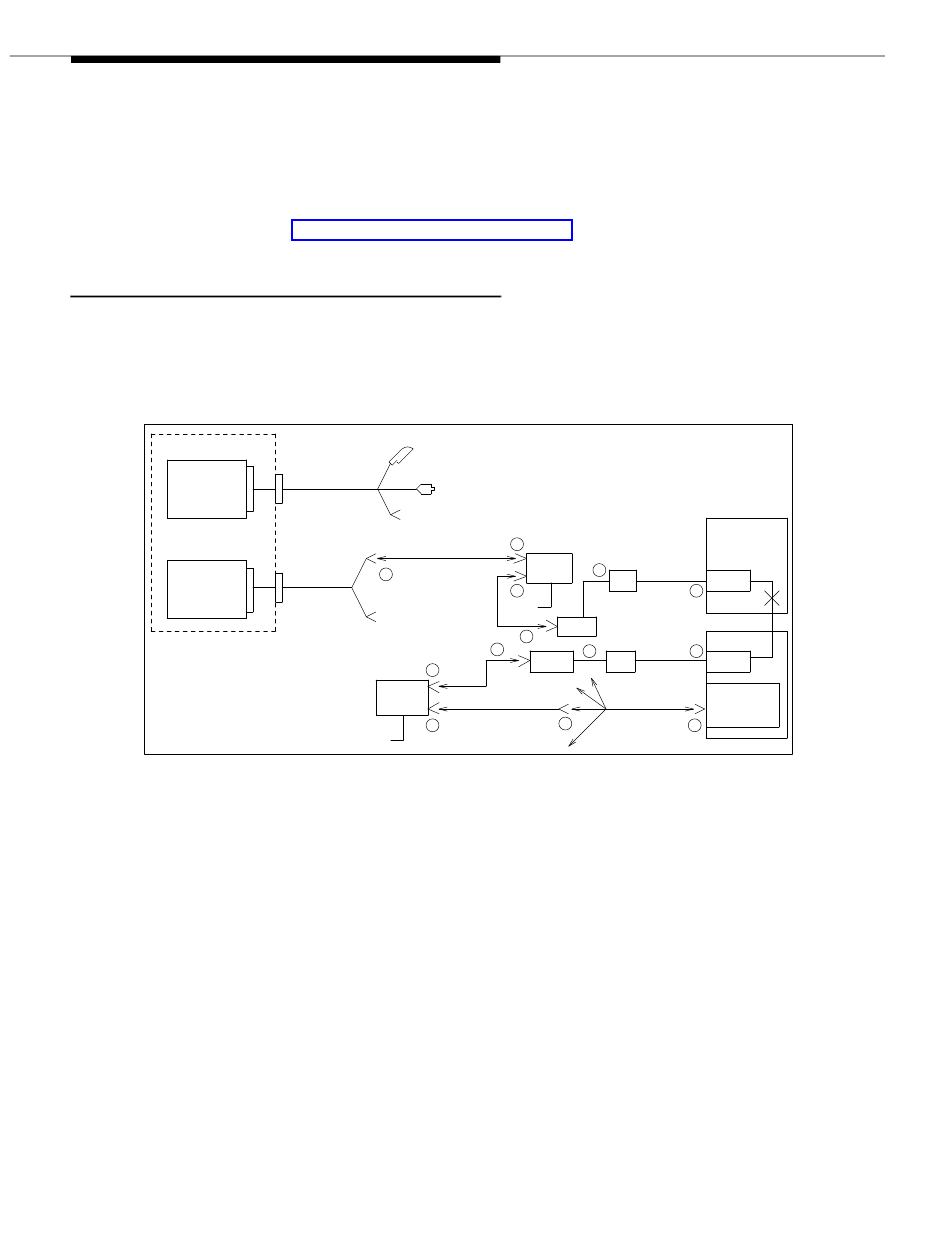

Refer to Figure 2-16, Connecting the Control Link Cable to a TN577 via MPDMs,
when performing this task.
SWITCH
DEFINITY AUDIX
ALARM
BOARD
DEFINITY AUDIX
MULTI-
FUNCTION
BOARD
Figure 2-16. Connecting the Control Link Cable to a TN577 via MPDMs
1. Attach one end of the Group 311 cable to the RS-232C connector labeled
PORT B on the MFB Y-cable (labeled 1). (The MFB Y-cable is connected
to the fourth slot of the five DEFINITY AUDIX system slots.)
2. Attach the other end of the Group 311 cable to the RS-232C connector of
the MPDM (labeled 2).
3. Attach one end of the D8W-87 (4-pair) modular cord to the modular jack
on the MPDM (labeled 3).
4. Attach the other end of the D8W-87 modular cord to the 103A adapter with
a 3-pair cord (labeled 4).
5. Attach a 3-pair cord from the 103A adapter to the cross-connect field
(labeled 5).
