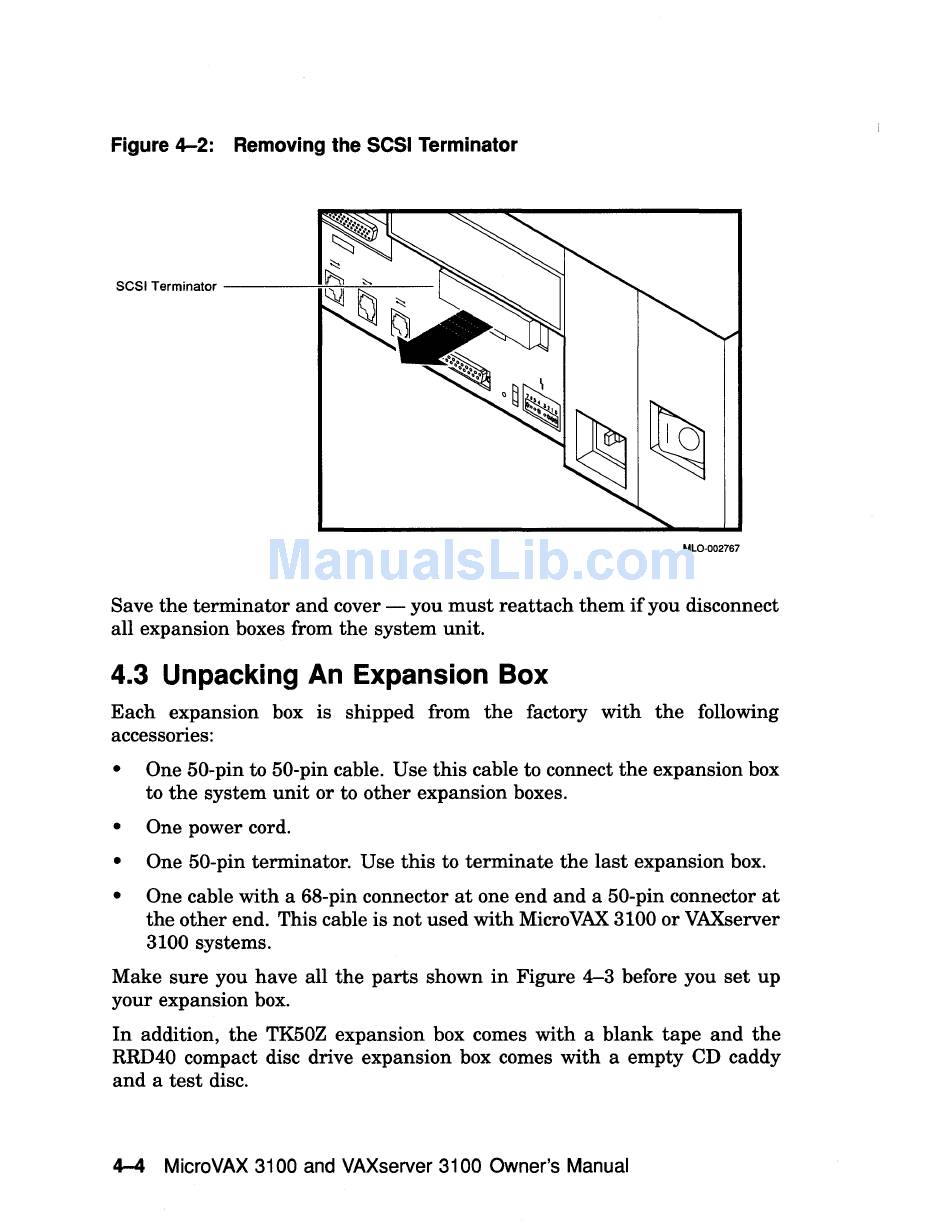

Figure 4-2: Removing the SCSI Terminator
SCSI Terminator ----~-';i--;:~--
MLO-0027S7
Save the terminator and cover - you must reattach them if you disconnect
all expansion boxes from the system unit.
4.3 Unpacking An Expansion Box
Each expansion box is shipped from the factory with the following
accessories:
• One 50-pin to 50-pin cable. Use this cable to connect the expansion box
to the system unit or to other expansion boxes.
• One power cord.
• One 50-pin terminator. Use this to terminate the last expansion box.
• One cable with a 68-pin connector at one end and a 50-pin connector at
the other end. This cable is not used with MicroVAX 3100 or VAXserver
3100 systems.
Make sure you have all the parts shown in Figure 4-3 before you set up
your expansion box.
In addition, the TK50Z expansion box comes with a blank tape and the
RRD40 compact disc drive expansion box comes with a empty CD caddy
and a test disc.
4-4
MicroVAX 3100 and VAXserver 3100 Owner's Manual
