To place a compact disc into a caddy, perform the following steps:
1.
Hold the disc with your free hand. Position the housing and disc as
shown in Figure F-6 (always work with the disc so the label is facing
down).
2. Position your thumb on the outer edge of the disc and your index finger
in the center hole of the disc.
3. Slip the disc into the housing. The inside of the housing is grooved to
accept the disc. Exert inward pressure to hold the disc in the housing.

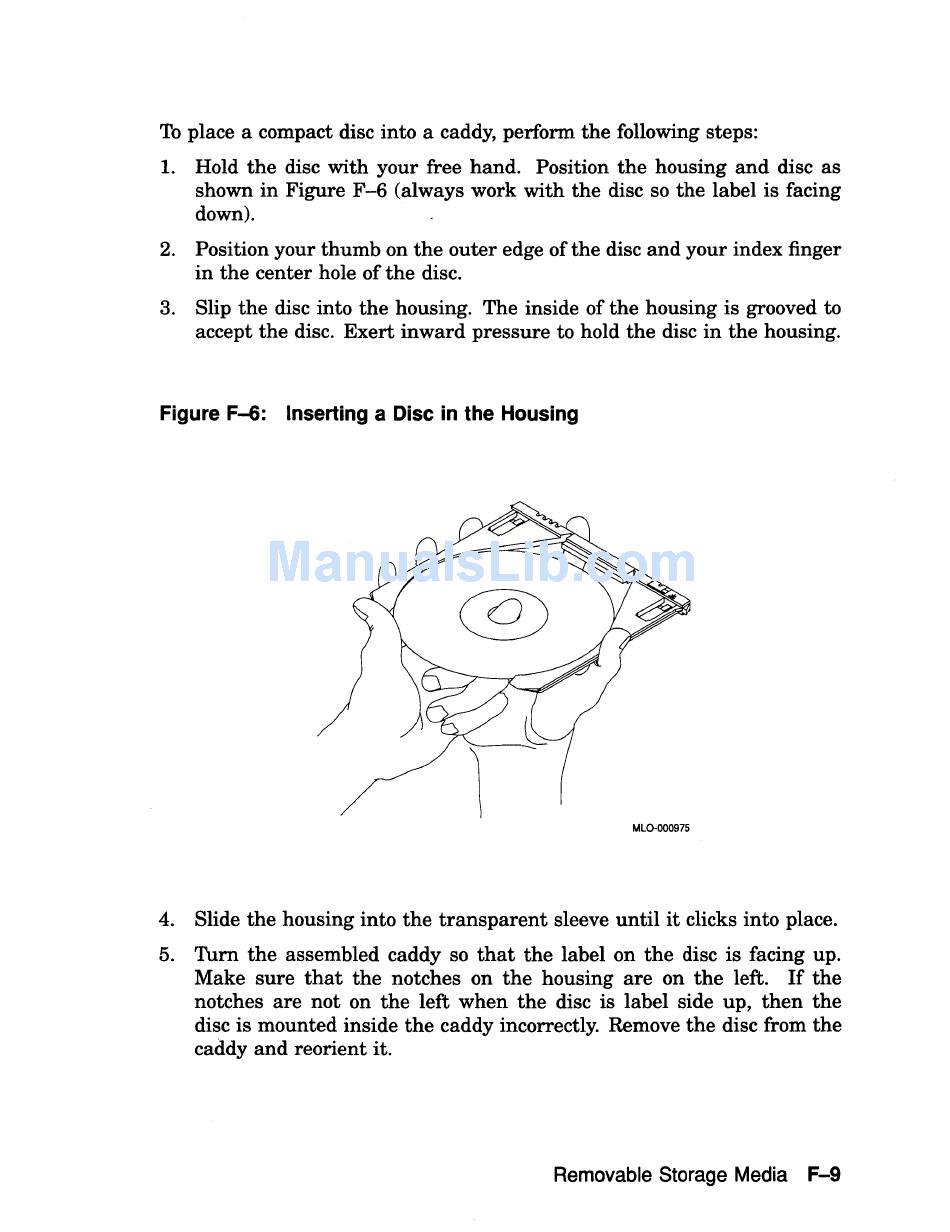

Figure F-6: Inserting a Disc in the Housing
MLO-00097S
4. Slide the housing into the transparent sleeve until it clicks into place.
5. Turn the assembled caddy so that the label on the disc is facing up.
Make sure that the notches on the housing are on the left. If the
notches are not on the left when the disc is label side up, then the
disc is mounted inside the caddy incorrectly. Remove the disc from the
caddy and reorient it.
