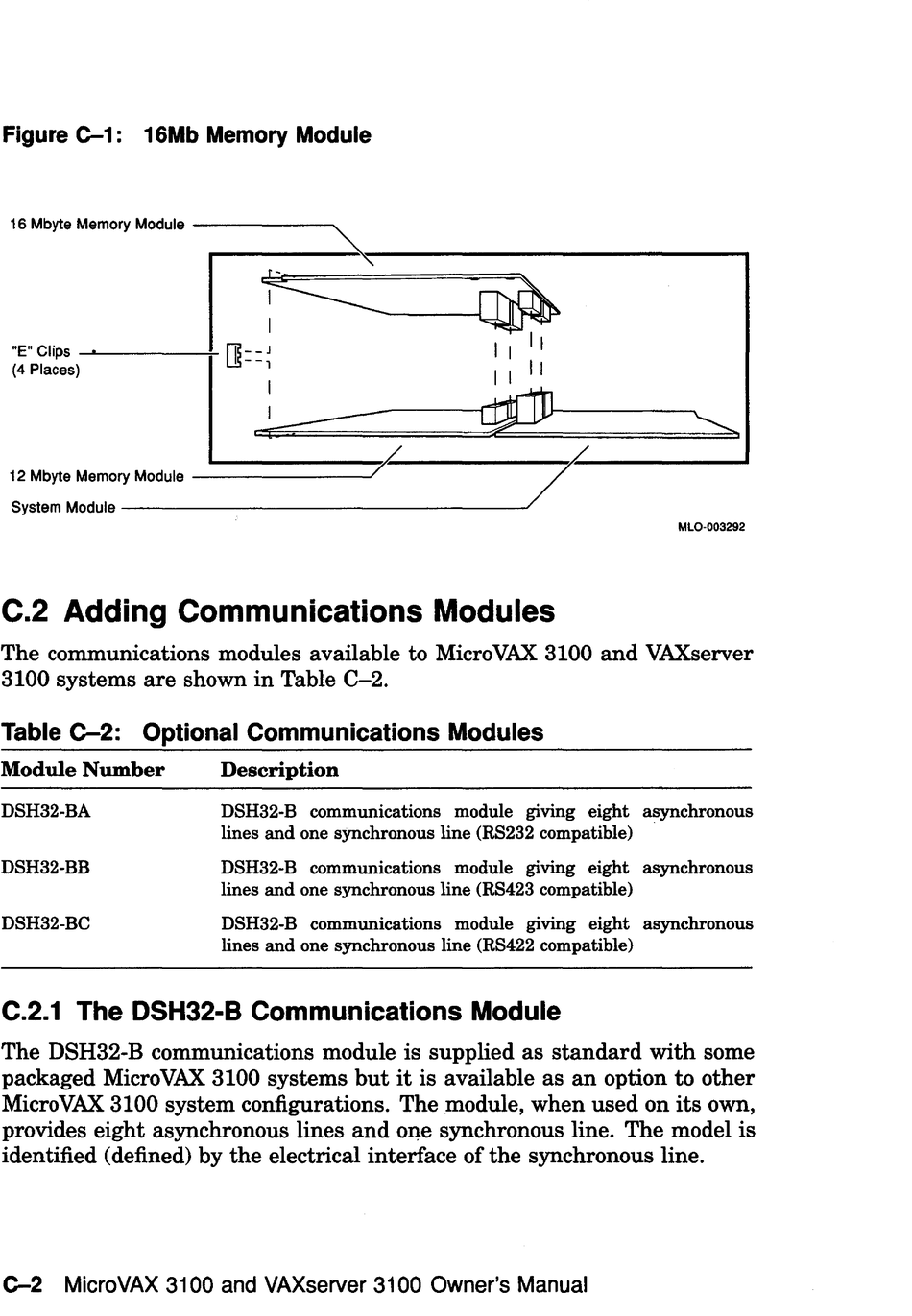

Figure C-1: 16Mb Memory Module
16 Mbyte Memory Module - - - - -_____
""~--------------
......
I
tc:=::: __
~
"E"Clips
- - - " - - - - - _ f _
me:;
I I II
(4 Places)
I
I
I
I
~ gJfPl-------~
12 Mbyte Memory Module _ _ _ _ _ _
--J/_ /
System Module - - - - - - - - - - - - - - - - - - ' ,
MLO-003292
C.2 Adding Communications Modules
The communications modules available to MicroVAX 3100 and VAXserver
3100 systems are shown in Table C-2.
Table C-2: Optional Communications Modules
Module Number
DSH32-BA
DSH32-BB
DSH32-BC
Description
DSH32-B communications module giving eight asynchronous
lines and one synchronous line (RS232 compatible)
DSH32-B communications module giving eight asynchronous
lines and one synchronous line (RS423 compatible)
DSH32-B communications module giving eight asynchronous
lines and one synchronous line (RS422 compatible)
C.2.1 The DSH32-B Communications Module
The DSH32- B communications module is supplied as standard with some
packaged MicroVAX 3100 systems but it is available as an option to other
MicroVAX 3100 system configurations. The module, when used on its own,
provides eight asynchronous lines and one synchronous line. The model is
identified (defined) by the electrical interface of the synchronous line.
C-2 MicroVAX 3100 and VAXserver 3100 Owner's Manual
