5. If a connection is not established, the following is displayed:
?
84 FAIL
»>
5.4.4 Connecting a Transceiver Cable to Your System
A transceiver cable is the physical connection between a standard Ethernet
network interface and a MicroVAX 3100 or VAXserver 3100 system. You
use a transceiver cable when you want to connect your system to an H4000
transceiver or DELNI which is attached to the standard Ethernet cable. To
connect a transceiver cable to your system:
1. Set the system unit on/off switch to off (0).
2. Attach the 15-pin connector on the standard Ethernet transceiver cable
to the back of the system unit.
3. Use a screwdriver to move the sliding lock (part of standard Ethernet
connector) and make the standard Ethernet connection secure.

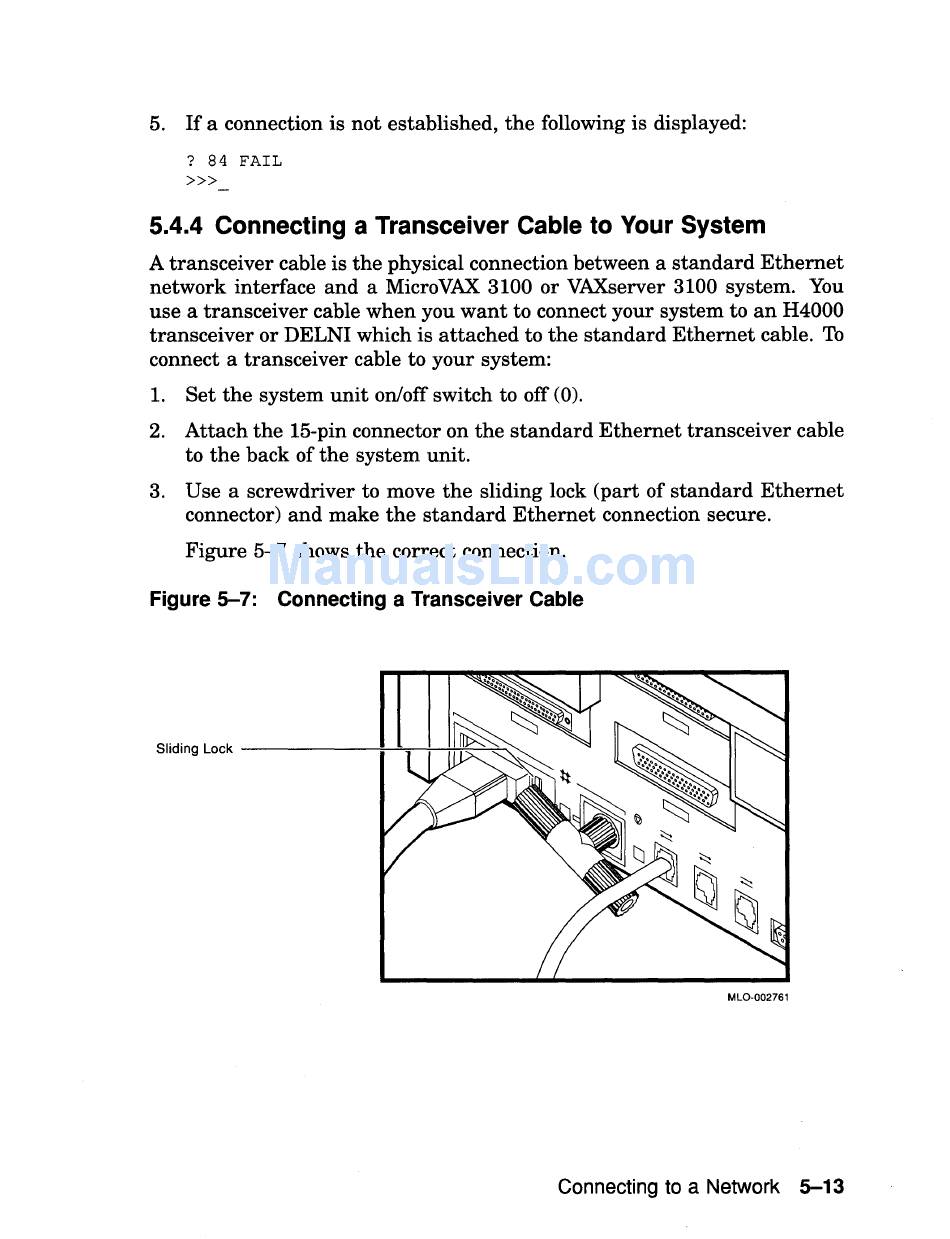

Figure 5-7 shows the correct connection.
Figure 5-7: Connecting a Transceiver Cable
Sliding Lock --------;~___+_-*~~
MLO-002761
Connecting to a Network
5-13
