Verifying Your Thinwire Ethernet Network Installation - DEC MicroVAX 3100 Owner's Manual

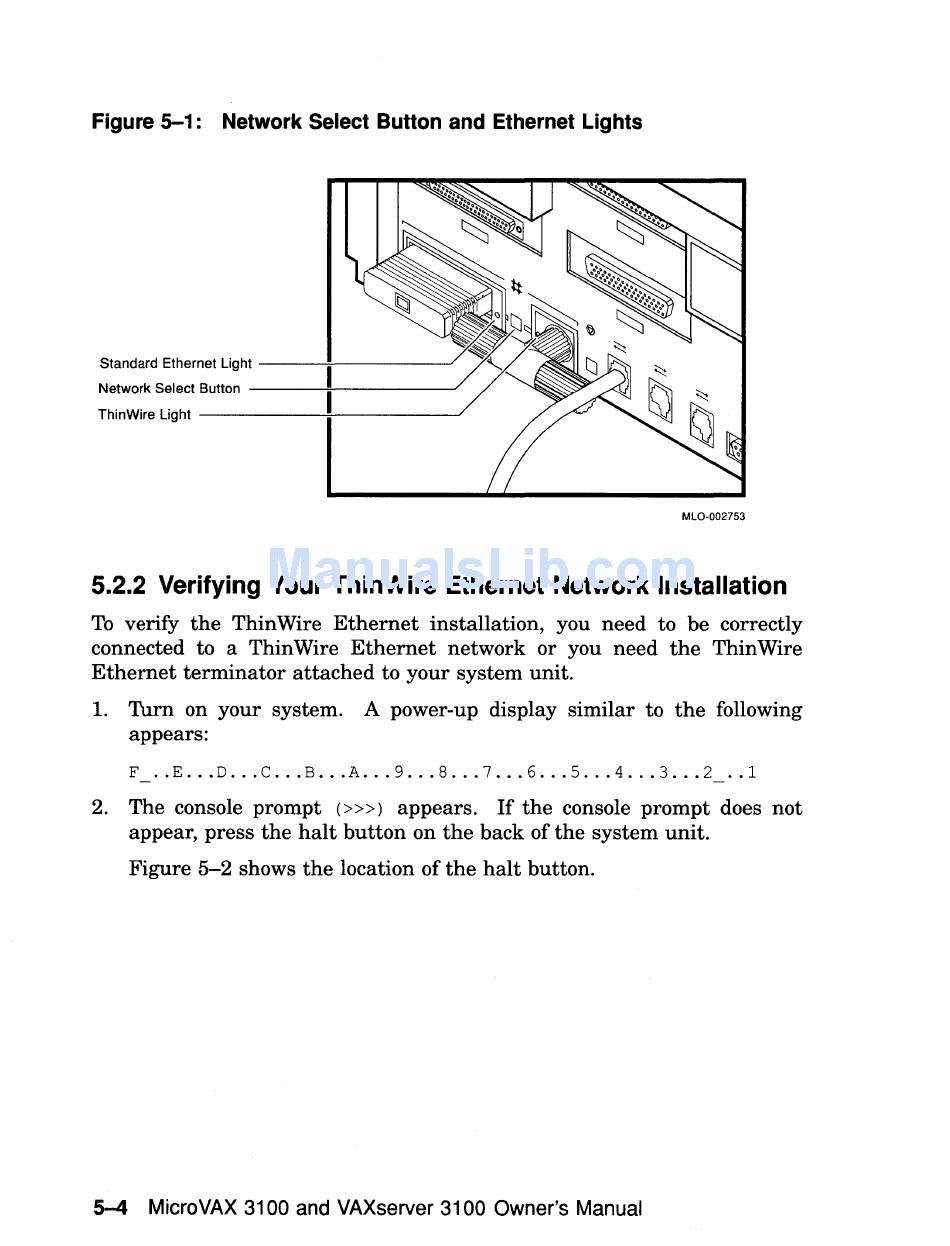

Figure 5-1 : Network Select Button and Ethernet Lights
Standard Ethernet Light - - - - - ; - - - - - - - '
Network Select Button
- - - + - - - - - - - - - '
ThinWire Light - - - - - - ; - - - - - - - /
MlO-002753
5.2.2 Verifying Your ThinWire Ethernet Network Installation
To verify the Thin Wire Ethernet installation, you need to be correctly
connected to a Thin Wire Ethernet network or you need the Thin Wire
Ethernet terminator attached to your system unit.
1. Turn on your system. A power-up display similar to the following
appears:
F .. E ••• D •.• C ..• B ••• A •.• 9 .•• 8 ••• 7 ••. 6 ..• S ... 4 ... 3 ..• 2 •• 1
2. The console prompt
(»»
appears. If the console prompt does not
appear, press the halt button on the back of the system unit.
Figure 5-2 shows the location of the halt button.
5-4 MicroVAX 3100 and VAXserver 3100 Owner's Manual
