SCSI-B 1C1C.0001 V1.3
FFFFFF05 00000001 00000001 00000001 05000001 01000000 FFFFFF03 FFFFFF05
• • • • • 6) • •
• SCSI ID 0 - open
• SCSI ID 1 - RZ55
• SCSI ID 2 - RZ23
• SCSI ID 3 - RZ23
• SCSI ID 4 - RRD40
6)
SCSI ID 5 - TK50Z
• SCSI ID 6 - SCSI-B controller
• SCSI ID 7 - Reserved for highest priority device
If you are adding a second TK50Z, you must change the. SCSI ID to 0 or
any other open ID on SCSI-B bus. Each device on the bus must have a
unique SCSI ID. For SCSI ID 0, set the switches to the following positions
(left to right): up, up, up. See Figure 4-14.

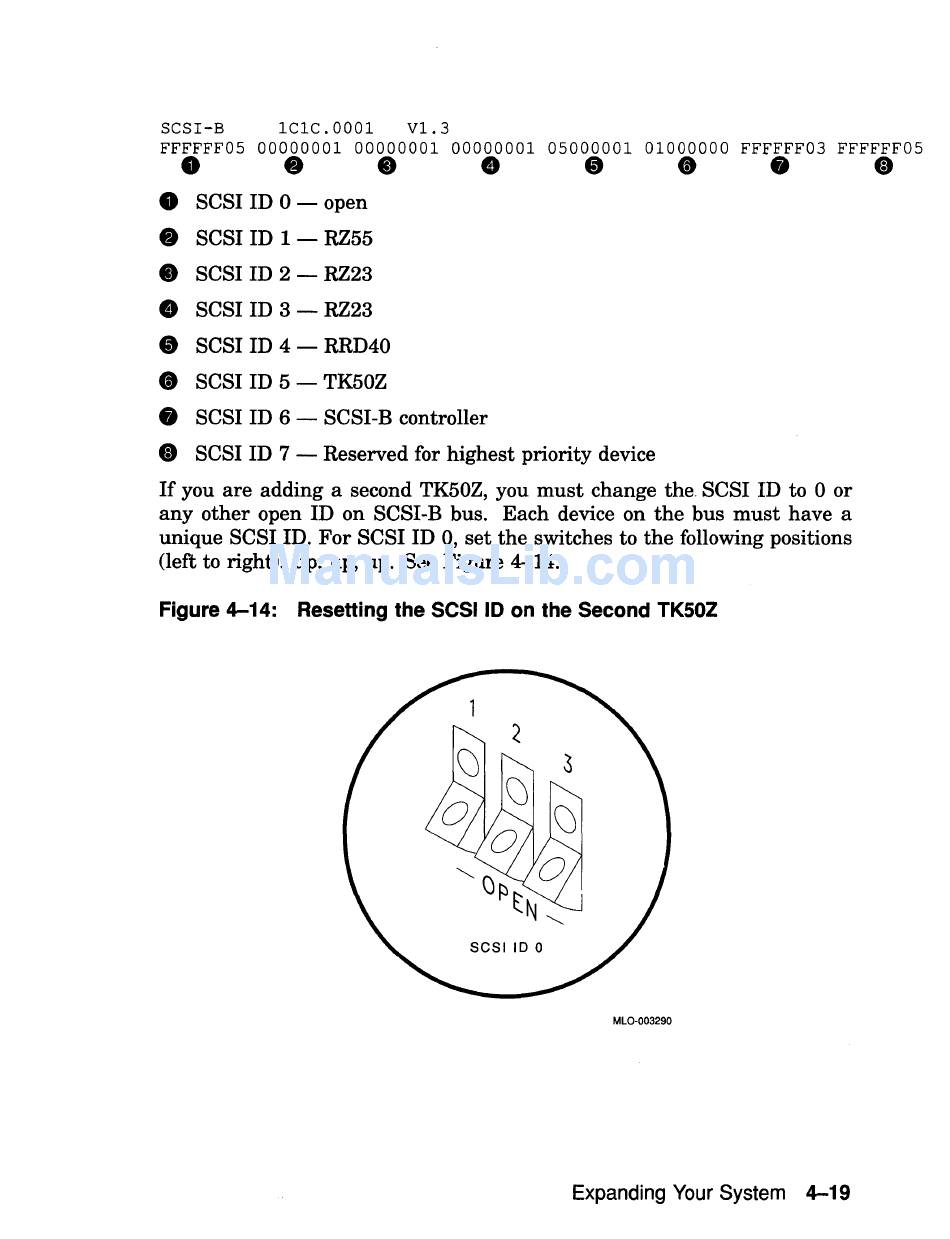

Figure 4-14: Resetting the SCSIID on the Second TK50Z
MLO-003290
Expanding Your System 4-19
