SDM-9000 Satellite Modem

2.4 External Connectors

When a breakout panel is not required, the external modem connections between the
modem and other equipment are made through several rear panel connectors. These
connectors are shown in Figure 2-2, and their locations are listed in Table 2-1. The
connectors are described in the following paragraphs.
When a B141-1 breakout panel is required, refer to the B141-1 Breakout Panel
Installation and Operation Manual for connector information.
Note: In order to meet the European EMC Directive (EN55022, EN50082-1), properly
shielded cables for DATA I/O are required. These cables must be double-shielded from
end to end, ensuring a continuous ground shield.
TX/IF OUTPUT
RX/IF INPUT
RECEIVE DATA
SEND DATA
EXT CLK
REMOTE
FAULTS
DATA I/O
AUX1
ALARMS
Rev. 4

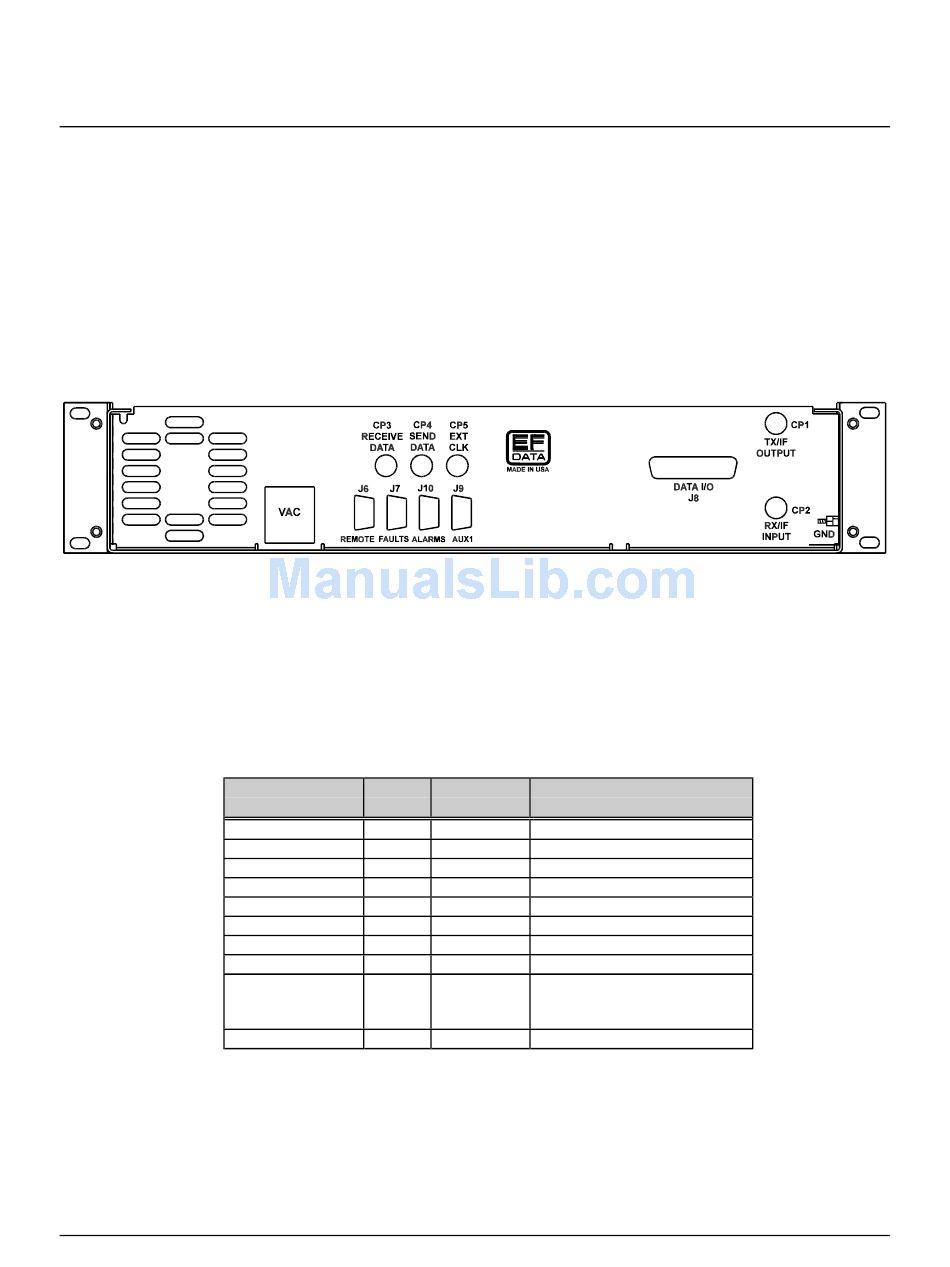

Figure 2-2. SDM-9000 Rear Panel View

Table 2-1. Modem Rear Panel Connectors

Name Ref. Connector
Desig.
CP1 BNC
CP2 BNC
CP3 BNC
CP4 BNC
CP5 BNC
J6 9-pin D
J7 9-pin D
J8 50-pin D
J9 9-pin D
J10 9-pin D
Function
Type
RF output
RF input
RX terrestrial data input
TX terrestrial data input
External clock input
Remote interface
Form C fault relay contacts
Data I/O (ESC)
TTL faults
External reference
AGC output
Form C alarm relay contacts
Installation
2–5
