Maintenance

6.1.4 Test Points

This section lists the interface, modulator, and demodulator PCB test points that can be
accessed from the front panel. The list includes a signal description under normal
operating conditions.

6.1.4.1 Interface PCB

Refer to Figure 6-5 for G.703, ECL, and MIL-STD-188 test point locations.
ECL/MIL-
STD-188
(AS/4477)
6–10
Test Points
G.703
(AS/3971,
AS/5618)
TP12
TP6, 11
GND
Ground
TP14
TP3
RX MFS
Receive Sub-Frame Sync (overhead only)
TP11
TP8
TX MFS
Transmit Sub-Frame Sync (overhead only)

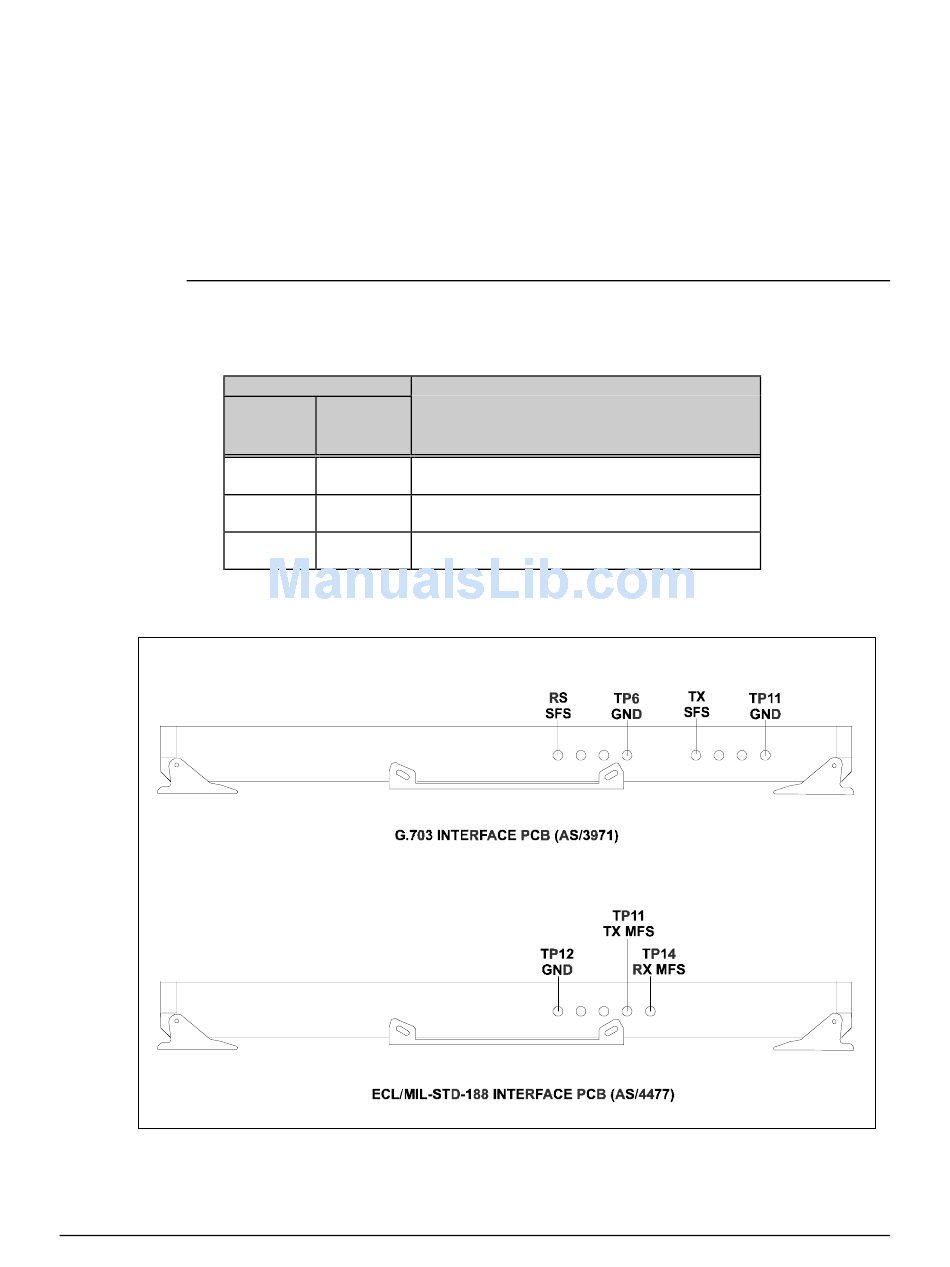

Figure 6-5. Interface PCB Test Points

SDM-9000 Satellite Modem
Signal Name
Rev. 4
