▼ Install the Snap-In Slide Rail
Assemblies
1. Pull both mounting brackets completely out of their respective slide rails.

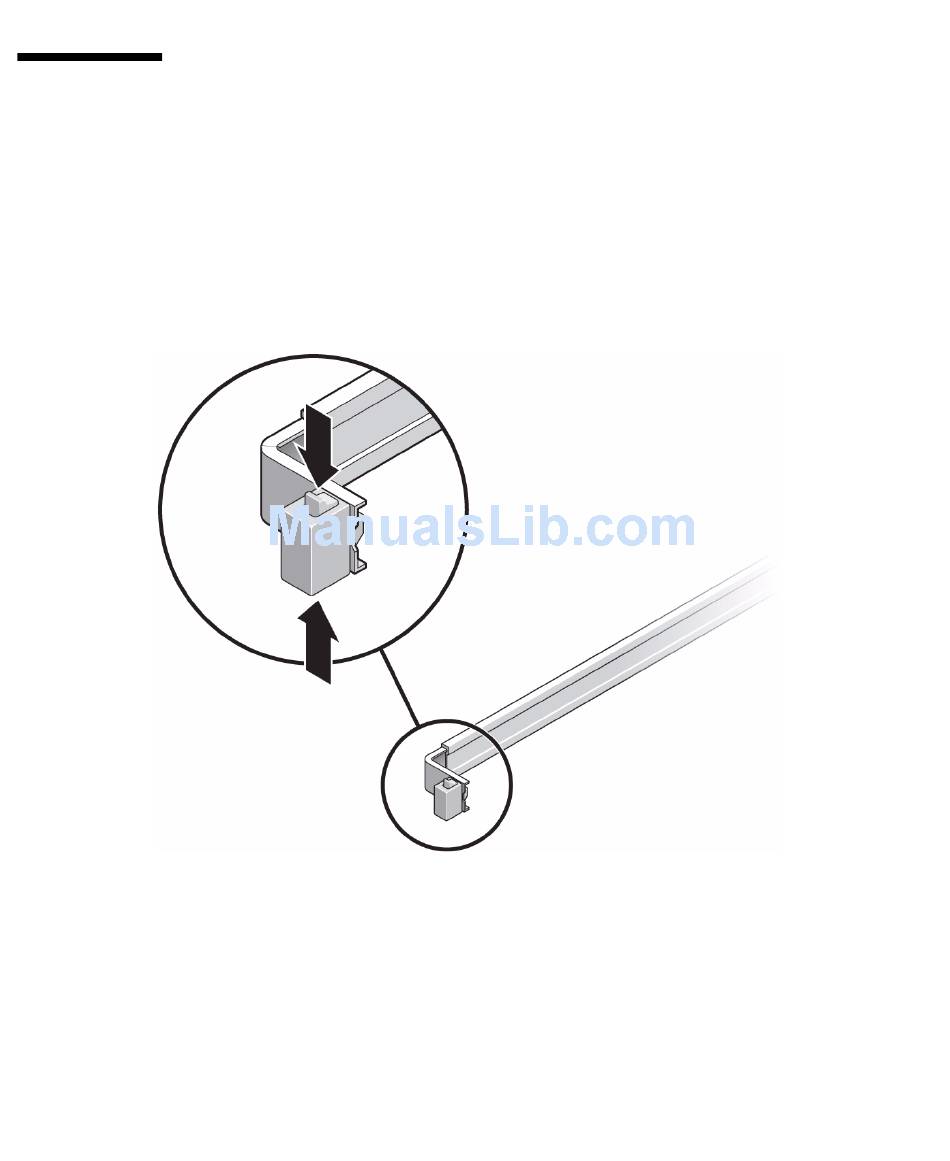

a. Simultaneously press and hold the upper and lower lock buttons of the slide
FIGURE:
b. Pull the mounting bracket out until it stops.
c. Slide the mounting bracket release button to the left, then slide the mounting
34
SPARC T3-1 Server Installation Guide • March 2012
rail lock.
Unlocking the Express Rail Slide Rail Assembly
bracket completely out of the slide rail.
