Both kit types consist of a pair of slide rails that attach to the rack corner posts and a
pair of mounting brackets that attach to the server chassis. The diffence between
them is that the screw-mount slide rails are attached to the rack posts using screws
and the snap-in rails are attached with screwless clips.
Slide-Rail Assembly Details for the Screw-Mount
Rack Mount Kit
Each screw-mount slide rail assembly consists of a three-section slide rail and a
removable mounting bracket. These components can be installed on either side of the
chassis.
FIGURE:
Figure Legend
The middle and rear sections have holes for attaching to the rack posts. They
■
adjust to fit rack depths from 24 in. (61 cm) to 36.5 in. (93 cm).
The front section extends out of the middle section, which allows the server to be
■
postioned far enough out of the rack for many service operationsto be performed.
24 SPARC T3-1 Server Installation Guide • March 2012

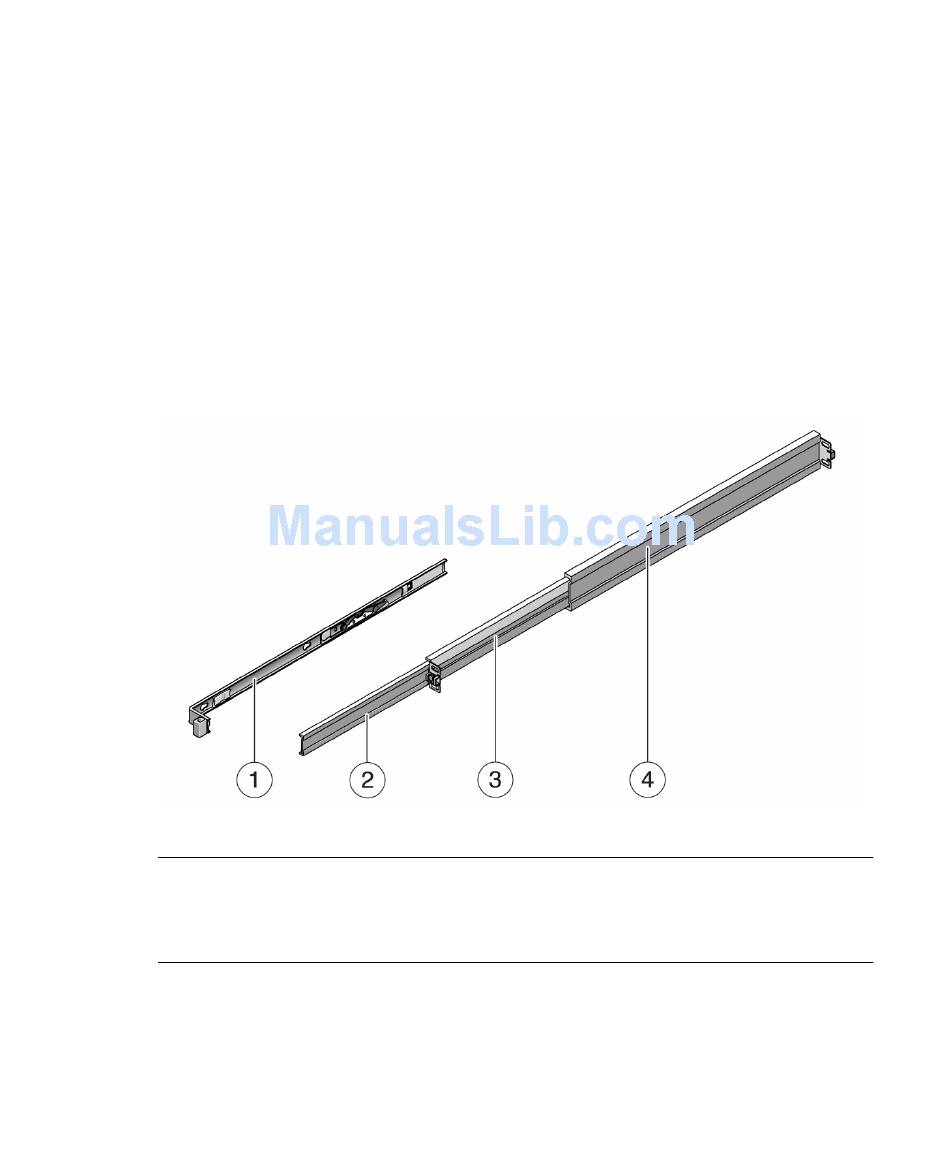

Sections of the Screw-Mount Slide Rail Assembly
1 Mounting bracket
2 Front section
3 Middle section
4 Rear section
