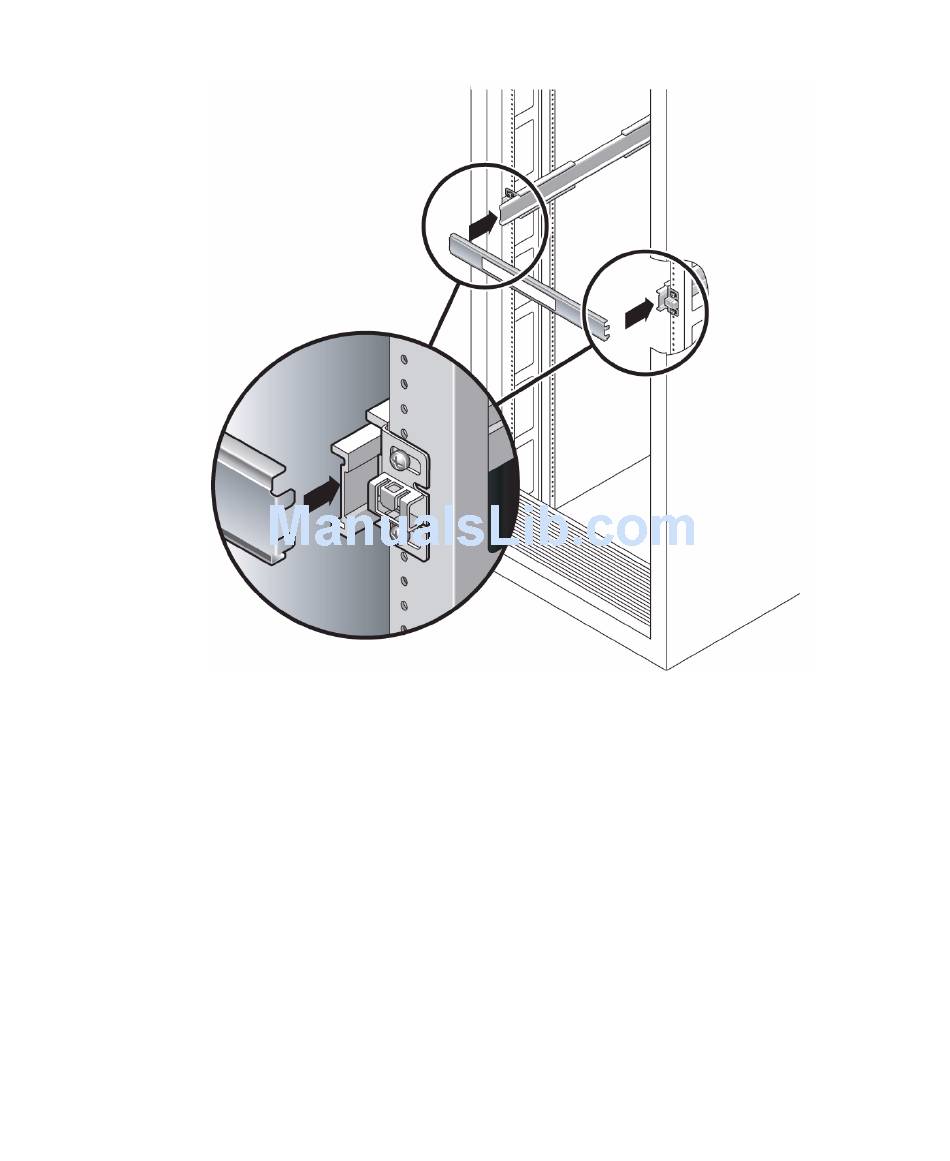

Using the Slide Rail Spacing Tool to Adjust the Distance Between the Slide Rails
FIGURE:
b. Insert the right side of the tool into the front end of the right rail.
c. Slide the end of the rail to the right or left as needed to allow the ends of the
tool to enter the ends of both rails.
The distance between the rails is now equal to the width of the server with
mounting brackets.
d. Tighten the screws to lock the ends of the rails in place.
e. At the rear of the rack, repeat
rails.
Related Information
"Slide Rail Assembly Overview" on page 23
■
Step a through Step d for the rear ends of the
Installing the Server 33
