Slide Rail Assembly Details For The Snap-In Rack Mount Kit - Sun Oracle SPARC T3-1 Installation Manual

Slide Rail Assembly Details for the Snap-In Rack
Mount Kit
Each snap-in slide rail assembly consists of a three-section slide rail and a removable
mounting bracket. The slide rail attaches to the rack posts. The mounting bracket
attaches to the server chassis.
FIGURE:
Figure Legend
1
2
3
4
The slide rails adjust to fit rack depths from 24 in. (61 cm) to 36.5 in. (93 cm). The
■
middle and rear sections of the slide rails have holes for mounting the rail to the
rack posts.
The front section extends out of the middle section, which allows the server to be
■
postioned far enough out of the rack for many service operationsto be performed.
The removable mounting bracket slides 14.5 in. (37 cm) out of the slide rail, then
■
locks in place. If you unlock the mounting bracket at this point, it slides an
additional 14.5 in. (37 cm) before separating from the slide rail.
There are six locks in a slide rail assembly. Four are on the mounting bracket. Two
locks are on the slide rail.
26 SPARC T3-1 Server Installation Guide • March 2012

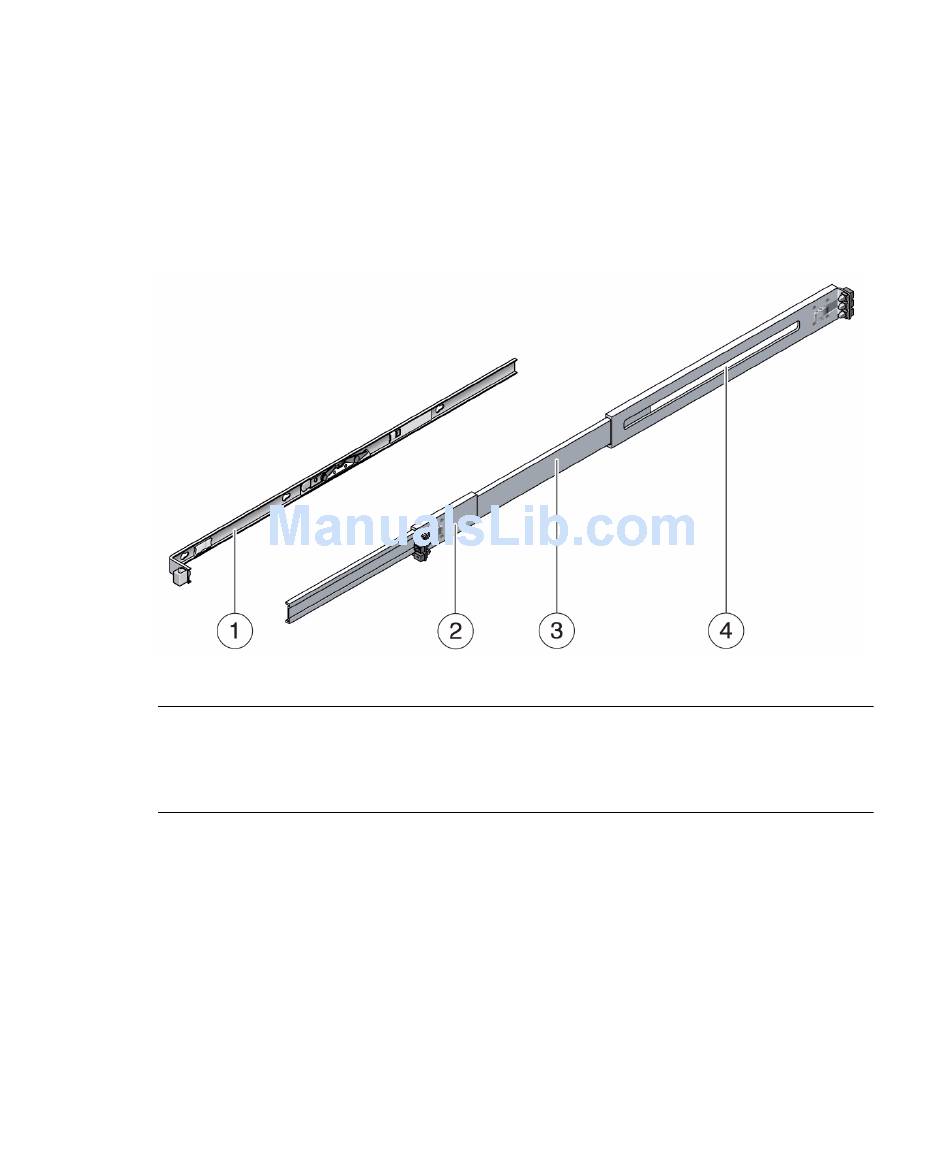

Sections of the Snap-In Slide Rail Assembly
Mounting bracket
Front section
Middle section
Rear section
